GEAR SHIFTING

VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

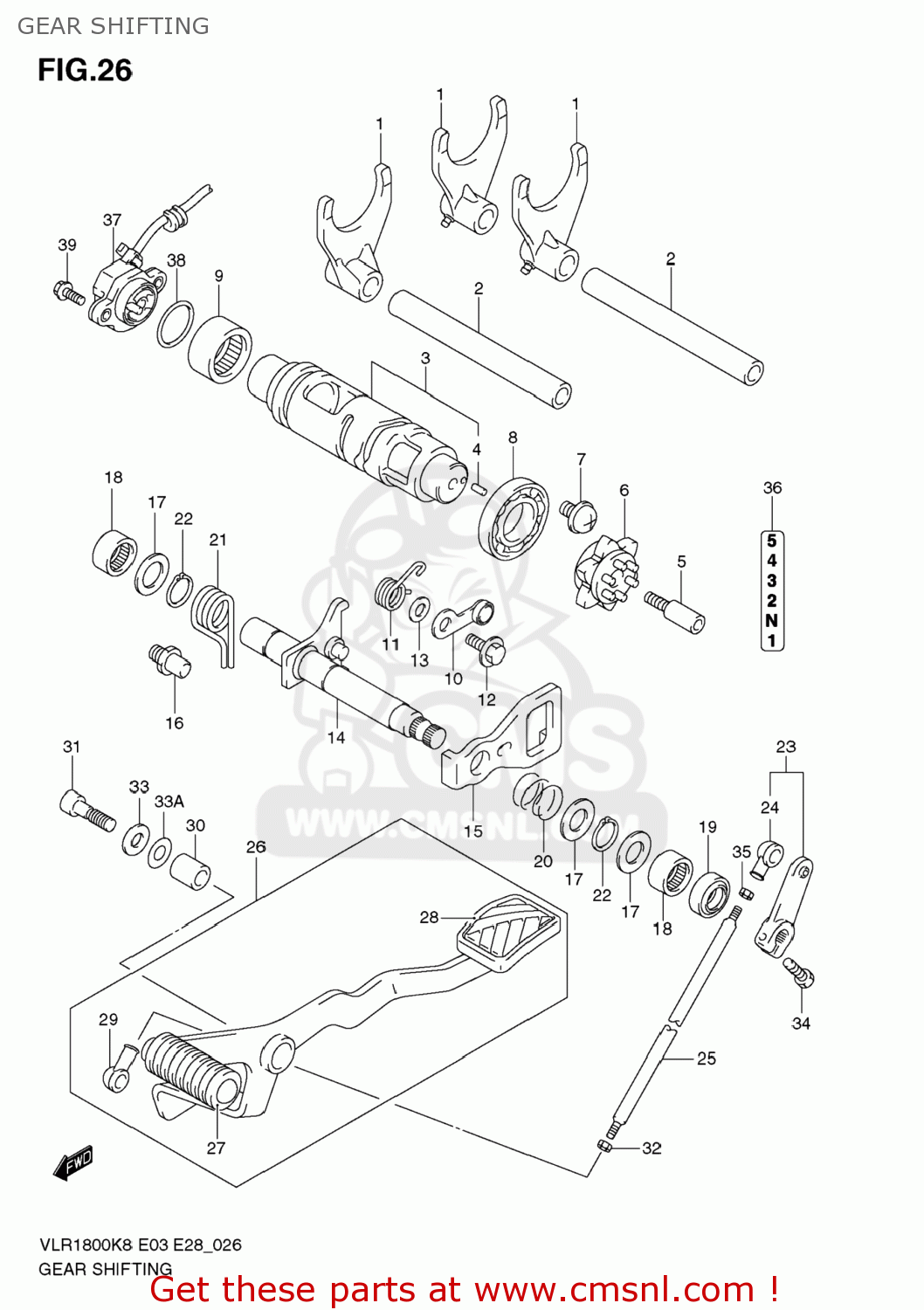

Gear shifting diagram VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

GEAR SHIFTING VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)
GEAR SHIFTING VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)
GEAR SHIFTING VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
2521135F11
ref: 1
FORK,GEAR SHIFT NO.1
2521135F11
€ 72.50
2
2541148G00
ref: 2
SHAFT,GEAR SHIFT FORK
€ 19.00
3
2531048G00
ref: 3
CAM,GEAR SHIFT
€ 138.50
4
0422104089
ref: 4
PIN
0422104089
€ 1.50
5
2531242F01
ref: 5
BOLT,GEAR SHIFT CAM PLATE
2531242F01
€ 5.50
6
2538113E30
ref: 6
PLATE,GEAR SHIFT CAM
2538113E30
€ 30.00
7
0913606147
ref: 7
SCREW(6X12)
0913606147
€ 2.00
8
0926225006
ref: 8
BEARING(25X47X8)
0926225006
€ 24.00
9
0926325018
ref: 9
BEARING(25X32X12)
0926325018
€ 17.50
10
2535006G00
ref: 10
STOPPER,SHIFT CAM
2535006G00
€ 19.00
11
2535545G00
ref: 11
SPRING,SHIFT CAM STOPPER
2535545G00
€ 3.50
12
0911106041
ref: 12
BOLT(6X14.3)
0911106041
€ 3.00
13
0821106141
ref: 13
WASHER
0821106141
€ 2.50
14
2551022H00
ref: 14
SHAFT,GEAR SHIFT
2551022H00
€ 102.50
15
2551206G10
ref: 15
PLATE,GEAR SHIFT CAM DRIVE
2551206G10
€ 20.00
16
2567101011
ref: 16
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
17
0918114167
ref: 17
SHIM(14X22X1)
0918114167
€ 3.50
18
0926314027
ref: 18
BEARING(14X20X12)
0926314027
€ 11.00
19
0928314006
ref: 19
SEAL,OIL(14X22X6)
0928314006
€ 6.50
20
0944017009
ref: 20
SPRING
0944017009
€ 1.50
21
0944420012
ref: 21
SPRING
0944420012
€ 11.00
22
083313114A
ref: 22
CIRCLIP
083313114A
€ 2.00
23
2552048G00
ref: 23
ARM,GEAR SHIFT LINK
€ 39.00
24
2552647000
ref: 24
COVER,DUST
2552647000
€ 3.50
25
2552522H00
ref: 25
ROD,GEAR SHIFT LINK
€ 15.50
26
2560022H00
ref: 26
LEVER ASSY,GEAR SHIFT
2560022H00
€ 139.50
27
2565210F00
ref: 27
RUBBER
2565210F00
€ 8.00
28
4975158J00
ref: 28
PAD,PEDAL
€ 3.50
29
2552647000
ref: 29
COVER,DUST
2552647000
€ 3.50
30
2561722H00
ref: 30
SPACER,GEAR SHIFT LEVER
€ 14.50
31
0910610068
ref: 31
BOLT(10X37)
0910610068
€ 2.50
32
0914006025
ref: 32
NUT
0914006025
€ 2.00
33
0916010093
ref: 33
WASHER(10.5X24X2.3)
0916010093
€ 2.00
33A
0916418009
ref: 33A
WASHER
0916418009
€ 1.50
34
015000620A
ref: 34
BOLT
015000620A
€ 2.00
35
0831000067
ref: 35
NUT
0831000067
€ 2.50
36
6839238B00
ref: 36
LABEL,GEAR SHIFT
€ 2.50
37
3773048G01
ref: 37
VERSN. SENSOR
€ 83.50
38
0928026005
ref: 38
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
39
071200516A
ref: 39
BOLT
071200516A
€ 1.50
