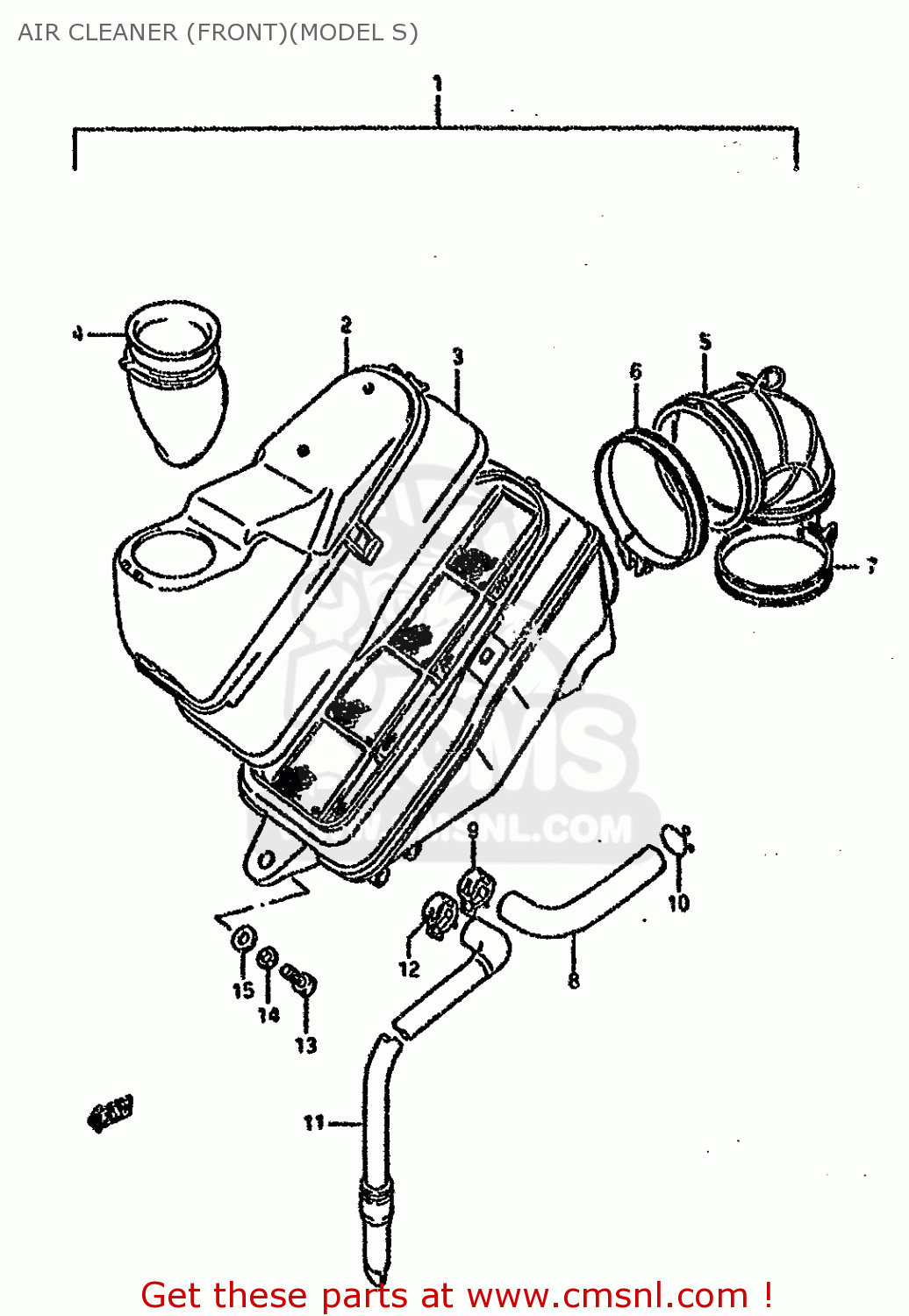

AIR CLEANER (FRONT)(MODEL S)

VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

Air cleaner (front)(model s) diagram VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

AIR CLEANER (FRONT)(MODEL S) VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

AIR CLEANER (FRONT)(MODEL S) VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

prices are in EUR

ref

part #

description

quantity

1

1370038B20
ref: 1

CLEANER ASSY,AIR FR

€ 201.50

2

1374038B01
ref: 2

CAP,AIR CLEANER FR

€ 27.00

3

1378138B10
ref: 3

FILTER,AIR FR

€ 11.00

4

1389138B00
ref: 4

TUBE,INLET

€ 16.50

5

1388138B00
ref: 5

TUBE,AIR CLEANER OUTLET

€ 25.50

6-1

0940272202
ref: 6-1

CLAMP

€ 7.50

6-2

0940272207
ref: 6-2
E34

CLAMP

€ 7.50

7

0940258208
ref: 7

CLAMP

€ 5.50

8

1385438B00
ref: 8

TUBE,BREATHER

€ 16.50

9

1382638B00
ref: 9

CLAMP

€ 1.50

10

0940114301
ref: 10

CLIP

€ 2.00

11

1387038B00
ref: 11

DRAIN TUBE

€ 23.50

12

0940113413
ref: 12

CLIP

€ 2.50

13

0150006207
ref: 13

BOLT

€ 2.00

14

0832101067
ref: 14

WASHER,LOCK

€ 2.50

15

0916006019
ref: 15

WASHER(6.5X16X1.2)

€ 1.50

12

0940113413
ref: 12
-13827-38800

CLIP

€ 2.50

13

0150006207
ref: 13

BOLT

€ 2.00

14

0832101067
ref: 14

WASHER,LOCK

€ 2.50

15

0916006019
ref: 15

WASHER(6.5X16X1.2)

€ 1.50
