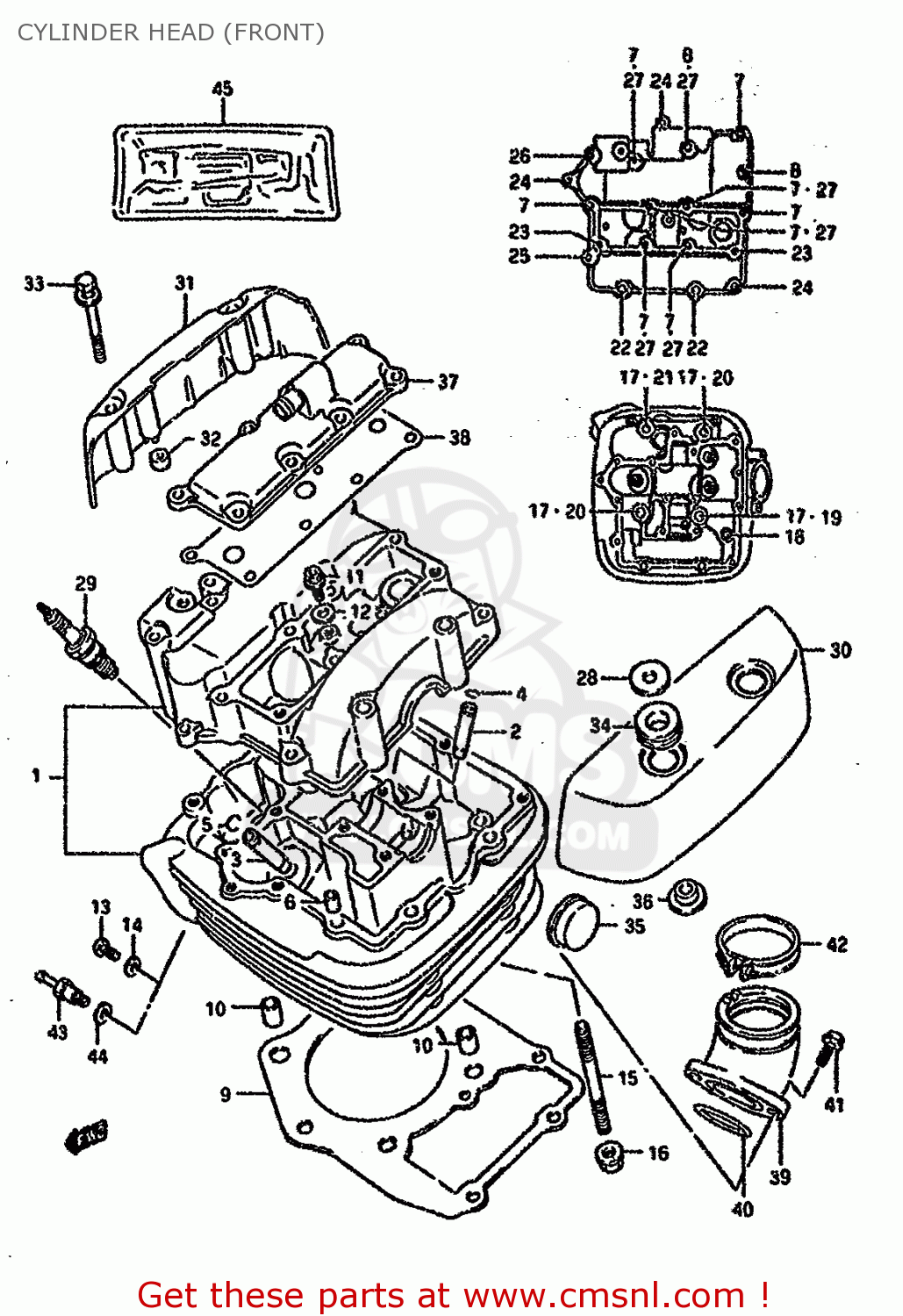

CYLINDER HEAD (FRONT)

ref

part #

description

quantity

1-1

1110138B00
ref: 1-1
MODEL H/J

HEAD ASSEMBLY,CYLINDER,FRONT

€ 1,012.00

1-2

1110138B10
ref: 1-2
MODEL K/L/M/N

HEAD ASSEMBLY,CYLINDER,FRONT

€ 1,012.00

1-3

1110138B20
ref: 1-3
MODEL P/R/S

HEAD ASSEMBLY,CYLINDER,FRONT

€ 1,012.00

2

1111538B70
ref: 2

GUIDE,INTAKE VALVE

€ 18.50

3

1111545740
ref: 3

GUIDE,INTAKE VALVE

€ 25.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0938110003
ref: 5

RING,SNAP

€ 2.50

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7-1

0910306111
ref: 7-1
MODEL H/J/K/L/M/N/P

BOLT

€ 1.50

7-2

0910306064
ref: 7-2
MODEL R/S

BOLT(6X60)

€ 2.50

8

0910306102
ref: 8

BOLT(6X55)

€ 2.50

9

1114138B00
ref: 9

GASKET,CYLINDER HEAD FR (NAS)

€ 49.00

10-1

0920613001
ref: 10-1
MODEL H/J/K/L/M/N/P

PIN

€ 2.50

10-2

0421113189
ref: 10-2
MODEL R/S

PIN

€ 2.50

11-1

0712006125
ref: 11-1
MODEL H/J/K/L/M/N/P

BOLT

€ 3.50

11-2

0712006127
ref: 11-2
MODEL R/S

BOLT

€ 3.00

12

0916806018
ref: 12

GASKET(6.2X13X1.2) (NAS)

€ 2.00

13

0211205087
ref: 13
MODEL H/J

SCREW

€ 2.00

14

0916805010
ref: 14
MODEL H/J

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

15

0910808142
ref: 15

BOLT,STUD

€ 3.00

16

0831610087
ref: 16

NUT

€ 2.50

17

0916010039
ref: 17

WASHER(10.5X22X2.3)

€ 2.50

18

0910308099
ref: 18

BOLT(8X70)

€ 6.00

19

0910310178
ref: 19

BOLT(10X180)

€ 12.50

20

0910310179
ref: 20

BOLT(10X190)

€ 12.50

21

0910310180
ref: 21

BOLT(10X200)

€ 10.50

22

0910308213
ref: 22

BOLT(8X268)

€ 22.50

23

0155006207
ref: 23

BOLT

€ 2.50

24

0155006307
ref: 24

BOLT

€ 2.00

25

0155006357
ref: 25

BOLT

€ 2.50

26

0155006707
ref: 26

BOLT

€ 3.00

27

0916806023
ref: 27

GASKET(5.8X13X1.2) (NAS)

€ 2.00

28

0916008098
ref: 28

WASHER (8.2X24X1.6)

€ 2.00

29-1

0948200334
ref: 29-1

PLUG,SPARK(DPR8EA-9)

€ 4.00

29-2

0948200335111
ref: 29-2

SPARK PLUG X24EPR-U9

€ 4.00

29-3

0948200352
ref: 29-3
OPT

SPARK PLUG DP7EA-9

€ 4.00

29-4

0948200353111
ref: 29-4
OPT

SPARK PLUG X22EP-U9

€ 0.00

29-5

0948200328
ref: 29-5
OPT

SPARK PLUG DP9EA-9

€ 4.00

29-6

0948200329111
ref: 29-6
OPT

SPARK PLUG X27EP-U9

€ 4.00

29-7

0948200354
ref: 29-7
0948200355

PLUG,SPARK(DPR7EA-9)

€ 4.00

29-8

0948200355111
ref: 29-8
OPT

SPARK PLUG X22EPR-U9

€ 4.00

29-9

0948200330
ref: 29-9
OPT

PLUG,SPARK(DPR9EA-9)

€ 4.00

29-10

0948200331111
ref: 29-10
OPT

SPARK PLUG X27EPR-U9

€ 4.00

30

1117138B00
ref: 30

CAP,CYLINDER HEAD COVER FL

€ 145.50

31

1117238B00
ref: 31

CAP,CYLINDER HEAD COVER FR

€ 146.50

32

1127324B00
ref: 32

CUSHION,R CAP

€ 4.00

33

0121406607
ref: 33

BOLT

€ 3.50

34

0932013015
ref: 34

CUSHION

€ 3.00

35

0924130008
ref: 35

PLUG(OD:30)

€ 7.00

36

0930108007
ref: 36

BUSH

€ 4.00

37-1

1118038B01
ref: 37-1
MODEL H/J/K/L/M/N

COVER COMP,BREATHER

€ 32.00

37-2

1118038B10
ref: 37-2
MODEL P/R/S

COVER,BREATHER

€ 32.00

38

1117738B01H17
ref: 38

GASKET,BREATHER COVER (NAS)

€ 19.00

39

1310138B00
ref: 39
13110-38800

PIPE ASSEMBLY,INTAKE,FRONT

€ 87.50

40

0928042003
ref: 40

O RING(D:2.4,ID:41.7)

€ 8.50

41-1

0151706164
ref: 41-1
MODEL H/J/K/L/N/N/P

BOLT

€ 2.50

41-2

0155006163
ref: 41-2
MODEL R/S

BOLT

€ 2.50

42-1

1317005A00
ref: 42-1
MODEL H/J/K/L/N/N/P

CLAMP,PIPE

€ 9.00

42-2

0940252501
ref: 42-2
MODEL R/S

CLAMP

€ 9.00

43

0936206002
ref: 43
MODEL K/L/M/N/P/R/S

BOLT UNION

€ 11.00

44

0916806018
ref: 44
MODEL K/L/M/N/P/R/S

GASKET(6.2X13X1.2) (NAS)

€ 2.00

45-1

1140038861
ref: 45-1
MODEL H/J/K/L/M/N/P/

GASKET SET (NAS)

€ 231.00

45-2

1140038862
ref: 45-2
MODEL S

GASKET SET (NAS)

€ 231.00
