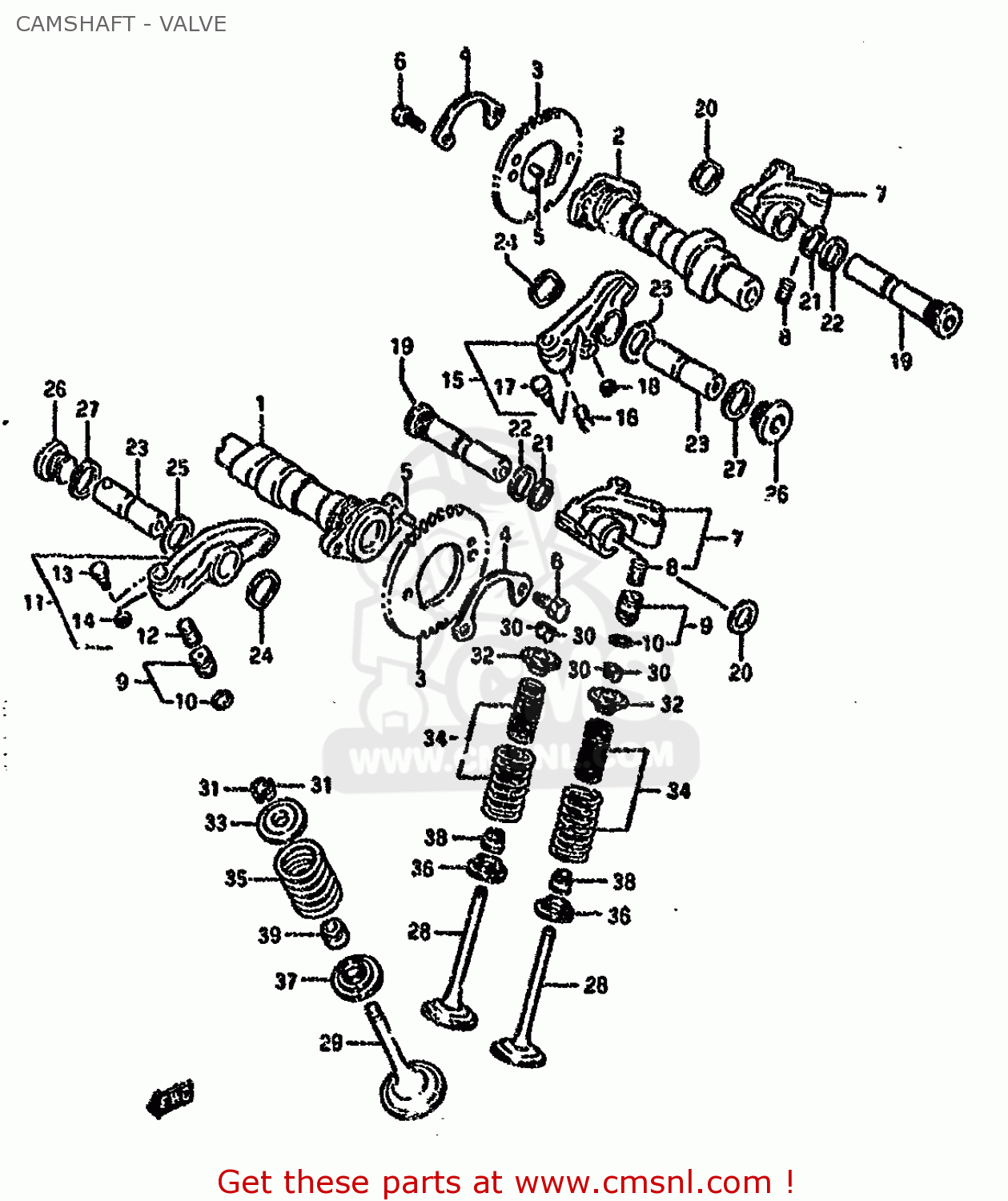

CAMSHAFT - VALVE - VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

ref

part #

description

quantity

1

1271138B00
ref: 1

CAMSHAFT,FR

€ 412.00

2

1271338B00
ref: 2

CAMSHAFT,RR

€ 181.50

3

1274138B00
ref: 3

SPROCKET,CAMSHAFT

€ 53.00

4

1274744000
ref: 4

WASHER,CAM CHAIN SPROCKET

€ 2.00

5

0422105109
ref: 5

PIN

€ 1.50

6

0911106027
ref: 6

BOLT(6X12.5)

€ 1.50

7

1284038B01
ref: 7

ARM,VALVE ROCKER INTAKE

€ 112.50

8

1286338B00
ref: 8

CHAMBER,VALVE LASH ADJUSTER

€ 8.50

9

1286038B00
ref: 9
-12860-388Z0

ADJUSTER,HYDRAULIC VALVE

€ 82.50

10

1286438B00
ref: 10

O-RING,ADJUSTER

€ 7.50

11

1285038B02
ref: 11

ARM,VALVE ROCKER FR EXHAUST

€ 100.50

12

1286338B00
ref: 12

CHAMBER,VALVE LASH ADJUSTER

€ 8.50

13

1284438B00
ref: 13

PIN,DECOMP

€ 16.00

14

0833211033
ref: 14

E RING

€ 1.50

15

1288038B01
ref: 15

ARM,VALVE ROCKER RR EXHAUST

€ 71.50

16

1286338B00
ref: 16

CHAMBER,VALVE LASH ADJUSTER

€ 8.50

17

1284438B00
ref: 17

PIN,DECOMP

€ 16.00

18

0833211033
ref: 18

E RING

€ 1.50

19

1286138B00
ref: 19

SHAFT,INTAKE VALVE ROCKER ARM

€ 50.50

20

0916414012
ref: 20

WASHER

€ 1.50

21

0821114201
ref: 21

WASHER

€ 2.50

22

0916816003
ref: 22

GASKET(16X22X2) (NAS)

€ 2.00

23

1287138B00
ref: 23

SHAFT,EXHAUST VALVE ROCKER ARM

€ 28.50

24

0916416003
ref: 24

WASHER

€ 2.50

25

0916016033
ref: 25

WASHER(16X26X1)

€ 3.50

26

0924818004
ref: 26

PLUG,18X11

€ 10.50

27

0916818003
ref: 27

GASKET(18X24.2X2) (NAS)

€ 2.00

28

1291138B00
ref: 28

VALVE,INTAKE

€ 81.50

29

1291238B00
ref: 29

VALVE,EXHAUST

€ 55.50

30

1293224400
ref: 30

COTTER,VALVE

€ 2.00

31

1293282000
ref: 31

COTTER,VALVE

€ 2.00

32

1293133200
ref: 32

RETAINER,VALVE SPRING

€ 5.50

33

1293145000
ref: 33

RETAINER,VALVE SPRING

€ 6.00

34

1292006B00
ref: 34

SPRING SET,VALVE

€ 14.00

35

1292244110
ref: 35

SPRING,VALVE OUTER

€ 11.00

36-1

1293333200
ref: 36-1
MODEL H/J/K/L/M/N/P

SEAT,VALVE SPRING

€ 4.50

36-2

1293333201
ref: 36-2
MODEL R/S

SEAT,VALVE SPRING

€ 4.50

37

1293345001
ref: 37

SEAT,VALVE SPRING

€ 5.50

38

0928905015
ref: 38
-09289-05003

SEAL,OIL(5.5X11X8.2)

€ 6.50

39

0928907002
ref: 39

SEAL,OIL(7X14.4X9)

€ 3.00
