STARTER CLUTCH

VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

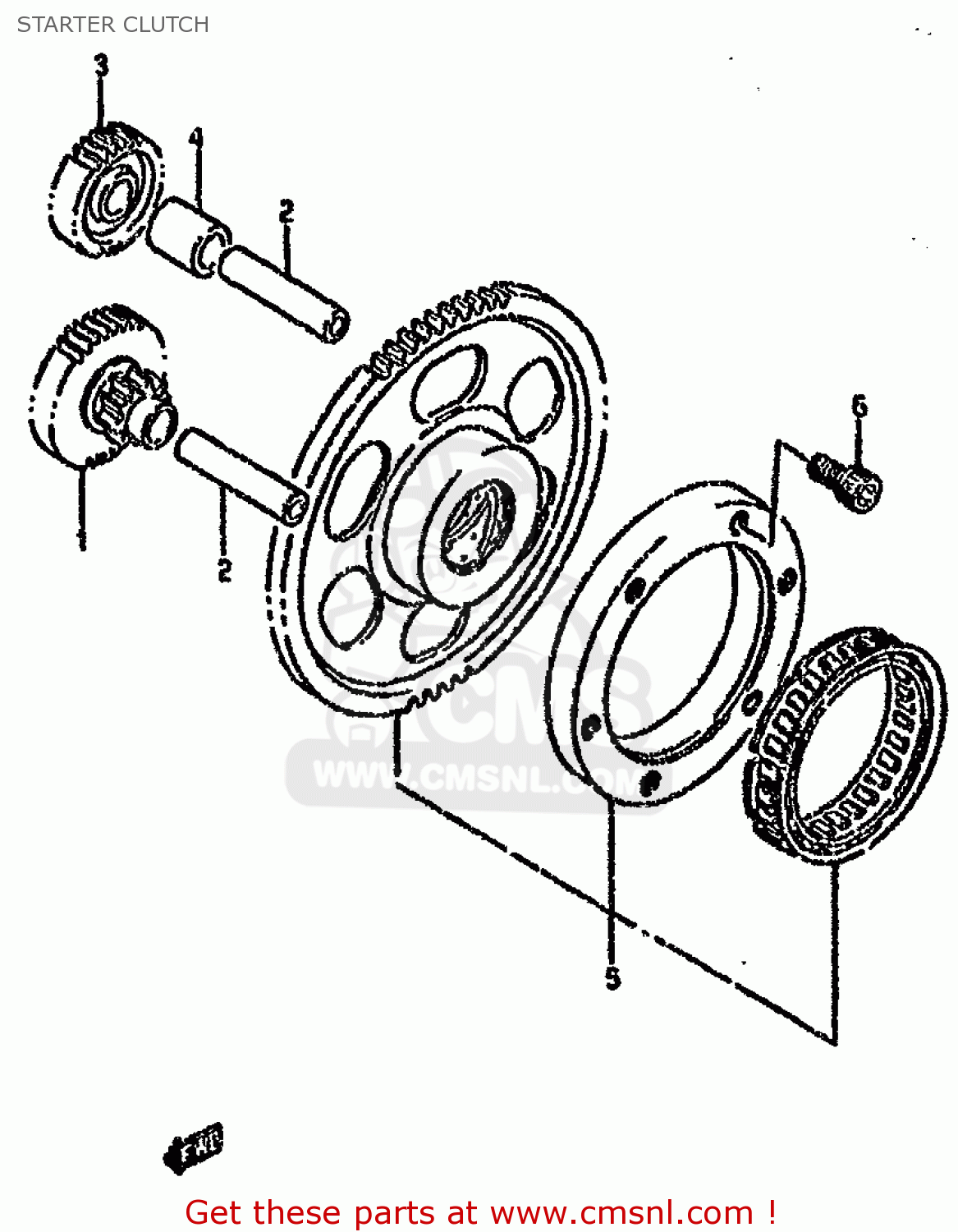

Starter clutch diagram VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

STARTER CLUTCH VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

STARTER CLUTCH VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

prices are in EUR

ref

part #

description

quantity

1

1261138B01
ref: 1

GEAR,STARTER IDLE NO.1

€ 84.00

2

0920611015
ref: 2

PIN(7X11X55)

€ 9.00

3

1261238B02
ref: 3

GEAR,STARTER IDLE NO.2

€ 57.50

4

0918011005
ref: 4

SPACER(11.2X17.5X22)

€ 7.50

5

1260038840
ref: 5

CLUTCH SET,STARTER

€ 363.00

6-1

0910608043
ref: 6-1
MODEL H/J/K/L/M/N/P/

BOLT

€ 3.00

6-2

0713008163
ref: 6-2
MODEL S

BOLT

€ 3.00
