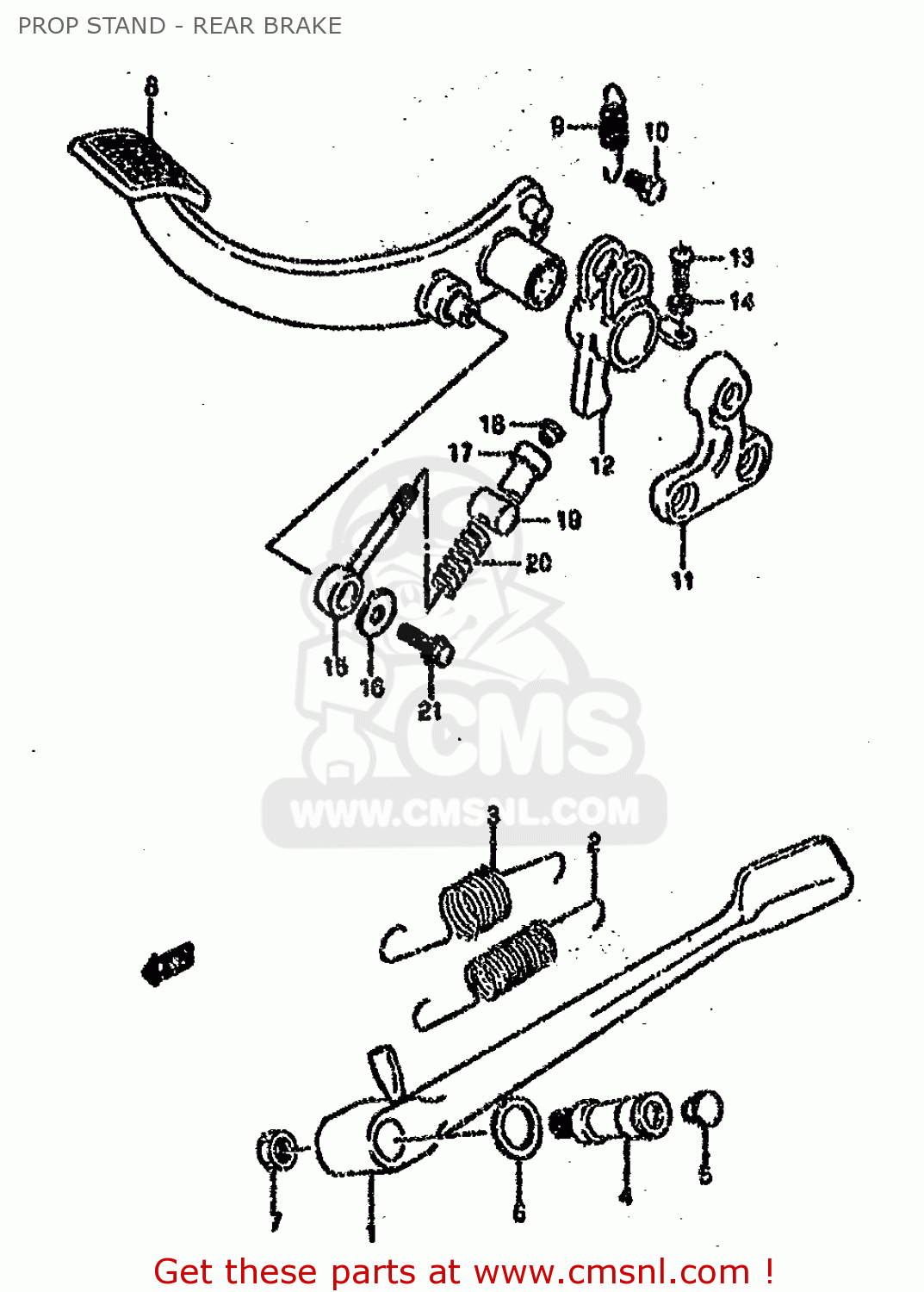

PROP STAND - REAR BRAKE - VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

ref

part #

description

quantity

1-1

4231038B00
ref: 1-1

STAND COMP,PROP

€ 129.00

1-2

4231038B90
ref: 1-2
MODEL J/K/L/M/N/P E1

STAND,PROP

€ 141.50

2

0944316014
ref: 2

SPRING

€ 8.50

3

0944322007
ref: 3

SPRING

€ 7.00

4

4234138B01
ref: 4

BOLT,PROP STAND

€ 9.00

5

0925008014
ref: 5

CAP(OD:12)

€ 3.50

6

0822115245
ref: 6

THRUST WASHER

€ 2.50

7-1

0831000107
ref: 7-1
MODEL H/{J/K/L/M/N/P

NUT

€ 2.50

7-2

0914010044
ref: 7-2
MODEL R/S

NUT

€ 2.50

8

4310038B00
ref: 8

PEDAL ASSY,BRAKE

€ 81.50

9

0944310033
ref: 9

SPRING

€ 3.50

10-1

0912806060
ref: 10-1
MODELH/J/K/L/M/N/P/R

BOLT L:10

€ 2.00

10-2

0912806044
ref: 10-2
MODEL S

SCREW(6X10)

€ 1.50

11

4351938B00
ref: 11

BRACKET,BRAKE PEDAL BOOT

€ 76.50

12

4312038B01
ref: 12

ARM,BRAKE PEDAL

€ 92.50

13

0912505070
ref: 13

SCREW(5X14)

€ 3.00

14-1

0831022058
ref: 14-1
MODEL H/J/K/L/M/N/P

NUT

€ 2.50

14-2

0914005007
ref: 14-2
MODEL R

NUT

€ 1.50

14-3

0831000057
ref: 14-3
MODEL S

NUT

€ 2.50

15

4327138B00
ref: 15

LINK,BRAKE PEDAL

€ 44.00

16-1

0916006046
ref: 16-1
MODEL H/J/K/L/M/N/P/

WASHER(6.5X20X1.5)

€ 2.00

16-2

0916006036
ref: 16-2
MODEL S

WASHER(6.5X18X1.5)

€ 1.50

17

4327238B00
ref: 17

NUT,BRAKE PEDAL LINK

€ 15.50

18

0925005008
ref: 18

CAP(OD:10)

€ 5.00

19

0920913008
ref: 19

PIN

€ 5.50

20

0944009029
ref: 20

SPRING

€ 4.00

21

0154706167
ref: 21

BOLT

€ 2.00

PROP STAND - REAR BRAKE

all assemblies
