HANDLEBAR (VS1400GLFH/GLFJ/GLFL/GLFM/GLFN/GLFP)

VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

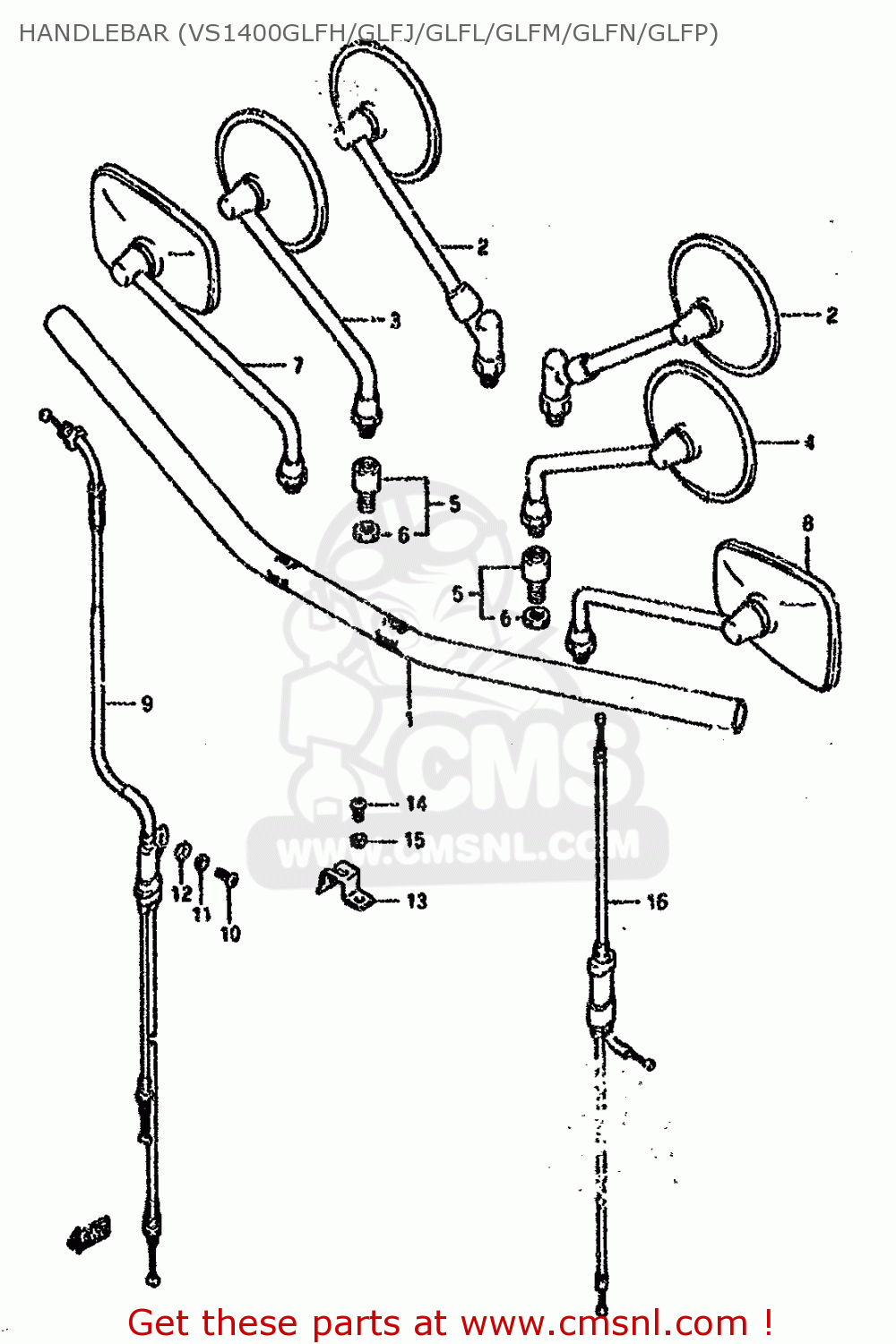

Handlebar (vs1400glfh/glfj/glfl/glfm/glfn/glfp) diagram VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

HANDLEBAR (VS1400GLFH/GLFJ/GLFL/GLFM/GLFN/GLFP) VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)
HANDLEBAR (VS1400GLFH/GLFJ/GLFL/GLFM/GLFN/GLFP) VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)
HANDLEBAR (VS1400GLFH/GLFJ/GLFL/GLFM/GLFN/GLFP) VS1400GLP 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)
prices are in EUR
ref
part #
description
quantity
1
5611138B21
ref: 1
HANDLEBAR
5611138B21
€ 255.50
2
5650038A50
ref: 2
E2,E4,E22,E34,E77
MIRROR ASSY,R.
5650038A50
€ 356.00
3
5650045121
ref: 3
E16
MIRROR ASSY RH
5650045121
€ 209.00
4
5660045121
ref: 4
E16
MIRROR ASSY
5660045121
€ 209.00
5
5670031001
ref: 5
E16
CUSHION,REAR VIEW MIRROR
5670031001
€ 18.00
6
0831022107
ref: 6
E16
NUT
0831022107
€ 2.50
7
5650038A30
ref: 7
E1,E15,E17,E18,E25,E
MIRROR ASSY,RR VIEW,R
5650038A30
€ 75.00
8
5660038A30
ref: 8
E1,E15,E17,E18,E25,E
MIRROR ASSY,RR VIEW,L
5660038A30
€ 75.50
9
5830038B00
ref: 9
CABLE ASSEMBLY,THROTTLE
5830038B00
€ 88.00
10-1
0211205168
ref: 10-1
MODEL H/J/L
SCREW
0211205168
€ 2.50
10-2
0211275168
ref: 10-2
MODEL M/N/P
SCREW
0211275168
€ 2.50
11
0832121057
ref: 11
MODEL H/J/L
LOCK WASHER
0832121057
€ 2.00
12
0832221057
ref: 12
MODEL H/J/L
WASHER
0832221057
€ 2.50
13
5862138B00
ref: 13
CLAMP,THROTTLE CABLE CONNECTOR
€ 6.00
14
0211205107
ref: 14
SCREW
0211205107
€ 2.00
15
0832121057
ref: 15
LOCK WASHER
0832121057
€ 2.00
16
5840038B01
ref: 16
CABLE ASSEMBLY,STARTER
5840038B01
€ 34.00
