BOOST SENSOR

VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

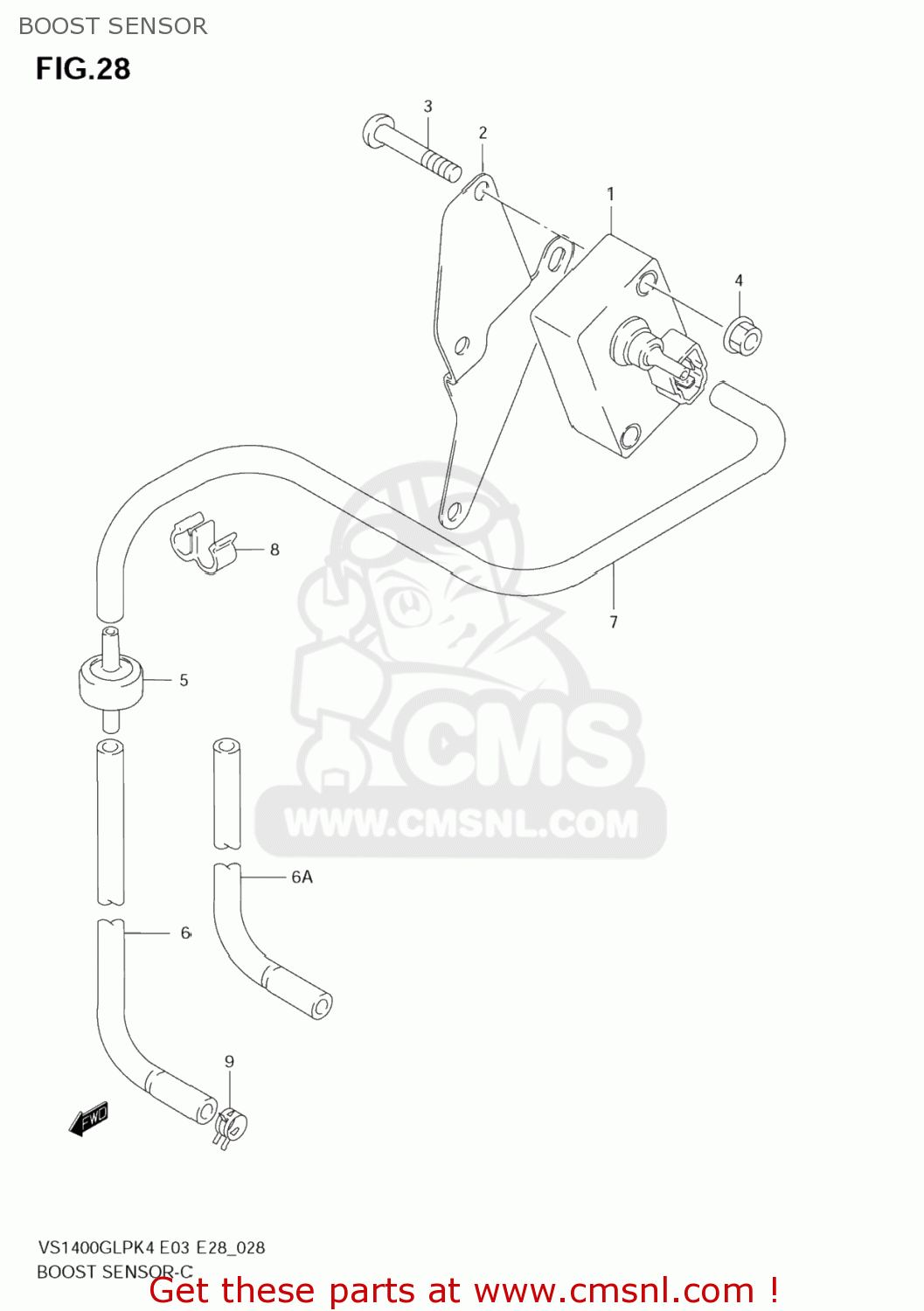

Boost sensor diagram VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

3324038B00
ref: 1

SENSOR ASSY,BOOST

€ 716.50

3324138B00
ref: 2

BRACKET,BOOST SENSOR

€ 6.50

021120630B
ref: 3

SCREW

€ 2.50

083161006B
ref: 4

NUT

€ 2.50

2796585400
ref: 5

FILTER,VSV

€ 7.50

3324238B00
ref: 6

HOSE,BOOST NO.1

€ 8.50

093553575500B
ref: 6A

HOSE(3.5X7.5X2000)

€ 43.00

093553575500B
ref: 6A

HOSE(3.5X7.5X2000)

€ 43.00

093553575500B
ref: 7

HOSE(3.5X7.5X2000)

€ 43.00

0940800033
ref: 8

CLAMP

€ 2.50

0940107402
ref: 9

CLIP

€ 2.00
