FRONT WHEEL

VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

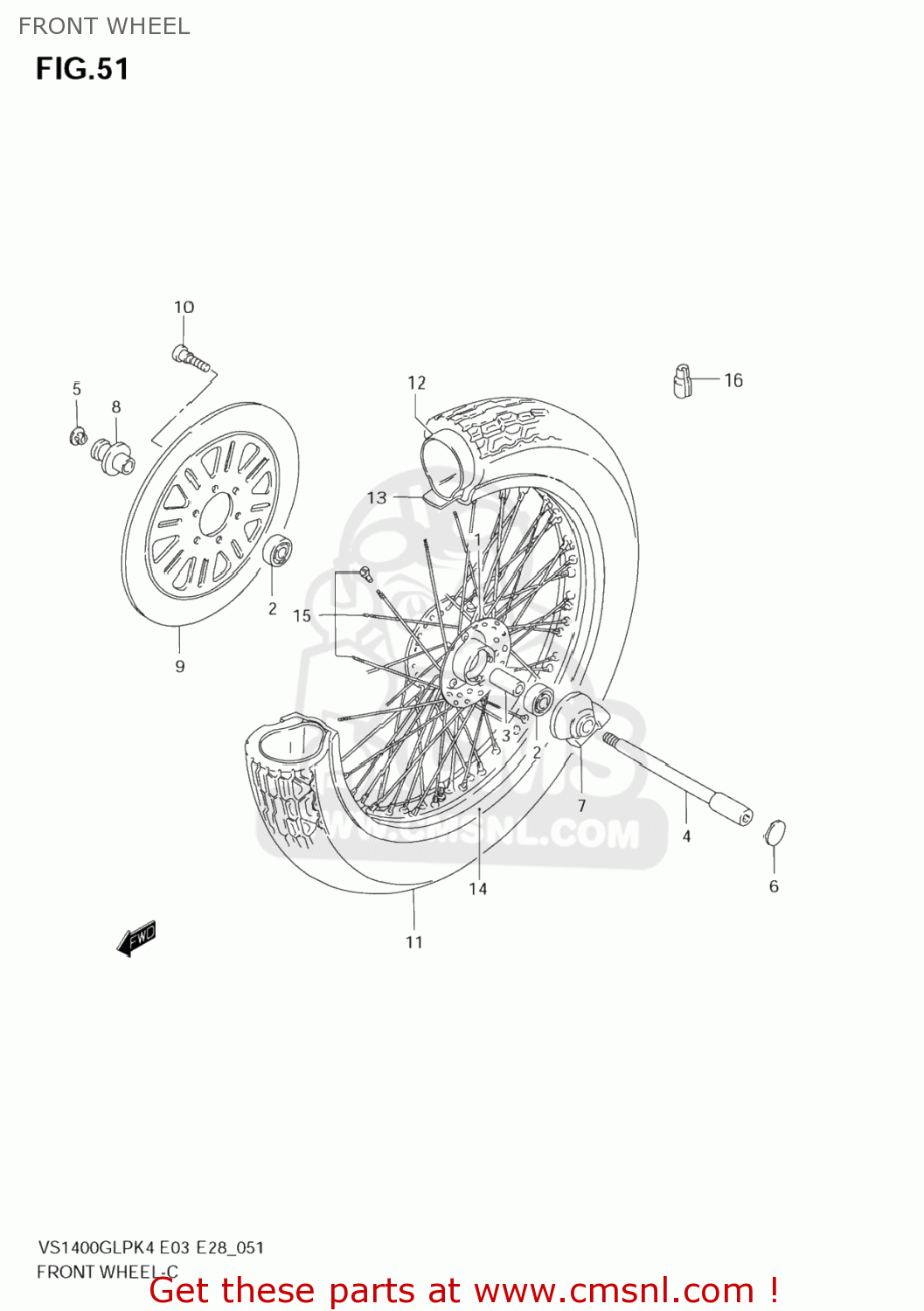

Front wheel diagram VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

FRONT WHEEL VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

FRONT WHEEL VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

5411038B10
ref: 1

HUB ASSY,FR

€ 227.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015004
ref: 3

SPACER(15.3X21.7X65)

€ 9.00

3

0918015004
ref: 3

SPACER(15.3X21.7X65)

€ 9.00

4

5471138B02
ref: 4

AXLE,FR

€ 60.50

5

5479138B01
ref: 5

CAP,FR AXLE

€ 4.50

6

5479238B00
ref: 6

CAP,FR AXLE

€ 97.00

7

5460038A11
ref: 7

BOX ASSY,SPEEDOMETER

€ 124.50

8

5475038B00
ref: 8

SPACER,FR AXLE

€ 25.50

9

5921138B00
ref: 9

DISC,FR BRAKE

€ 232.50

10

0910608148
ref: 10

BOLT(8X33)

€ 6.00

11

5511038B20
ref: 11

TIRE,FR(110/90-19 62H)

€ 0.00

12

5520038B20
ref: 12
65200-01B30

CLAMP,L:200

€ 41.00

13

5526138B20
ref: 13

PROTECTOR, INNER TUBE

€ 4.50

14

5531138B10
ref: 14

RIM,FR WHEEL(19X2.15 AL)

€ 337.50

15

5532038B10
ref: 15

SPOKE SET,FR WHEEL

€ 0.00

16-1

5541238A00
ref: 16-1
55412-41F00

BALANCER,WHEEL

€ 6.50

16-2

5541338A00
ref: 16-2
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

16-3

5541241F00
ref: 16-3

BALANCER,WHEEL(20G)

€ 6.50

16-4

5541341F00
ref: 16-4

BALANCER,WHEEL(30G)

€ 8.00

16-5

5541126G00
ref: 16-5

BALANCER,WHEEL(15G)

€ 4.50
