FRAME (MODEL K5/K6/K7/K8)

VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

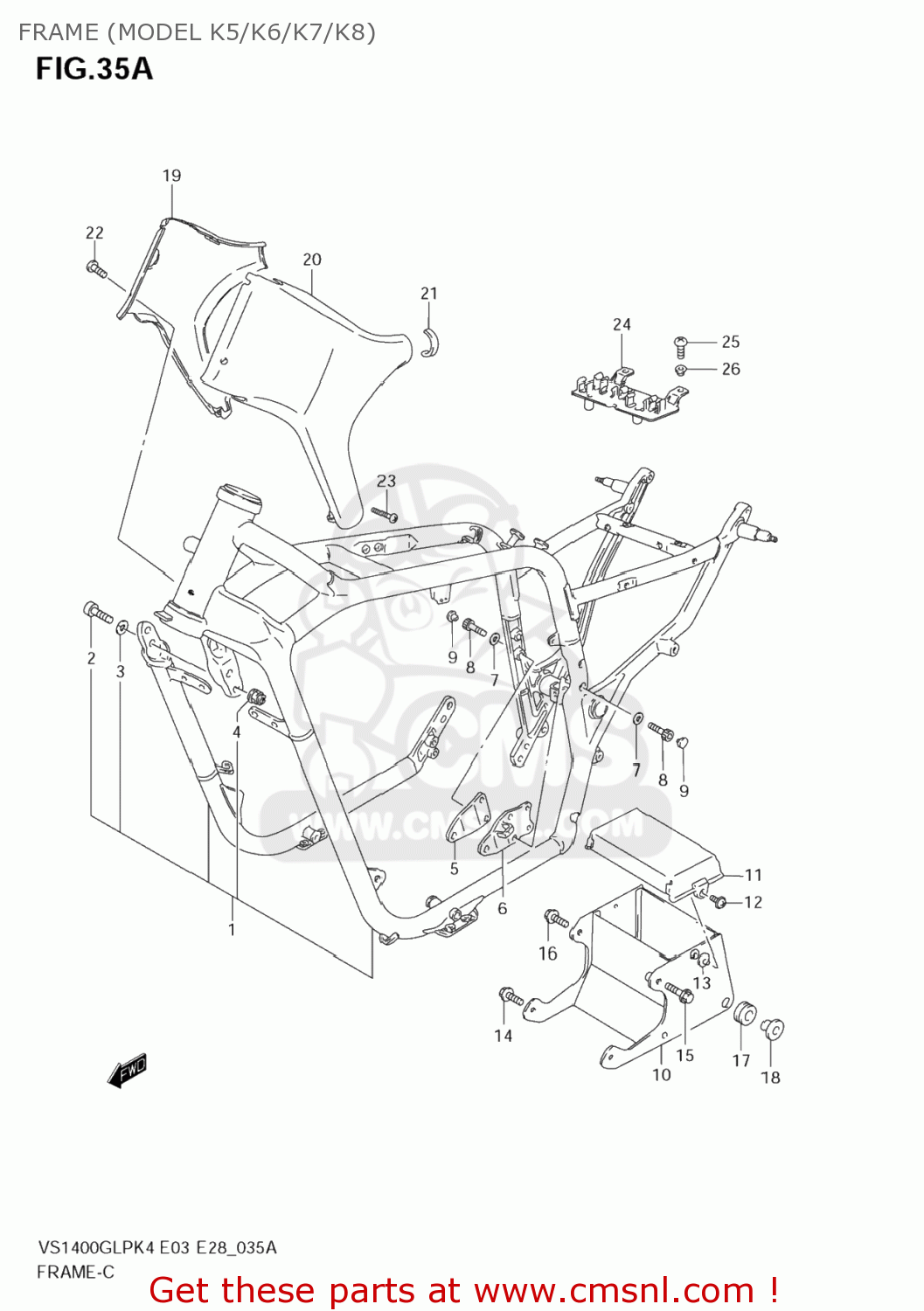

Frame (model k5/k6/k7/k8) diagram VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

FRAME (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)
FRAME (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)
FRAME (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1-1
4110138822YAY
ref: 1-1
FRAME SET(BLACK)
€ 1,654.00
1-2
4110138822YU8
ref: 1-2
FRAME SET(GRAY)
€ 0.00
1-3
4110138822YHL
ref: 1-3
FRAME(RED)
€ 0.00
1-4
4110138822YBA
ref: 1-4
FRAME(BLUE)
€ 0.00
1-5
4110138822YLC
ref: 1-5
FRAME SET(GOLD)
€ 2,005.50
2
0910610019
ref: 2
BOLT(10X33)
0910610019
€ 4.00
3
0916410010
ref: 3
WASHER
0916410010
€ 6.50
4
083193110B
ref: 4
NUT
083193110B
€ 3.00
5-1
4195138B00YAY
ref: 5-1
PLATE,MOUNT NO.4,R
€ 0.00
5-2
4195138B00YU8
ref: 5-2
PLATE,ENG MTG NO.4,R
€ 0.00
5-3
4195138B00YHL
ref: 5-3
PLATE,ENG MTG NO.4,R
€ 0.00
5-4
4195138B00YBA
ref: 5-4
PLATE,ENGINE MOUNT NO.4,R
€ 0.00
5-5
4195138B00YLC
ref: 5-5
PLATE,ENGINE MOUNT NO.4,R
€ 16.50
6-1
4196038B00YAY
ref: 6-1
PLATE,MOUNT NO.4,L
€ 0.00
6-2
4196038B00YU8
ref: 6-2
PLATE,ENGINE MOUNT NO.4,L
€ 0.00
6-3
4196038B00YHL
ref: 6-3
PLATE,ENGINE MOUNT NO.4,L
€ 0.00
6-4
4196038B00YBA
ref: 6-4
PLATE,ENGINE MOUNT NO.4,L
€ 0.00
6-5
4196038B00YLC
ref: 6-5
PLATE,ENGINE MOUNT NO.4,L
€ 24.50
7
0916408015
ref: 7
WASHER
0916408015
€ 3.00
8
0910608072
ref: 8
BOLT(8X32)
0910608072
€ 5.00
9
0925006004
ref: 9
CAP(OD:14.5)
0925006004
€ 1.50
10
4154038B02
ref: 10
HOLDER,BATTERY
4154038B02
€ 97.00
11
3365838B00
ref: 11
COVER,BATTERY
3365838B00
€ 12.00
12
0913805012
ref: 12
SCREW(5X12)
0913805012
€ 2.50
13
0916905014
ref: 13
WASHER
0916905014
€ 10.00
14
015500616B
ref: 14
BOLT
015500616B
€ 2.50
15
015510820B
ref: 15
BOLT
€ 2.50
16
0910308222
ref: 16
BOLT(8X40)
0910308222
€ 3.00
17
0932012042
ref: 17
CUSHION
0932012042
€ 4.00
18
0930108009
ref: 18
BUSH
0930108009
€ 6.50
19-1
4735038B01YAY
ref: 19-1
COVER,FRAME HEAD,R(BLACK)
€ 0.00
19-2
4735038B01YU8
ref: 19-2
COVER,FRAME HEAD,R(GRAY)
€ 0.00
19-3
4735038B01YHL
ref: 19-3
COVER,FRAME HEAD,R(RED)
€ 0.00
19-4
4735038B01YBA
ref: 19-4
COVER,FRAME HEAD,R(BLUE)
€ 0.00
19-5
4735038B01YLC
ref: 19-5
COVER,FRAME HEAD,R(GOLD)
€ 149.00
20-1
4736038B11YAY
ref: 20-1
COVER,FRAME HEAD,L(BLACK)
€ 119.00
20-2
4736038B11YU8
ref: 20-2
COVER,FRAME HEAD,L(GRAY)
€ 0.00
20-3
4736038B11YHL
ref: 20-3
COVER,FRAME HEAD,L(RED)
€ 0.00
20-4
4736038B11YBA
ref: 20-4
COVER,FRAME HEAD,L(BLUE)
€ 0.00
20-5
4736038B11YLC
ref: 20-5
COVER,FRAME HEAD,L(GOLD)
€ 149.00
21
4735938B00
ref: 21
PROTECTOR,FRAME HEAD COVER
4735938B00
€ 2.00
22
0912506117
ref: 22
SCREW(6X10)
€ 2.00
23
021120425B
ref: 23
SCREW
021120425B
€ 2.00
24
4741138B02
ref: 24
HOLDER,COUPLER
4741138B02
€ 11.50
25
021420616B
ref: 25
SCREW
021420616B
€ 1.50
26
0916906010
ref: 26
WASHER
0916906010
€ 3.00
