FRONT DAMPER (MODEL K5/K6/K7/K8)

VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

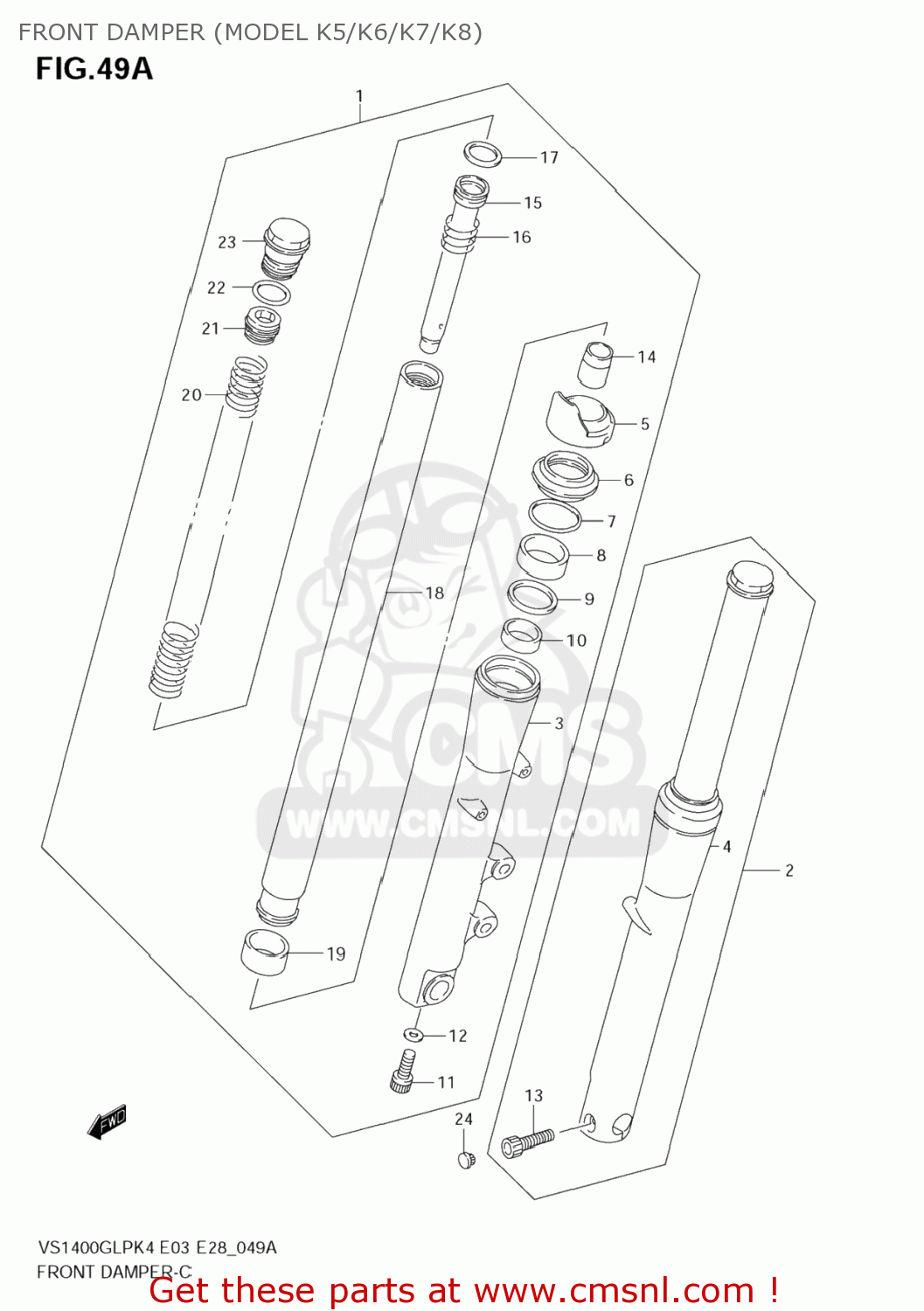

Front damper (model k5/k6/k7/k8) diagram VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

FRONT DAMPER (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

FRONT DAMPER (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

5110338B70
ref: 1

DAMPER ASSY,FR FORK,R

€ 0.00

2

5110438B70
ref: 2

DAMPER ASSY,FR FORK,L

€ 0.00

3

5113138B00
ref: 3

TUBE,OUTER,R

€ 470.00

4

5114138B00
ref: 4

TUBE,OUTER,L

€ 470.00

5-1

5153038B70
ref: 5-1

COVER,UPR,R

€ 63.00

5-2

5154038B70
ref: 5-2

COVER,UPR,L

€ 63.00

6

5117315D00
ref: 6

DUST SEAL

€ 19.50

7

5155638B00
ref: 7

CIRCLIP,FORK OIL SEAL

€ 4.50

8

5115308D00
ref: 8

SEAL,OIL

€ 15.50

9

5116838B00
ref: 9

SPACER,SEAL

€ 5.00

10

5115248B31
ref: 10

BUSH,GUIDE

€ 20.00

11

5114748130
ref: 11

BOLT(8X27)

€ 3.50

12

5114836011
ref: 12

GASKET (NAS)

€ 4.00

13

0713008407
ref: 13

BOLT

€ 3.50

14

5119538B00
ref: 14

PIECE,OIL LOCK

€ 27.50

15

5114638B00
ref: 15

CYLINDER

€ 92.00

16

5117732B00
ref: 16

SPRING,REBOUND

€ 9.50

17

5119632B00
ref: 17

RING,PISTON

€ 7.50

18

5111038B00
ref: 18

TUBE,INNER

€ 546.00

19

5112103D00
ref: 19

BUSH,SLIDE

€ 15.00

20

5117138B00
ref: 20

SPRING,FR FORK

€ 119.50

21

5135338B00
ref: 21

BOLT,FORK INNER

€ 27.50

22

5111738B00
ref: 22

O RING

€ 4.00

23

5135138B00
ref: 23

BOLT

€ 81.00

24

0925006009
ref: 24

CAP(OD:14.5)

€ 3.50
