FUEL TANK (MODEL K4)

VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

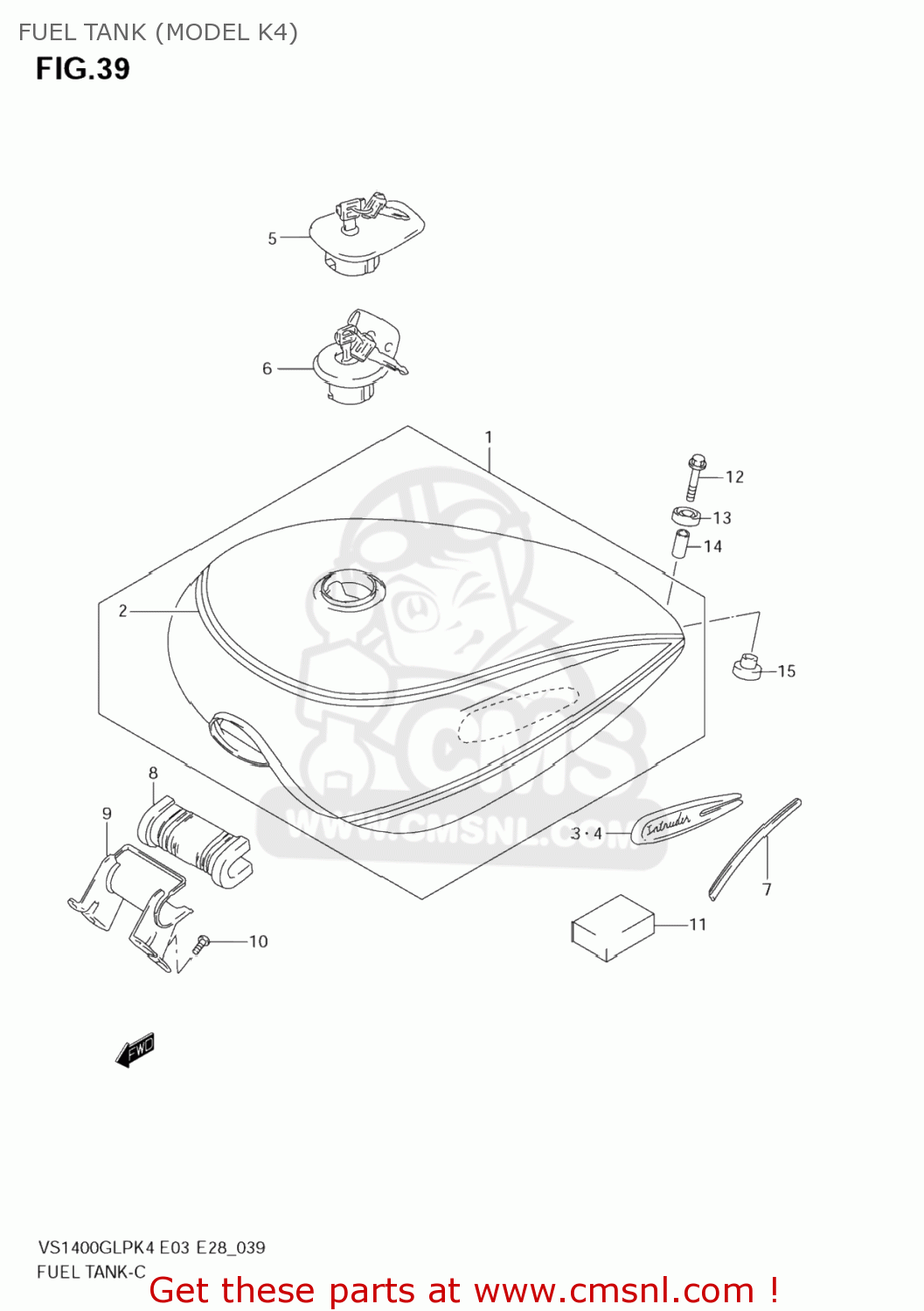

Fuel tank (model k4) diagram VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

FUEL TANK (MODEL K4) VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

FUEL TANK (MODEL K4) VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4910038BD0NZ1
ref: 1-1

TANK ASSY,FUEL

€ 0.00

1-2

4910038BD0NZ2
ref: 1-2

TANK ASSY,FUEL

€ 0.00

1-3

4910038BE0NZ1
ref: 1-3

TANK ASSY,FUEL

€ 0.00

1-4

4910038BE0NZ2
ref: 1-4

TANK ASSY,FUEL

€ 0.00

2-1

6811038BB0AHN
ref: 2-1

TAPE SET,FUEL TANK STRIPE

€ 0.00

2-2

6811038BB0AHM
ref: 2-2

TAPE SET,FUEL TANK STRIPE

€ 0.00

3

6811138B00
ref: 3

EMBLEM,FUEL TANK,R

€ 51.50

4

6812138B00
ref: 4

EMBLEM,FUEL TANK,L

€ 51.50

5-1

4420038820
ref: 5-1

CAP SET,FUEL TANK

€ 107.50

5-2

4420038860
ref: 5-2

CAP SET,FUEL TANK

€ 135.50

5-3

4420038870
ref: 5-3

ENGRAVED GAS CAP SET,G

€ 136.50

6

4420024820
ref: 6

CAP SET,FUEL TANK

€ 150.50

7

6824104X5000B
ref: 7

MOLDING

€ 23.00

8

4451138B01
ref: 8

CUSHION,FUEL TANK FR

€ 12.00

9

4425038B00019
ref: 9

BRACKET,FUEL TANK FR

€ 32.00

10

0211276163
ref: 10
02112-7616A

SCREW

€ 2.00

11

4451238B00
ref: 11
56314-48B10

CUSHION

€ 6.00

12

0155006353
ref: 12
01550-0635A

BOLT

€ 2.50

13

0932014013
ref: 13

CUSHION

€ 3.00

14

0918006274
ref: 14

SPACER(6.5X9X22.5)

€ 4.50

15

0932010020
ref: 15

CUSHION

€ 4.00
