CLUTCH CYLINDER (MODEL K5/K6/K7/K8)

VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

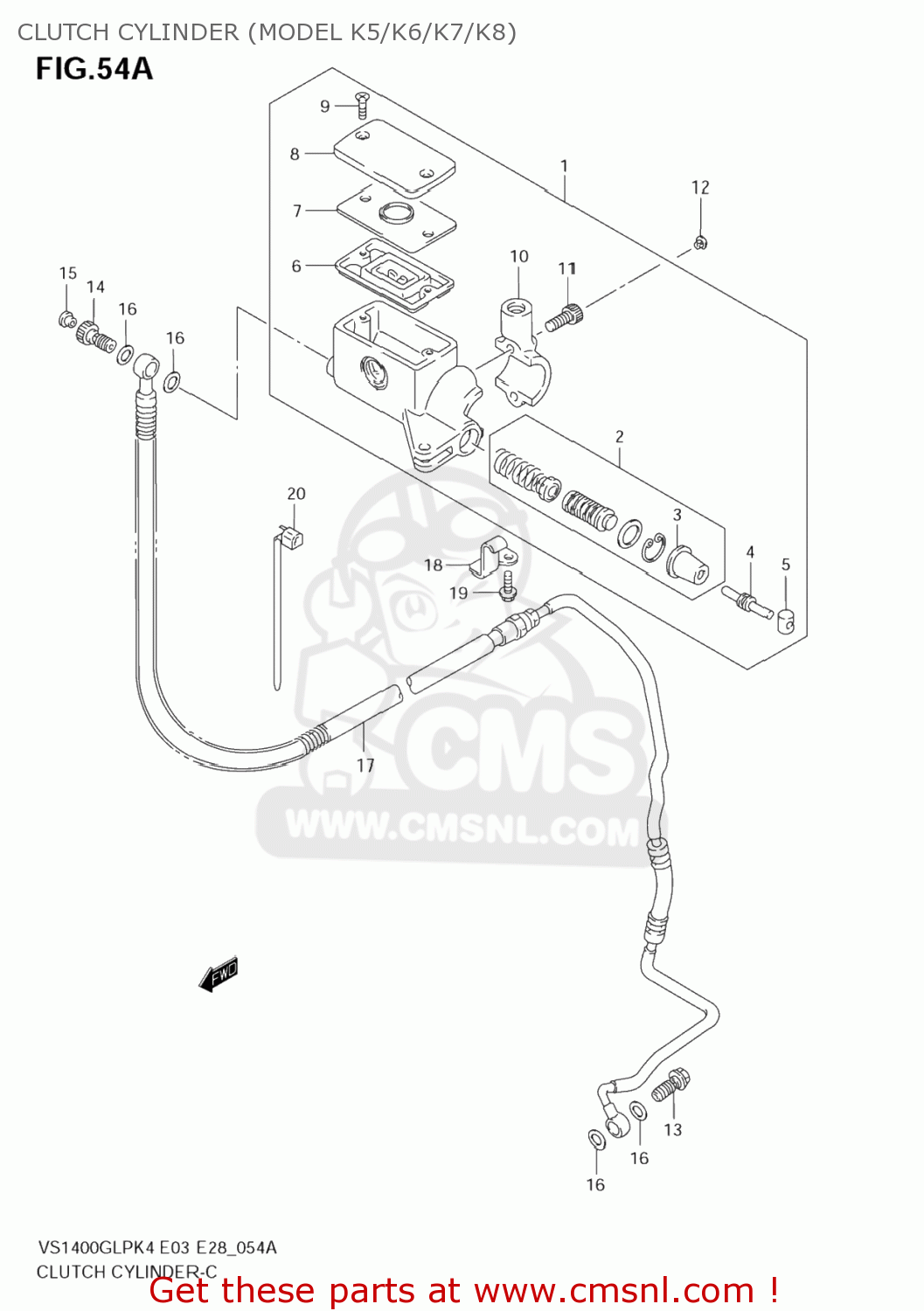

Clutch cylinder (model k5/k6/k7/k8) diagram VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)

CLUTCH CYLINDER (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)
CLUTCH CYLINDER (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)
CLUTCH CYLINDER (MODEL K5/K6/K7/K8) VS1400GLP BOULEVARD S83 2006 (K6) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
5980039A10
ref: 1
CYLINDER ASSY, CLUTCH MASTER
€ 428.00
2
5980008810
ref: 2
PISTON & CUP SET
5980008810
€ 36.50
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
5987138A00
ref: 4
PUSH ROD
5987138A00
€ 6.50
5
5989208A00
ref: 5
BUSH
5989208A00
€ 5.50
6
5966749460
ref: 6
5966749460
7
5966841C00
ref: 7
PLATE,DIAPHRAGM
5966841C00
€ 8.00
8
5966910F00
ref: 8
CAP
5966910F00
€ 59.50
9
0212204127
ref: 9
SCREW
0212204127
€ 2.00
10
5967138A00
ref: 10
HOLDER
5967138A00
€ 37.50
11
0713006207
ref: 11
BOLT
0713006207
€ 3.50
12
0925005008
ref: 12
CAP(OD:10)
0925005008
€ 5.00
13
0936010039
ref: 13
09360-10061
BOLT UNION
€ 6.50
14
0936010027
ref: 14
BOLT UNION
0936010027
€ 9.00
15
0925008014
ref: 15
CAP(OD:12)
0925008014
€ 3.50
16
0916110009
ref: 16
WASHER(10X15X1.5)
0916110009
€ 2.00
17
5990038B50
ref: 17
HOSE ASSY,CLUTCH
€ 0.00
18
5954238B00
ref: 18
CLAMP,CLUTCH HOSE
€ 5.50
19
015500610B
ref: 19
BOLT
015500610B
€ 2.50
20
0940718402
ref: 20
CLAMP(L:165)
0940718402
€ 2.50
