CYLINDER

VS1400GLP INTRUDER 1999 (X) USA (E03)

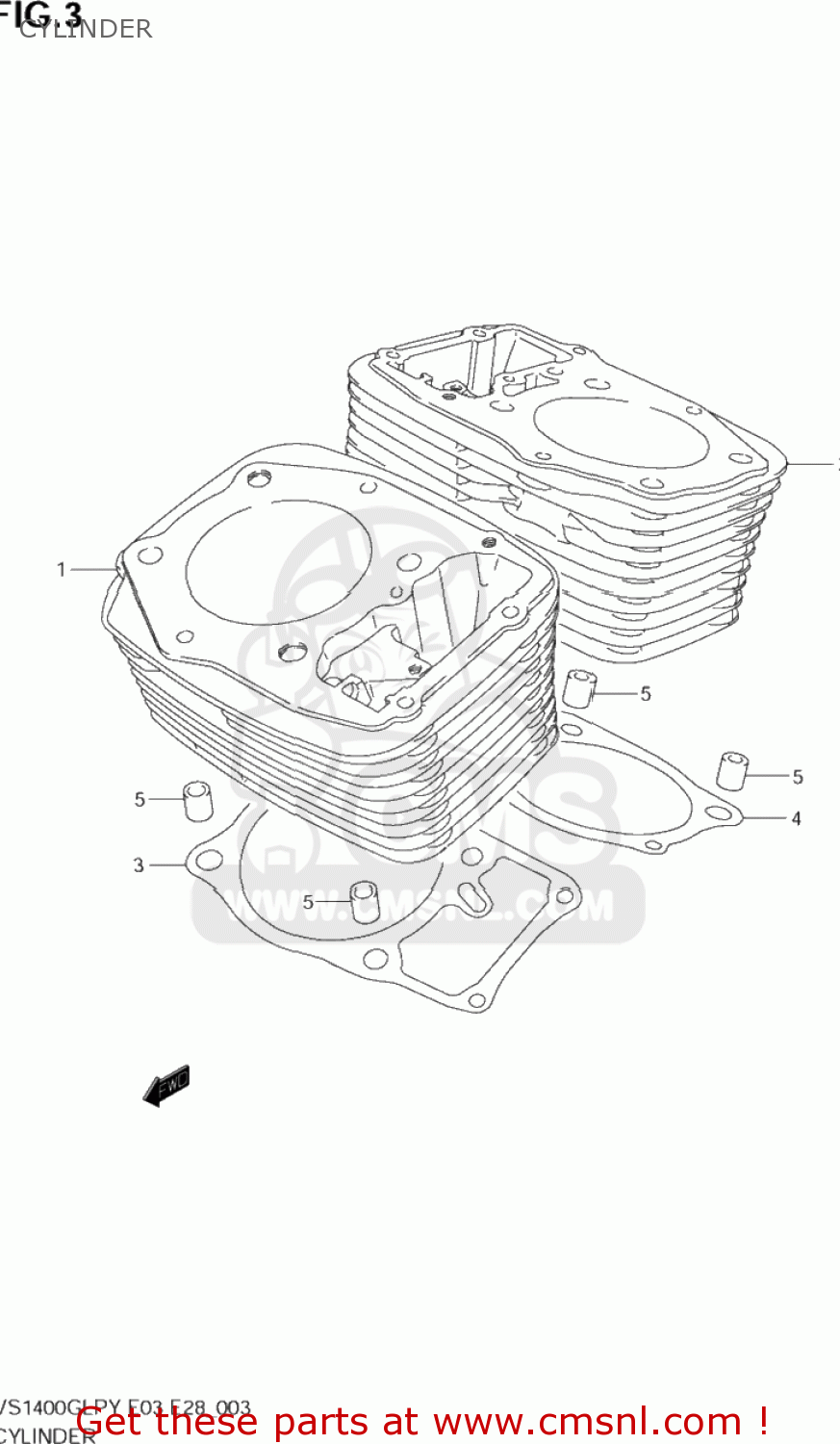

Cylinder diagram VS1400GLP INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121038B02
ref: 1-1

CYLINDER,FRONT

€ 666.50

1-2

1121038B50
ref: 1-2
11210-38B50-0F0

CYLINDER,FRONT

€ 574.00

1-3

1121038B500F0
ref: 1-3

CYLINDER,FR

€ 574.00

2-1

1122038B02
ref: 2-1
11220-38B50-0F0

CYLINDER,REAR

€ 563.50

2-2

1122038B50
ref: 2-2
11220-38B50-0F0

CYLINDER,REAR

€ 563.50

2-3

1122038B500F0
ref: 2-3

CYLINDER,RR

€ 563.50

1124138B00H17
ref: 3

GASKET,CYLINDER FR (NAS)

€ 26.00

1124238B00H17
ref: 4

GASKET,CYLINDER RR (NAS)

€ 23.50

0421113189
ref: 5

PIN

€ 2.50
