FRONT FENDER (MODEL T)

VS1400GLP INTRUDER 1999 (X) USA (E03)

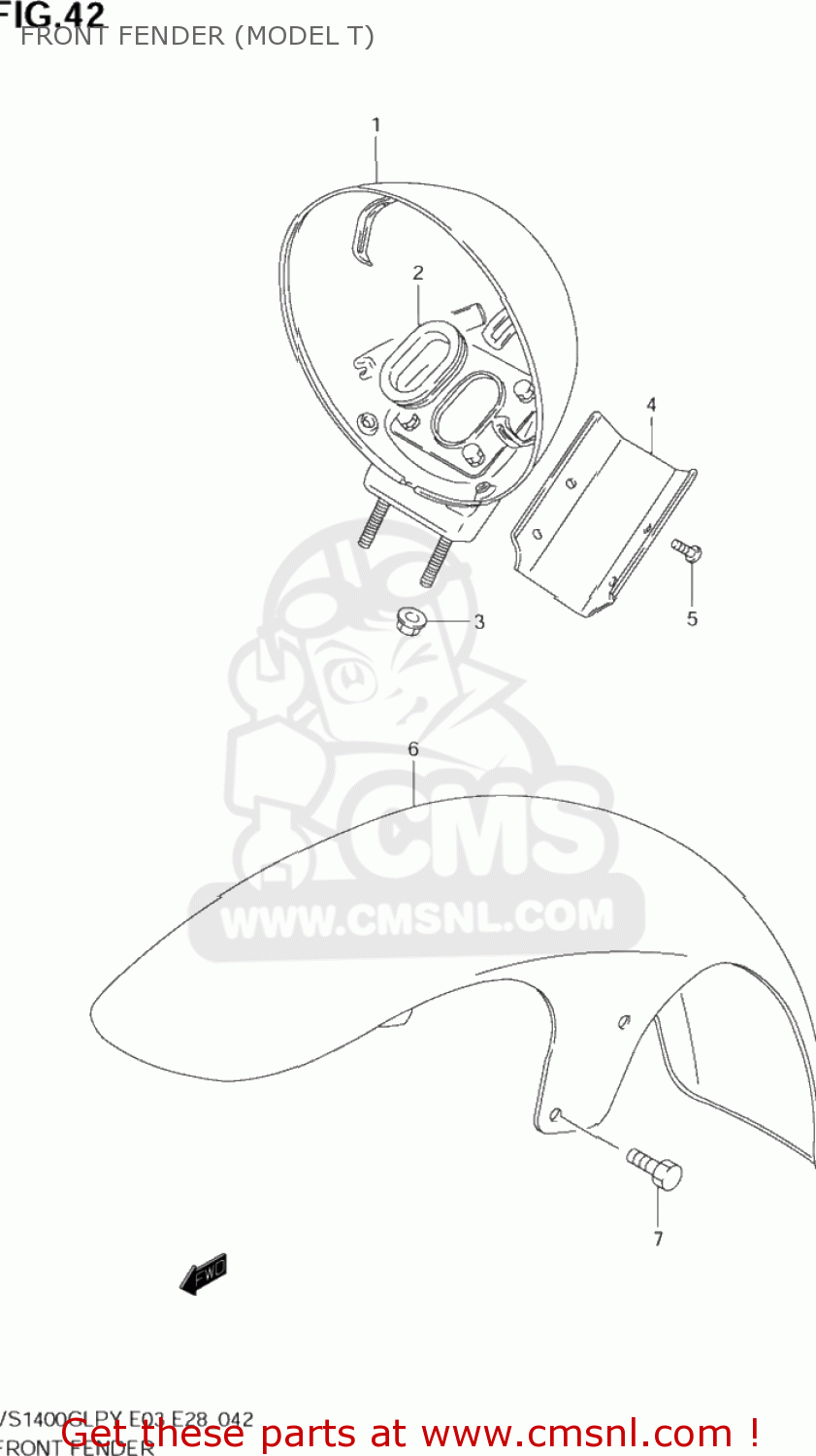

Front fender (model t) diagram VS1400GLP INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

5181038B00
ref: 1

HOUSING,HEADLAMP

€ 136.50

5181938B00
ref: 2

GROMMET

€ 6.50

0831931063
ref: 3
08319-3106A

NUT

€ 2.50

5181538B00
ref: 4

COVER,HEADLAMP HSG

€ 9.50

0214204107
ref: 5

SCREW

€ 1.50

6-1

5311038B1033J
ref: 6-1
53110-38B11-33J

FENDER COMP,FRONT

€ 177.00

6-2

5311038B101ZV
ref: 6-2
53110-38B11-1ZV

FENDER COMP,FRONT

€ 215.50

0157006163
ref: 7
01570-0616A

BOLT

€ 2.50
