Buy Suzuki VS Parts Online


STEERING STEM (MODEL T/V/W/X)

VS1400GLP INTRUDER 1999 (X) USA (E03)

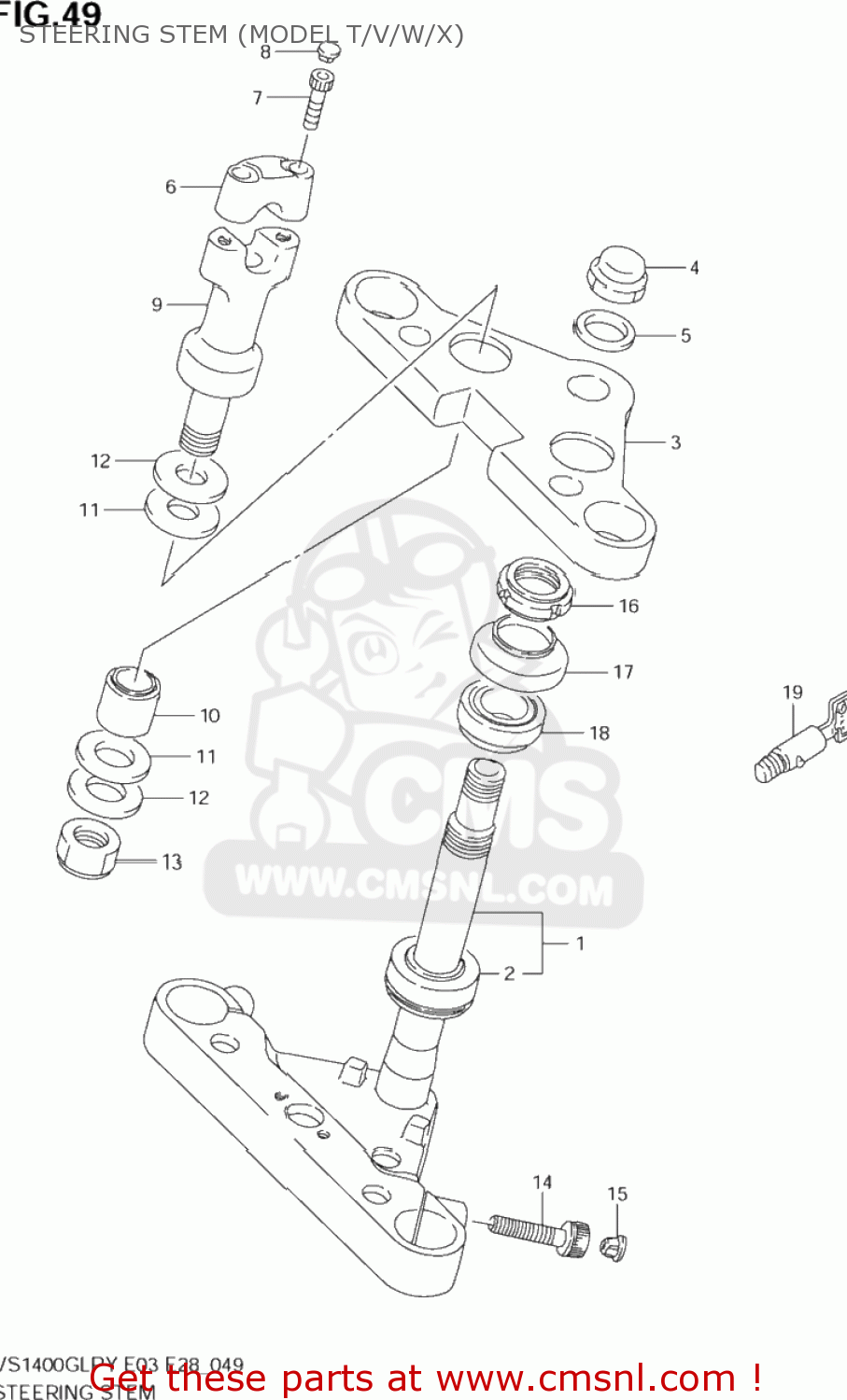

Steering stem (model t/v/w/x) diagram VS1400GLP INTRUDER 1999 (X) USA (E03)

STEERING STEM (MODEL T/V/W/X) VS1400GLP INTRUDER 1999 (X) USA (E03)
STEERING STEM (MODEL T/V/W/X) VS1400GLP INTRUDER 1999 (X) USA (E03)
STEERING STEM (MODEL T/V/W/X) VS1400GLP INTRUDER 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5141038B21
ref: 1
STEM,STEERING
€ 544.00
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
5131138B01
ref: 3
HEAD,STEERING STEM
5131138B01
€ 393.50
4
5135324B00
ref: 4
NUT,CAP
5135324B00
€ 21.50
5
5135624B01
ref: 5
WASHER(22.5X32X1.6)
5135624B01
€ 3.00
6
5621138A01
ref: 6
HOLDER,HANDLE UPR
5621138A01
€ 45.00
7
0713008303
ref: 7
07130-0830A
BOLT
0713008303
€ 3.00
8
0925006009
ref: 8
CAP(OD:14.5)
0925006009
€ 3.50
9
5622038B10
ref: 9
HOLDER,HANDLE
5622038B10
€ 184.50
10
5624038B00
ref: 10
CUSHION
5624038B00
€ 43.00
11
5624538B00
ref: 11
SEAT,RUBBER
5624538B00
€ 5.00
12
5624438B00
ref: 12
WASHER
5624438B00
€ 7.50
13
5624638B00
ref: 13
NUT
5624638B00
€ 42.00
14
0713010307
ref: 14
BOLT
0713010307
€ 4.50
15
0925008014
ref: 15
CAP(OD:12)
0925008014
€ 3.50
16
5163128000
ref: 16
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
17
5164349002
ref: 17
SEAL,STEERING UPR DUST
5164349002
€ 7.50
18
0926525019
ref: 18
BEARING(25X47X15)
0926525019
€ 48.50
18
0926525019
ref: 18
BEARING(25X47X15)
0926525019
€ 48.50
19
5190038810
ref: 19
LOCK SET,STEERING
5190038810
€ 168.50
