FRAME COVER (MODEL T/V)

VS1400GLP INTRUDER 1999 (X) USA (E03)

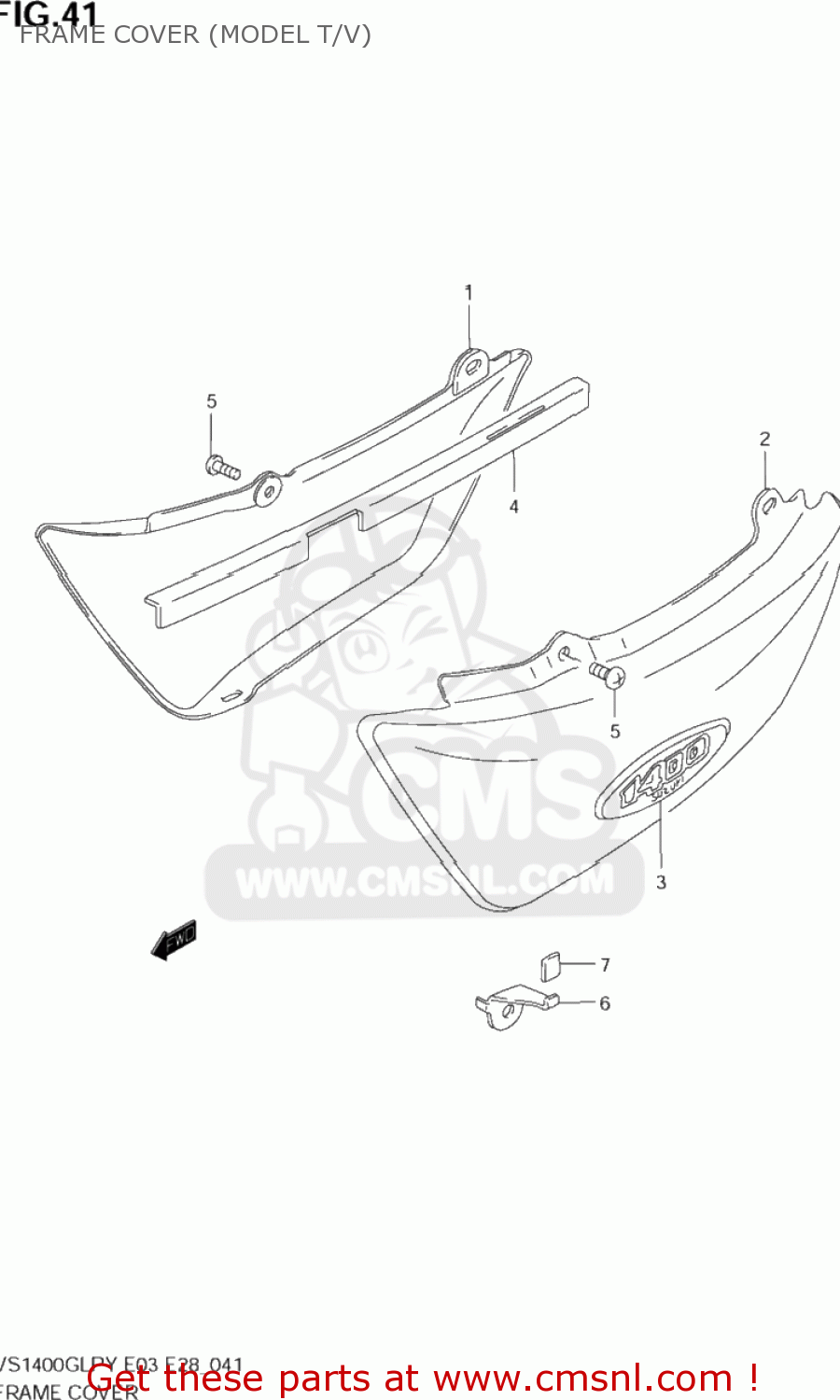

Frame cover (model t/v) diagram VS1400GLP INTRUDER 1999 (X) USA (E03)

FRAME COVER (MODEL T/V) VS1400GLP INTRUDER 1999 (X) USA (E03)

FRAME COVER (MODEL T/V) VS1400GLP INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711038B0033J
ref: 1-1

4711038B0033J

1-2

4711038B001ZV
ref: 1-2

COVER COMP,FRAME,RIGHT

€ 120.50

1-3

4711038B0020F
ref: 1-3

COVER,FRAME,R(MAROON)

€ 120.50

1-4

4711038B00Y0N
ref: 1-4

COVER,FRAME,R(BULE)

€ 120.50

2-1

4721038B0033J
ref: 2-1
47210-38B00-YAY

COVER COMP,FRAME,LEFT

€ 132.50

2-2

4721038B001ZV
ref: 2-2

COVER,FRAME,L(GREEN)

€ 128.00

2-3

4721038B0020F
ref: 2-3

COVER COMP,FRAME,LEFT

€ 132.50

2-4

4721038B00Y0N
ref: 2-4

COVER,FRAME,L

€ 120.50

3-1

6813138B30
ref: 3-1
68131-38B30-Y2B

EMBLEM,FRAME COVER

€ 27.00

3-2

6813138B30Y2B
ref: 3-2

EMBLEM,FRAME COVER

€ 27.00

3-3

6813138B30Y2C
ref: 3-3

EMBLEM,FRAME COVER

€ 28.50

4

4716538B00
ref: 4

PROTECTOR,FRAME COVER,R

€ 8.00

5

0214206123
ref: 5
02142-0612A

SCREW 6X12

€ 2.00

6

4717138B00
ref: 6

HOOK,FRAME COVER,L

€ 5.50

7

4717538B00
ref: 7

CUSHION,FRAME COVER HOOK

€ 2.50
