GEAR SHIFTING (MODEL V/W/X/Y/K1/K2/K3)

VS1400GLP INTRUDER 1999 (X) USA (E03)

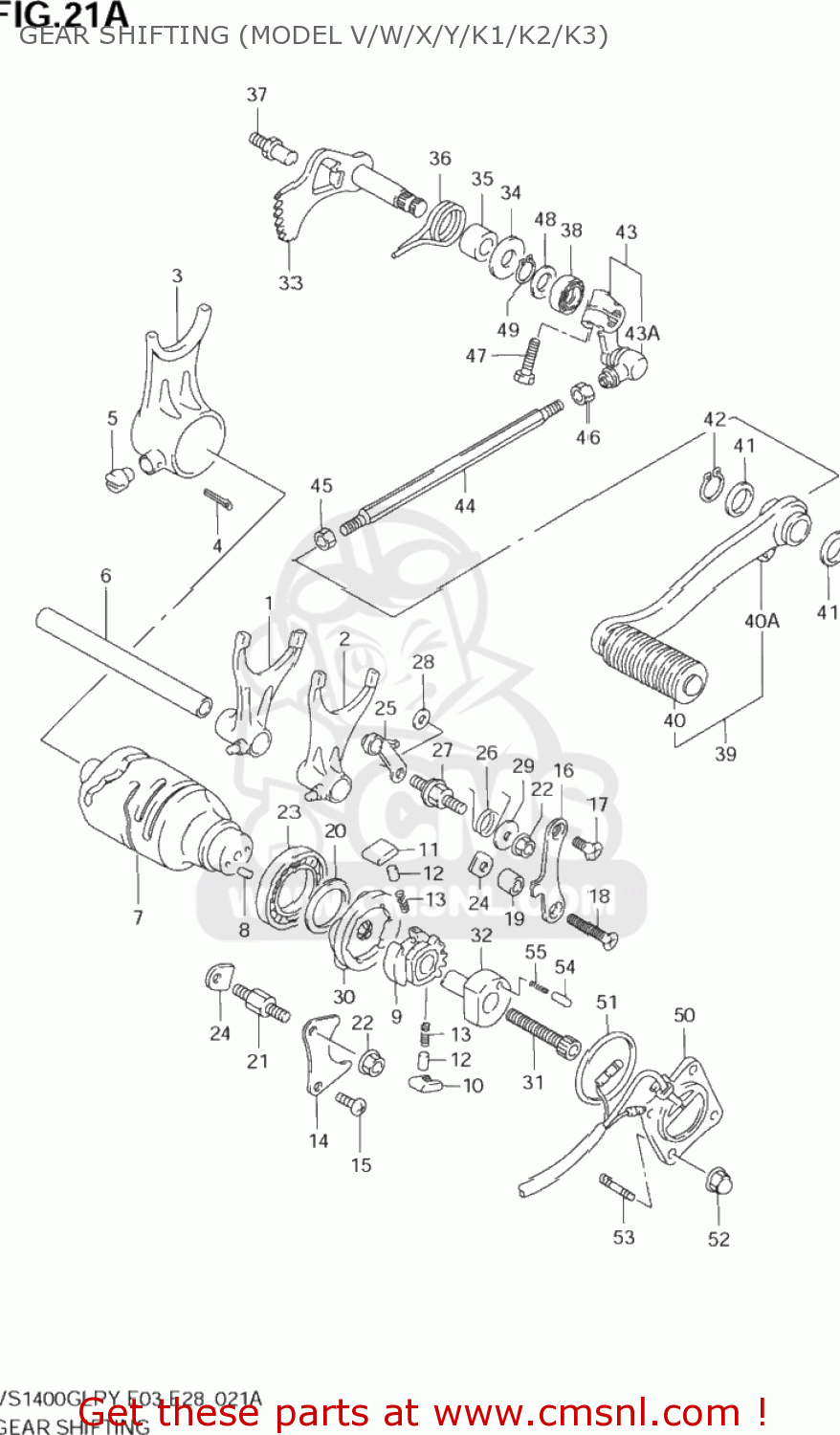

Gear shifting (model v/w/x/y/k1/k2/k3) diagram VS1400GLP INTRUDER 1999 (X) USA (E03)

GEAR SHIFTING (MODEL V/W/X/Y/K1/K2/K3) VS1400GLP INTRUDER 1999 (X) USA (E03)
GEAR SHIFTING (MODEL V/W/X/Y/K1/K2/K3) VS1400GLP INTRUDER 1999 (X) USA (E03)
GEAR SHIFTING (MODEL V/W/X/Y/K1/K2/K3) VS1400GLP INTRUDER 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
2521138B10
ref: 1-1
25211-38B11
FORK,GEAR SHIFT NO.1
€ 83.00
1-2
2521138B11
ref: 1-2
FORK,GEAR SHIFT NO.1
2521138B11
€ 83.00
2
2522138B10
ref: 2
FORK,GEAR SHIFT NO.2
2522138B10
€ 83.00
3
2523138B10
ref: 3
FORK,GEAR SHIFT NO.3
2523138B10
€ 168.00
4
0411125308
ref: 4
04111-2530A
PIN, COTTER
0411125308
€ 1.50
5
0920910002
ref: 5
PIN
0920910002
€ 8.50
6
2541138B01
ref: 6
SHAFT,GEAR SHIFT FORK(L:152)
2541138B01
€ 20.00
7
2531038B10
ref: 7
CAM,GEAR SHIFT
€ 213.50
8
0422104089
ref: 8
PIN
0422104089
€ 1.50
9-1
2532231302
ref: 9-1
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
9-2
2532231310
ref: 9-2
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 14.50
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
0926105003
€ 1.50
13
0944004003
ref: 13
SPRING
0944004003
€ 1.50
14
2533138B00
ref: 14
LIFTER,GEAR SHIFT POLE
2533138B00
€ 5.00
15-1
0211206123
ref: 15-1
02112-0612A
SCREW
0211206123
€ 1.50
15-2
0912506110
ref: 15-2
BOLT(6X12)
0912506110
€ 2.50
16
2534138B00
ref: 16
GUIDE,GEAR SHIFT CAM
2534138B00
€ 7.00
17-1
0212206123
ref: 17-1
02122-0612A
SCREW
0212206123
€ 3.00
17-2
0912606011
ref: 17-2
SCREW(6X12)
0912606011
€ 2.00
18
0212206303
ref: 18
02122-0630B
SCREW
0212206303
€ 2.00
19
0918006293
ref: 19
SPACER(6.5X10X14)
0918006293
€ 2.00
20
0916025059
ref: 20
WASHER(25X32X3)
0916025059
€ 5.00
21-1
2533238A00
ref: 21-1
BOSS,SHIFT PAWL LIFTER
€ 3.50
21-2
2533238A10
ref: 21-2
BOSS,SHIFT POLE LIFTER
2533238A10
€ 3.50
22
0831610063
ref: 22
08316-1006B
NUT
0831610063
€ 2.50
23
0926225006
ref: 23
BEARING(25X47X8)
0926225006
€ 24.00
24
2474121A00
ref: 24
RETAINER
2474121A00
€ 2.00
25
2535038B00
ref: 25
STOPPER,GEAR SHIFT CAM
2535038B00
€ 13.00
26
0944817024
ref: 26
SPRING
0944817024
€ 5.00
27
2535612C00
ref: 27
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
28
0821106141
ref: 28
WASHER
0821106141
€ 2.50
29
0916006013
ref: 29
09160-06121
WASHER (6.5X18X2)
0916006013
€ 10.50
30
2538038B00
ref: 30
PLATE,GEAR SHIFT CAM
2538038B00
€ 15.00
31
0713006403
ref: 31
07130-0640B
BOLT
0713006403
€ 3.50
32
2531238B01
ref: 32
HOLDER,NEUTRAL SWITCH
2531238B01
€ 21.00
33
2551038B00
ref: 33
SHAFT,GEAR SHIFT
2551038B00
€ 94.00
34-1
0916012063
ref: 34-1
09160-12091
WASHER (12.5X28X1.2)
€ 2.50
34-2
0916012091
ref: 34-2
WASHER(12.5X28X1.2)
€ 2.50
35
0918012068
ref: 35
SPACER(12X20X15.3)
0918012068
€ 3.00
36
0944426021
ref: 36
SPRING
0944426021
€ 5.00
37
2567138B00
ref: 37
STOPPER,SHIFT ARM
2567138B00
€ 3.00
38
0928512002
ref: 38
09285-12006
OIL SEAL
0928512002
€ 7.00
39
2560038B01
ref: 39
LEVER ASSY,GEAR SHIFT
2560038B01
€ 78.00
40
2565238B00
ref: 40
RUBBER,GEAR SHIFT PEDAL
2565238B00
€ 7.50
40A
2552647000
ref: 40A
COVER,DUST
2552647000
€ 3.50
41-1
0916014003
ref: 41-1
09160-14054
WASHER (14.2X22X1)
0916014003
€ 1.00
41-2
0916014054
ref: 41-2
WASHER(14.5X22X1)
0916014054
€ 1.00
42
0833131146
ref: 42
08331-3114A
CIRCLIP
0833131146
€ 2.00
43
2552038B00
ref: 43
ARM,GEAR SHIFT LINK
2552038B00
€ 39.50
43A
2552647000
ref: 43A
COVER,DUST
2552647000
€ 3.50
44
2552538B00
ref: 44
ROD,GEAR SHIFT LINK
2552538B00
€ 21.00
45
0914006011
ref: 45
NUT
0914006011
€ 1.50
46
0831000067
ref: 46
NUT
0831000067
€ 2.50
47
0150006207
ref: 47
BOLT
0150006207
€ 2.00
48
0918112167
ref: 48
SHIM(12X20X1)
0918112167
€ 2.50
49
0833131126
ref: 49
08331-3112A
CIRCLIP,12 MM
0833131126
€ 2.00
50
3772038B00
ref: 50
BASE ASSY,NEUTRAL SW TERMINAL
3772038B00
€ 94.50
51
0928035006
ref: 51
O RING(D:2.4,ID:35.5)
0928035006
€ 4.00
52
0831320053
ref: 52
08313-2005A
NUT
0831320053
€ 1.50
53
0910805010
ref: 53
BOLT,STUD
0910805010
€ 2.50
54
0920904021
ref: 54
PIN
0920904021
€ 9.00
55
0944002003
ref: 55
SPRING
0944002003
€ 12.00
