STAND - REAR BRAKE

VS1400GLP INTRUDER 1999 (X) USA (E03)

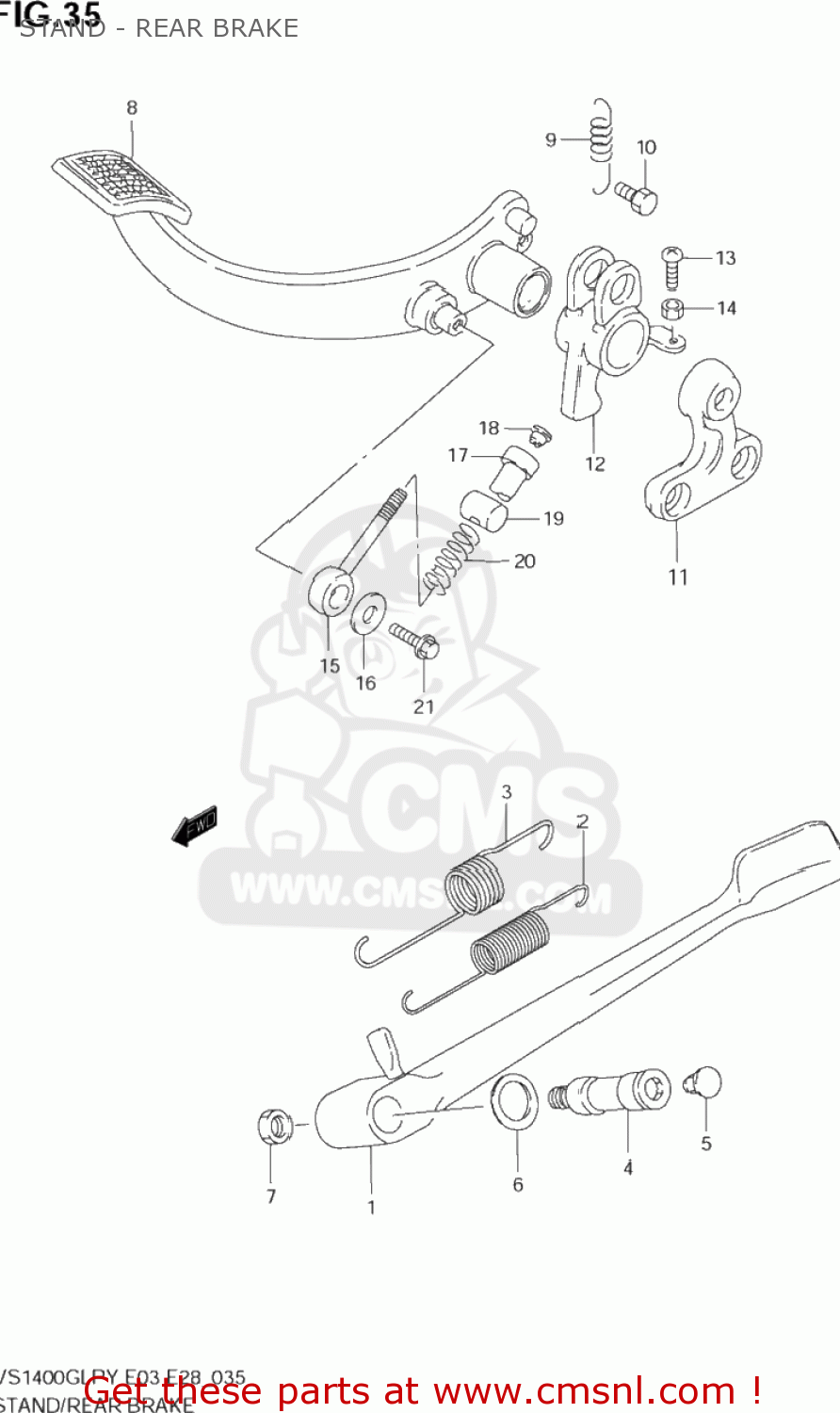

Stand - rear brake diagram VS1400GLP INTRUDER 1999 (X) USA (E03)

STAND - REAR BRAKE VS1400GLP INTRUDER 1999 (X) USA (E03)

STAND - REAR BRAKE VS1400GLP INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4231038B00
ref: 1-1
42310-38B01

STAND COMP,PROP

€ 129.00

1-2

4231038B01
ref: 1-2

STAND,PROP

€ 129.00

1-3

4231038B90
ref: 1-3

STAND,PROP

€ 141.50

2

0944316014
ref: 2

SPRING

€ 8.50

3

0944322007
ref: 3

SPRING

€ 7.00

4

4234138B01
ref: 4

BOLT,PROP STAND

€ 9.00

5

0925008014
ref: 5

CAP(OD:12)

€ 3.50

6-1

0822115245
ref: 6-1
09181-15158

THRUST WASHER

€ 2.50

6-2

0918115158
ref: 6-2

SHIM(15X24X0.5)

€ 2.50

7

0914010044
ref: 7

NUT

€ 2.50

8

4310038B00
ref: 8

PEDAL ASSY,BRAKE

€ 81.50

9

0944310033
ref: 9

SPRING

€ 3.50

10

0912806044
ref: 10

SCREW(6X10)

€ 1.50

11

4351938B01
ref: 11

BRACKET,BRAKE PEDAL BOSS

€ 76.50

12

4312038B02
ref: 12

ARM,RR BRAKE

€ 92.50

13

0912505070
ref: 13

SCREW(5X14)

€ 3.00

14

0831000057
ref: 14

NUT

€ 2.50

15

4327138B00
ref: 15

LINK,BRAKE PEDAL

€ 44.00

16

0916006036
ref: 16

WASHER(6.5X18X1.5)

€ 1.50

17

4327238B00
ref: 17

NUT,BRAKE PEDAL LINK

€ 15.50

18

0925005008
ref: 18

CAP(OD:10)

€ 5.00

19

0920913008
ref: 19

PIN

€ 5.50

20

0944009029
ref: 20

SPRING

€ 4.00

21

0154706167
ref: 21

BOLT

€ 2.00
