CLUTCH CYLINDER
VS1400GLP INTRUDER 2003(K3) USA (E03)

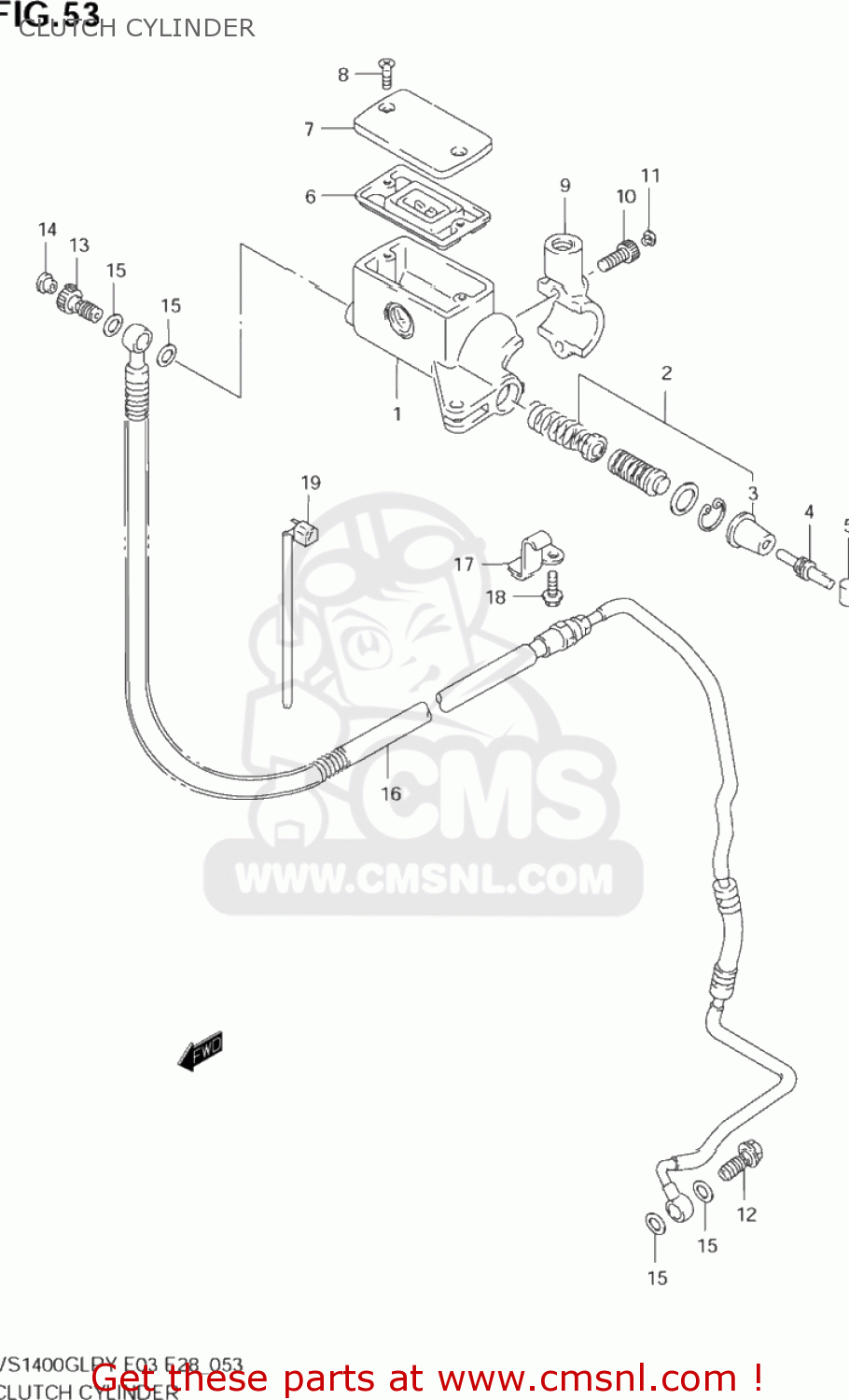

Clutch cylinder diagram VS1400GLP INTRUDER 2003(K3) USA (E03)
CLUTCH CYLINDER VS1400GLP INTRUDER 2003(K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5980038B30
ref: 1
CYLINDER ASSEMBLY,CLUTCH MASTER
€ 428.00
1
5980038B30
ref: 1
CYLINDER ASSEMBLY,CLUTCH MASTER
€ 428.00
2
5980008810
ref: 2
PISTON & CUP SET
€ 36.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
5987138A00
ref: 4
PUSH ROD
€ 6.50
5
5989208A00
ref: 5
BUSH
€ 5.50
6
5966749460
ref: 6
5966749460
7
5966938B10
ref: 7
CAP
€ 67.50
8
0212204127
ref: 8
SCREW
€ 2.00
9
5967138A00
ref: 9
HOLDER
€ 37.50
10
0713006207
ref: 10
BOLT
€ 3.50
11
0925005008
ref: 11
CAP(OD:10)
€ 5.00
12
0936010039
ref: 12
09360-10061
BOLT UNION
€ 6.50
13
0936010027
ref: 13
BOLT UNION
€ 9.00
14
0925008014
ref: 14
CAP(OD:12)
€ 3.50
15
0916110009
ref: 15
WASHER(10X15X1.5)
€ 2.00
16
5990038B30
ref: 16
HOSE ASSY,CLUTCH
€ 388.50
16
5990038B30
ref: 16
HOSE ASSY,CLUTCH
€ 388.50
17
5954238B00
ref: 17
CLAMP,CLUTCH HOSE
€ 5.50
18
0155006103
ref: 18
01550-0610A
BOLT
€ 2.50
19
0940718402
ref: 19
CLAMP(L:165)
€ 2.50
