CRANKCASE COVER
VS1400GLP INTRUDER 2003(K3) USA (E03)

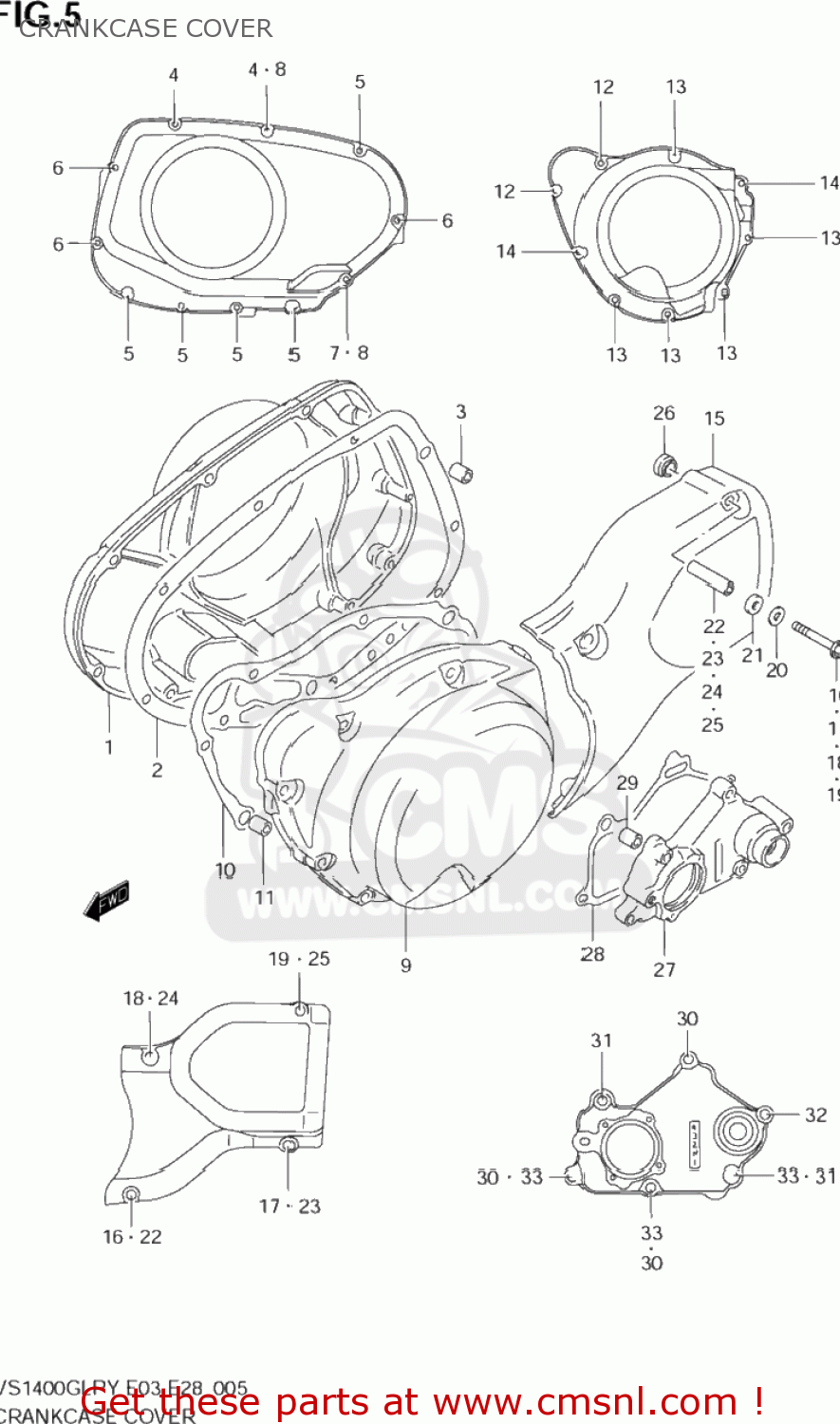

Crankcase cover diagram VS1400GLP INTRUDER 2003(K3) USA (E03)
CRANKCASE COVER VS1400GLP INTRUDER 2003(K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134138B00
ref: 1-1
11341-38B01
COVER,CLUTCH
€ 381.50
1-1
1134138B00
ref: 1-1
11341-38B01
COVER,CLUTCH
€ 381.50
1-1
1134138B00
ref: 1-1
11341-38B01
COVER,CLUTCH
€ 381.50
1-2
1134138B01
ref: 1-2
COVER,CLUTCH
€ 381.50
2-1
1148238B00H17
ref: 2-1
11482-38B20
GASKET,CLUTCH COVER (NAS)
€ 22.50
2-2
1148238B10
ref: 2-2
11482-38B20
GASKET,CLUTCH COVER (NAS)
€ 22.50
3
0421109189
ref: 3
PIN
€ 2.00
4-1
0154706257
ref: 4-1
BOLT
€ 2.50
4-2
0154706307
ref: 4-2
BOLT
€ 2.50
5
0154706307
ref: 5
BOLT
€ 2.50
6
0154706407
ref: 6
BOLT
€ 2.50
7
0154706557
ref: 7
BOLT
€ 2.50
8-1
0916806024
ref: 8-1
GASKET(5.8X11X1.2) (NAS)
€ 2.00
8-2
0916806023
ref: 8-2
GASKET(5.8X13X1.2) (NAS)
€ 2.00
9
1135138B00
ref: 9
COVER,GENERATOR
€ 330.00
10
1148338B00H17
ref: 10
11483-38B10
GASKET,GENERATOR COVER (NAS)
€ 13.50
11-1
0920611005
ref: 11-1
09206-11017
PIN (11X20)(SUS)
€ 6.50
11-2
0920611017
ref: 11-2
PIN(8.4X11X20)
€ 6.50
12
0154706307
ref: 12
BOLT
€ 2.50
13
0154706357
ref: 13
BOLT
€ 2.50
14
0154706457
ref: 14
BOLT
€ 2.50
15
1136138B00
ref: 15
COVER,SECONDARY GEAR CASE
€ 156.50
16
0154706357
ref: 16
BOLT
€ 2.50
17
0154706407
ref: 17
BOLT
€ 2.50
18
0154706607
ref: 18
BOLT
€ 2.50
19
0154706607
ref: 19
BOLT
€ 2.50
20-1
0916006097
ref: 20-1
09160-06125
WASHER
€ 2.00
20-2
0916006125
ref: 20-2
WASHER(6.5X14X1.6)
€ 2.00
21
0916109005
ref: 21
WASHER(8.7X16X5)
€ 2.50
22
0918006301
ref: 22
SPACER(6.5X9X21)
€ 6.00
23
0918006302
ref: 23
SPACER(6.5X9X26)
€ 7.00
24
0918006303
ref: 24
SPACER(6.5X9X49)
€ 9.50
25-1
0918006183
ref: 25-1
09180-06281
SPACER (L=45.9)
€ 7.00
25-2
0918006281
ref: 25-2
SPACER(6.5X9X45.9)
€ 7.00
26
0916109005
ref: 26
WASHER(8.7X16X5)
€ 2.50
27-1
1137138B01
ref: 27-1
COVER,GEAR SHIFT
€ 66.50
27-2
1137138B10
ref: 27-2
11371-38B20
COVER,GEAR SHIFT
€ 76.50
27-3
1137138B10
ref: 27-3
11371-38B20
COVER,GEAR SHIFT
€ 76.50
27-4
1137138B20
ref: 27-4
COVER,GEAR SHIFT
€ 76.50
28-1
1148538B00H17
ref: 28-1
11485-38B20
GASKET,GEAR SHIFT COVER (NAS)
€ 7.50
28-2
1148538B10
ref: 28-2
11485-38B20
GASKET,GEAR SHIFT COVER (NAS)
€ 7.50
29
0421109109
ref: 29
PIN
€ 2.00
30
0154706257
ref: 30
BOLT
€ 2.50
31
0154706357
ref: 31
BOLT
€ 2.50
32
0154706457
ref: 32
BOLT
€ 2.50
33-1
0916806024
ref: 33-1
GASKET(5.8X11X1.2) (NAS)
€ 2.00
33-2
0916806023
ref: 33-2
GASKET(5.8X13X1.2) (NAS)
€ 2.00
