CYLINDER HEAD (FRONT)

VS1400GLP INTRUDER 2003(K3) USA (E03)

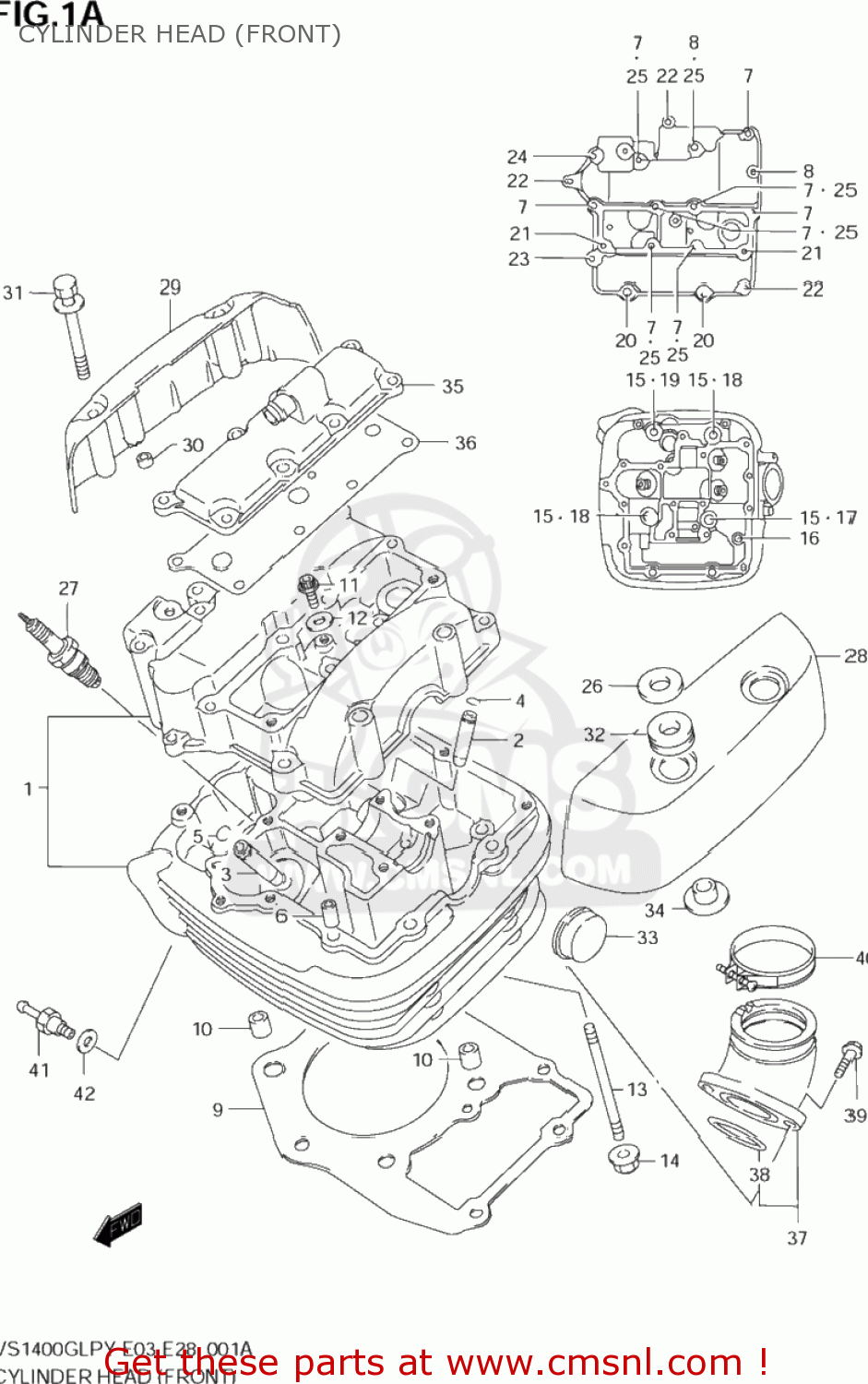

Cylinder head (front) diagram VS1400GLP INTRUDER 2003(K3) USA (E03)

CYLINDER HEAD (FRONT) VS1400GLP INTRUDER 2003(K3) USA (E03)
CYLINDER HEAD (FRONT) VS1400GLP INTRUDER 2003(K3) USA (E03)
CYLINDER HEAD (FRONT) VS1400GLP INTRUDER 2003(K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1110138B20
ref: 1-1
HEAD ASSEMBLY,CYLINDER,FRONT
€ 1,012.00
1-2
1110138B50
ref: 1-2
HEAD ASSY,CYLINDER FR
€ 1,059.00
2
1111538B70
ref: 2
GUIDE,INTAKE VALVE
1111538B70
€ 18.50
3
1111545740
ref: 3
GUIDE,INTAKE VALVE
1111545740
€ 25.50
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0938110003
ref: 5
RING,SNAP
0938110003
€ 2.50
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7
0910306064
ref: 7
BOLT(6X60)
0910306064
€ 2.50
8
0910306102
ref: 8
BOLT(6X55)
0910306102
€ 2.50
9
1114138B00
ref: 9
GASKET,CYLINDER HEAD FR (NAS)
1114138B00
€ 49.00
10
0421113189
ref: 10
PIN
0421113189
€ 2.50
11-1
0712006127
ref: 11-1
BOLT
0712006127
€ 3.00
11-2
0712006123
ref: 11-2
07120-0612B
BOLT
€ 3.50
12
0916806018
ref: 12
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
13
0910808142
ref: 13
BOLT,STUD
0910808142
€ 3.00
14
0831610087
ref: 14
NUT
0831610087
€ 2.50
15-1
0916010039
ref: 15-1
WASHER(10.5X22X2.3)
0916010039
€ 2.50
15-2
0916010060
ref: 15-2
09160-10039
WASHER (10.5X22X2.3)
0916010060
€ 2.50
16
0910308099
ref: 16
BOLT(8X70)
0910308099
€ 6.00
17
0910310178
ref: 17
BOLT(10X180)
0910310178
€ 12.50
18
0910310179
ref: 18
BOLT(10X190)
0910310179
€ 12.50
19
0910310180
ref: 19
BOLT(10X200)
0910310180
€ 10.50
20
0910308213
ref: 20
BOLT(8X268)
0910308213
€ 22.50
21-1
0155006207
ref: 21-1
BOLT
0155006207
€ 2.50
21-2
0155006203
ref: 21-2
01550-0620A
BOLT
0155006203
€ 2.50
22-1
0155006307
ref: 22-1
BOLT
0155006307
€ 2.00
22-2
0155006303
ref: 22-2
01550-0630A
BOLT
0155006303
€ 2.50
23-1
0155006357
ref: 23-1
BOLT
0155006357
€ 2.50
23-2
0155006353
ref: 23-2
01550-0635A
BOLT
0155006353
€ 2.50
24-1
0155006707
ref: 24-1
BOLT
0155006707
€ 3.00
24-2
0155006703
ref: 24-2
01550-0670B
BOLT
€ 2.50
25
0916806023
ref: 25
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
26-1
0916008098
ref: 26-1
09160-08130
WASHER (8.2X24X1.6)
€ 2.00
26-2
0916008130
ref: 26-2
WASHER(8.5X24X1.6)
0916008130
€ 2.00
27-1
0948200334
ref: 27-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
27-10
0948200331111
ref: 27-10
09482-00331
SPARK PLUG X27EPR-U9
0948200331111
€ 4.00
27-2
0948200335111
ref: 27-2
09482-00335
SPARK PLUG X24EPR-U9
€ 4.00
27-3
0948200352
ref: 27-3
09482-00354
SPARK PLUG DP7EA-9
€ 4.00
27-4
0948200353111
ref: 27-4
09482-00353
SPARK PLUG X22EP-U9
€ 0.00
27-5
0948200328
ref: 27-5
09482-00330
SPARK PLUG DP9EA-9
0948200328
€ 4.00
27-6
0948200329111
ref: 27-6
SPARK PLUG X27EP-U9
€ 4.00
27-7
0948200354
ref: 27-7
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
27-8
0948200355111
ref: 27-8
09482-00354
SPARK PLUG X22EPR-U9
€ 4.00
27-9
0948200330
ref: 27-9
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
28
1117138B00
ref: 28
CAP,CYLINDER HEAD COVER FL
1117138B00
€ 145.50
29
1117238B00
ref: 29
CAP,CYLINDER HEAD COVER FR
1117238B00
€ 146.50
30
1127324B00
ref: 30
CUSHION,R CAP
1127324B00
€ 4.00
31-1
0121406607
ref: 31-1
01244-06607
BOLT
€ 3.50
31-2
0124406607
ref: 31-2
BOLT
0124406607
€ 3.50
32
0932013015
ref: 32
CUSHION
0932013015
€ 3.00
33
0924130008
ref: 33
PLUG(OD:30)
0924130008
€ 7.00
34
0930108007
ref: 34
BUSH
0930108007
€ 4.00
35
1118038B10
ref: 35
COVER,BREATHER
€ 32.00
36
1117738B01H17
ref: 36
GASKET,BREATHER COVER (NAS)
1117738B01H17
€ 19.00
37-1
1310138B00
ref: 37-1
13101-38B01
PIPE ASSEMBLY,INTAKE,FRONT
€ 87.50
37-2
1310138B01
ref: 37-2
PIPE ASSY,INTAKE FR
1310138B01
€ 87.50
38
0928042003
ref: 38
O RING(D:2.4,ID:41.7)
0928042003
€ 8.50
39
0155006163
ref: 39
01550-0616A
BOLT
0155006163
€ 2.50
40
0940252501
ref: 40
CLAMP
0940252501
€ 9.00
41
0936206002
ref: 41
BOLT UNION
0936206002
€ 11.00
42
0916806018
ref: 42
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
