FUEL TANK (MODEL K3)

VS1400GLP INTRUDER 2003(K3) USA (E03)

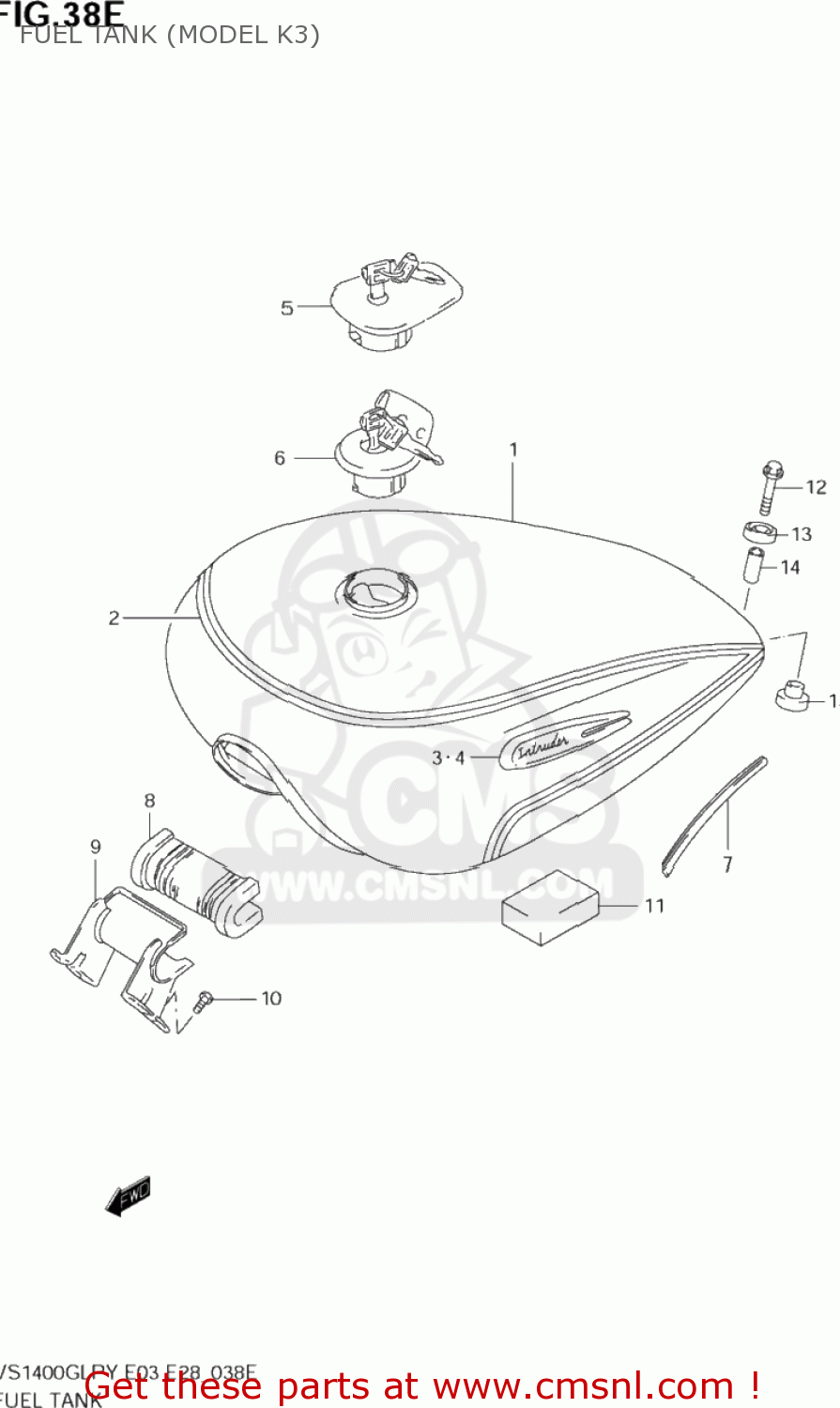

Fuel tank (model k3) diagram VS1400GLP INTRUDER 2003(K3) USA (E03)

FUEL TANK (MODEL K3) VS1400GLP INTRUDER 2003(K3) USA (E03)

FUEL TANK (MODEL K3) VS1400GLP INTRUDER 2003(K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4910038BB0KT7
ref: 1-1

TANK ASSY,FUEL

€ 615.50

1-2

4910038BB0KT8
ref: 1-2

TANK ASSY,FUEL

€ 615.50

1-3

4910038BC0KT7
ref: 1-3

TANK ASSY,FUEL

€ 0.00

1-4

4910038BC0KT8
ref: 1-4

TANK ASSY,FUEL

€ 0.00

2-1

6811038BA0LJ9
ref: 2-1

TAPE SET,FUEL TANK

€ 188.00

2-2

6811038BA0LK1
ref: 2-2

TAPE SET,FUEL TANK

€ 188.00

3

6811138B00
ref: 3

EMBLEM,FUEL TANK,R

€ 51.50

4

6812138B00
ref: 4

EMBLEM,FUEL TANK,L

€ 51.50

5-1

4420038820
ref: 5-1

CAP SET,FUEL TANK

€ 107.50

5-2

4420038860
ref: 5-2

CAP SET,FUEL TANK

€ 135.50

5-3

4420038870
ref: 5-3

ENGRAVED GAS CAP SET,G

€ 136.50

6

4420024820
ref: 6

CAP SET,FUEL TANK

€ 150.50

7

6824104X5000B
ref: 7

MOLDING

€ 23.00

8

4451138B01
ref: 8

CUSHION,FUEL TANK FR

€ 12.00

9

4425038B00019
ref: 9

BRACKET,FUEL TANK FR

€ 32.00

10

0211276163
ref: 10
02112-7616A

SCREW

€ 2.00

11

4451238B00
ref: 11
56314-48B10

CUSHION

€ 6.00

12

0155006353
ref: 12
01550-0635A

BOLT

€ 2.50

13

0932014013
ref: 13

CUSHION

€ 3.00

14

0918006274
ref: 14

SPACER(6.5X9X22.5)

€ 4.50

15

0932010020
ref: 15

CUSHION

€ 4.00
