FRAME COVER (MODEL K2/K3)

VS1400GLP INTRUDER 2003(K3) USA (E03)

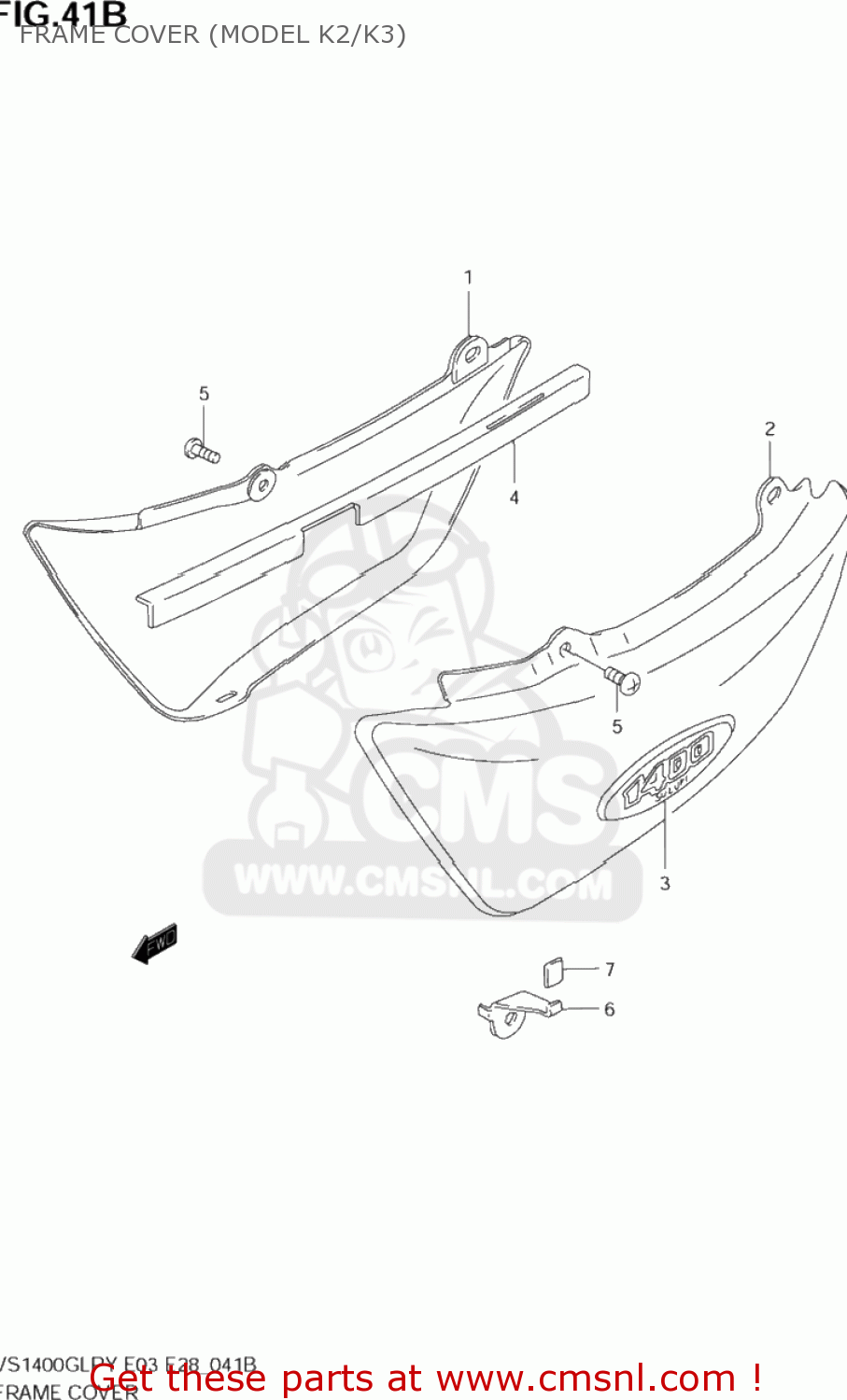

Frame cover (model k2/k3) diagram VS1400GLP INTRUDER 2003(K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711038B0033J
ref: 1-1

4711038B0033J

1-2

4711038B00YD8
ref: 1-2

COVER,FRAME,R(SILVER)

€ 134.00

2-1

4721038B0033J
ref: 2-1
47210-38B00-YAY

COVER COMP,FRAME,LEFT

€ 132.50

2-2

4721038B00YD8
ref: 2-2

COVER,FRAME,L(SILVER)

€ 115.00

3-1

6813138B30HF8
ref: 3-1

EMBLEM,FRAME COVER

€ 28.50

3-2

6813138B30HF7
ref: 3-2

EMBLEM,FRAME COVER

€ 28.50

3-3

6813138B30LD7
ref: 3-3

EMBLEM,FRAME C

€ 37.00

3-4

6813138B30LD6
ref: 3-4

EMBLEM,FRAME COVER

€ 28.50

4716538B00
ref: 4

PROTECTOR,FRAME COVER,R

€ 8.00

0214206123
ref: 5
02142-0612A

SCREW 6X12

€ 2.00

4717138B00
ref: 6

HOOK,FRAME COVER,L

€ 5.50

4717538B00
ref: 7

CUSHION,FRAME COVER HOOK

€ 2.50
