FRONT FENDER (MODEL Y/K1/K2/K3)

VS1400GLP INTRUDER 2003(K3) USA (E03)

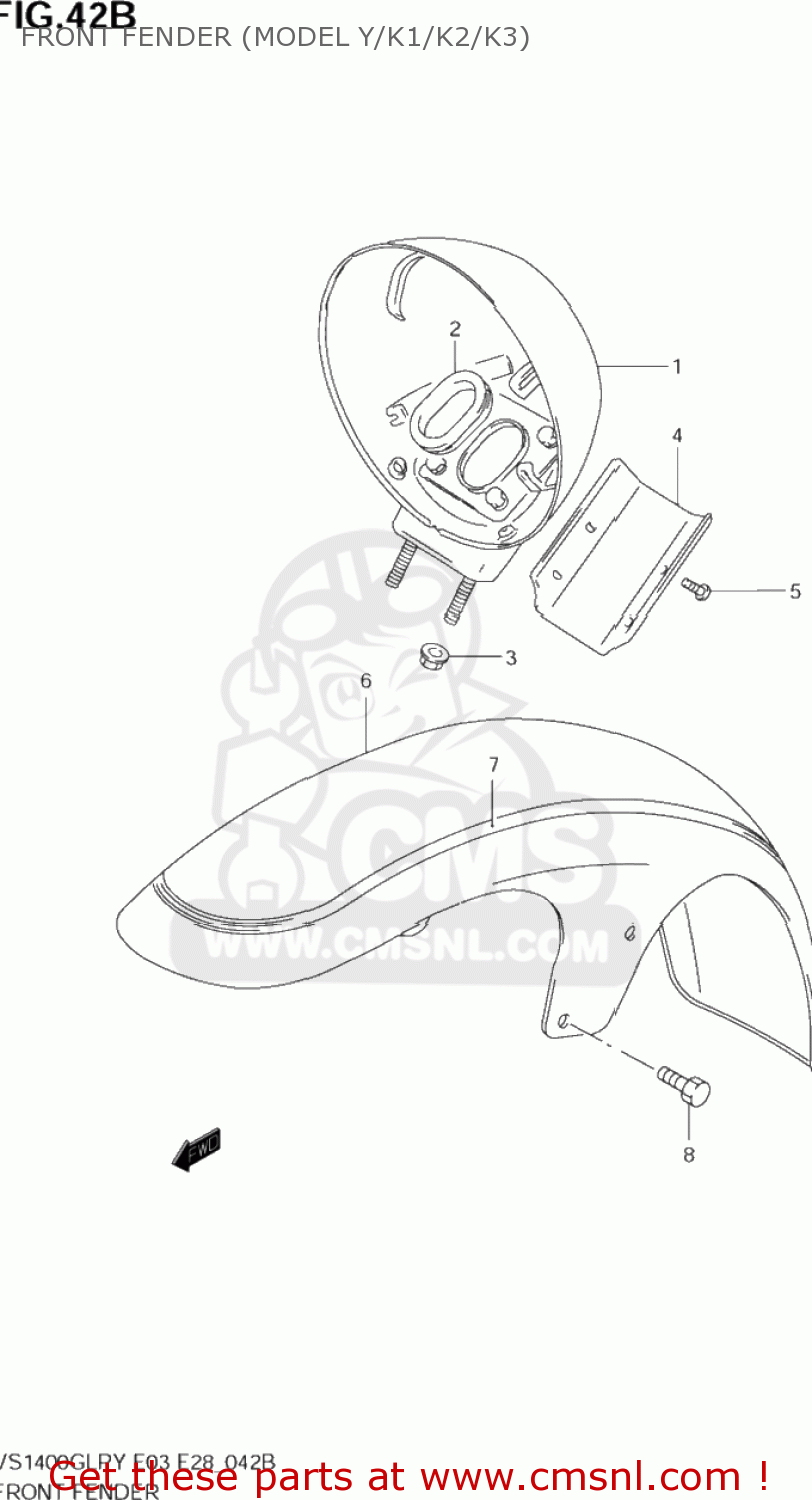

Front fender (model y/k1/k2/k3) diagram VS1400GLP INTRUDER 2003(K3) USA (E03)

FRONT FENDER (MODEL Y/K1/K2/K3) VS1400GLP INTRUDER 2003(K3) USA (E03)

FRONT FENDER (MODEL Y/K1/K2/K3) VS1400GLP INTRUDER 2003(K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181038B00
ref: 1

HOUSING,HEADLAMP

€ 136.50

2

5181938B00
ref: 2

GROMMET

€ 6.50

3

0831931063
ref: 3
08319-3106A

NUT

€ 2.50

4

5181538B00
ref: 4

COVER,HEADLAMP HSG

€ 9.50

5

0214204107
ref: 5

SCREW

€ 1.50

6-1

5310038B40N3V
ref: 6-1

FENDER ASSEMBLY,FRONT

€ 417.00

6-2

5310038B40N3W
ref: 6-2

FENDER ASSY,FR

€ 281.50

6-3

5310038B40EJ1
ref: 6-3

FENDER ASSY,FR

€ 0.00

6-4

5310038B40ER5
ref: 6-4

FENDER, FRONT

€ 330.50

6-5

5310038B40FH5
ref: 6-5

FENDER ASSY,FR

€ 0.00

6-6

5310038B40HE5
ref: 6-6

FENDER ASSY,FR

€ 0.00

6-7

5310038B40KT7
ref: 6-7

FENDER ASSY,FR

€ 377.00

6-8

5310038B40KT8
ref: 6-8

FENDER ASSY,FR

€ 0.00

7-1

6815538B00N4W
ref: 7-1

TAPE,FR FENDER STRIPING

€ 131.50

7-2

6815538B00N4Y
ref: 7-2

TAPE,FRONT FENDER STRIPE

€ 153.50

7-3

6815538B00ET7
ref: 7-3

TAPE,FR FENDER

€ 0.00

7-4

6815538B00ET8
ref: 7-4

TAPE,FR FENDER

€ 131.50

7-5

6815538B00HF6
ref: 7-5

TAPE SET

€ 0.00

7-6

6815538B00HF5
ref: 7-6

TAPE SET

€ 0.00

7-7

6815538B00LJ9
ref: 7-7

TAPE SET

€ 144.00

7-8

6815538B00LK1
ref: 7-8

TAPE,FR FENDER

€ 155.50

8

0157006163
ref: 8
01570-0616A

BOLT

€ 2.50
