CARBURETOR (REAR)

VS700GLEF INTRUDER 1986 (G) USA (E03)

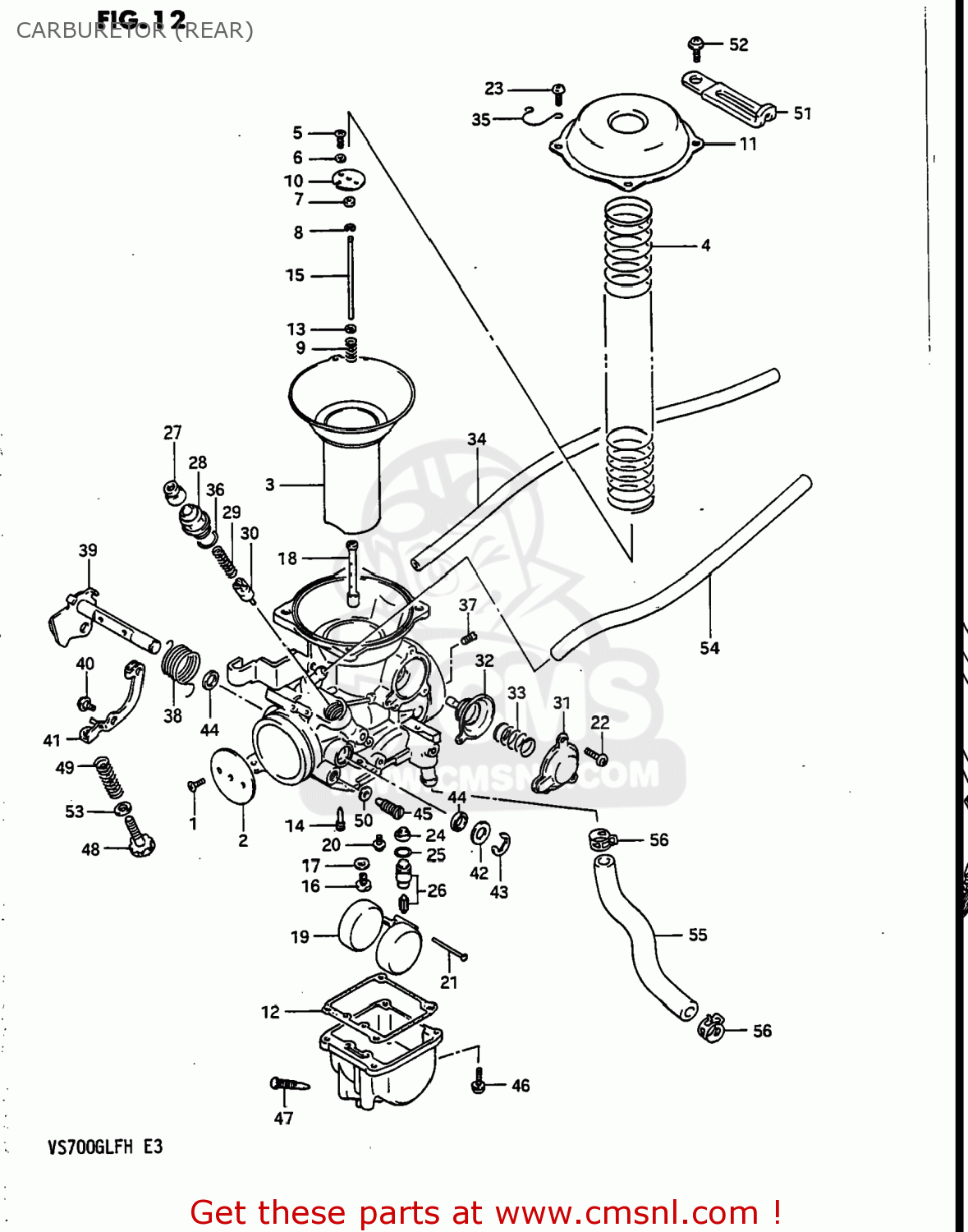

Carburetor (rear) diagram VS700GLEF INTRUDER 1986 (G) USA (E03)

CARBURETOR (REAR) VS700GLEF INTRUDER 1986 (G) USA (E03)
CARBURETOR (REAR) VS700GLEF INTRUDER 1986 (G) USA (E03)
CARBURETOR (REAR) VS700GLEF INTRUDER 1986 (G) USA (E03)
prices are in EUR
ref
part #
description
quantity

1322038A00
ref:
CARBURETOR ASSEMBLY,REAR (B
€ 491.00

1322038A00
ref:
CARBURETOR ASSEMBLY,REAR (B
€ 491.00

1322038A40
ref:
13220-39A00
CARBURETOR ASSEMBLY
€ 302.00

1322038A40
ref:
13220-39A00
CARBURETOR ASSEMBLY
€ 302.00

1322038A10
ref:
CARBURETOR ASSEMBLY
€ 230.50

1322038A70
ref:
(CA) CARBURETOR,REAR
€ 276.00
1
1360444080
ref: 1
SCREW
1360444080
€ 3.50
2
1355138A00
ref: 2
VALVE,THROTTLE
€ 0.00
3
1350038A10
ref: 3
DIAPHRAGM,CARBURETOR
1350038A10
€ 222.50
4
1350305A10
ref: 4
SPRING,DIAPHRAGM
1350305A10
€ 12.00
5
0211203066
ref: 5
02112-0306B
SCREW
€ 2.00
6
0832121036
ref: 6
08321-2103B
LOCK WASHER
0832121036
€ 1.50
7
1338747010
ref: 7
RING
1338747010
€ 7.50
8
1339410010
ref: 8
CLIP
1339410010
€ 4.50
9
1338844030
ref: 9
SPRING
1338844030
€ 6.00
10
1338937400
ref: 10
PLATE
1338937400
€ 5.50
11
1350238A10
ref: 11
13502-45CE0
COVER,DIAPHRAGM
€ 37.50
12
1325138A10
ref: 12
GASKET,FLOAT CHAMBER (NAS)
1325138A10
€ 8.00
13
1338244030
ref: 13
WASHER
1338244030
€ 3.50
14
0949240014
ref: 14
JET(40)
0949240014
€ 8.50
15
1338338A10
ref: 15
NEEDLE JET
€ 9.00
16
0949126012
ref: 16
JET,MAIN(132.5)
0949126012
€ 11.50
17
1333244080
ref: 17
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
18
0949400502
ref: 18
JET,NEEDLE
€ 18.00
19
1325223010
ref: 19
FLOAT
1325223010
€ 19.00
20
1360205A10
ref: 20
SCREW
1360205A10
€ 4.00
21
1325492311
ref: 21
PIN,FLOAT
1325492311
€ 2.00
22
0211204106
ref: 22
02112-0410A
SCREWM4X0.7X10
€ 1.00
23
0211204086
ref: 23
02112-0408A
SCREW
€ 2.00
24
1337665010
ref: 24
13376-19F00
FILTER
€ 6.50
25
1337444080
ref: 25
13374-35C00
O-RING,NEEDLE VALVE
1337444080
€ 6.00
26
1337001401
ref: 26
VALVE ASSY,NEEDLE
1337001401
€ 57.50
27
1368104010
ref: 27
CAP
1368104010
€ 3.00
28
1341843410
ref: 28
HOLDER,GUIDE
1341843410
€ 6.50
29
1341722010
ref: 29
SPRING
1341722010
€ 3.00
30
1341138400
ref: 30
13411-01400
PLUNGER
€ 11.50
31
1348438A10
ref: 31
COVER
€ 16.00
32
1348005A10
ref: 32
DIAPHRAGM ASSY
1348005A10
€ 54.50
33
1348105A10
ref: 33
13481-45C10
SPRING
€ 5.50
34
1368438A20
ref: 34
44420-44AR0
HOSE
€ 13.00
35
1369202500
ref: 35
CLIP
€ 7.00
36
1327847090
ref: 36
O RING
1327847090
€ 2.00
37
0949260007
ref: 37
09492-60012
JET
€ 7.50
38-1
1357338A10
ref: 38-1
SPRING
€ 0.00
38-2
1357338A11
ref: 38-2
SPRING,SHAFT RETURN
€ 0.00
39
1355038A10
ref: 39
SHAFT ASSEMBLY
€ 0.00
40
1360205A30
ref: 40
SCREW
1360205A30
€ 4.50
41
1355438A10
ref: 41
LEVER,ASSY
1355438A10
€ 25.00
42
1355747070
ref: 42
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
43
1361744080
ref: 43
E RING
1361744080
€ 3.50
44
1355605A10
ref: 44
SEAL,THROTTLE SHAFT
1355605A10
€ 3.50
45
1360573000
ref: 45
SCREW
1360573000
€ 10.50
46
1360104148
ref: 46
SCREW
1360104148
€ 2.50
47
1324713A00
ref: 47
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
48
1326738A10
ref: 48
13267-39E50
ADJUSTER
1326738A10
€ 13.00
49
1326849310
ref: 49
13271-93011
SPRING
€ 4.50
50
1353138A00
ref: 50
09168-05010
WASHER
€ 2.00
51
1367105A20
ref: 51
09404-06433
CLIP
€ 3.00
52
1360238A20
ref: 52
02142-0408B
SCREW
€ 1.50
53
1327737100
ref: 53
WASHER
1327737100
€ 2.00
54
1368038A10
ref: 54
13683-38B01
HOSE
€ 19.50
54
1368038A10
ref: 54
13683-38B01
HOSE
€ 19.50
55
1368338A00
ref: 55
13683-38E01
HOSE
€ 21.50
56
0940113408
ref: 56
09401-13417
CLIP
€ 2.50
