FRONT MASTER CYLINDER (VS700GLPG/GLEPG/GLPH/GLEPH)

VS700GLEF INTRUDER 1986 (G) USA (E03)

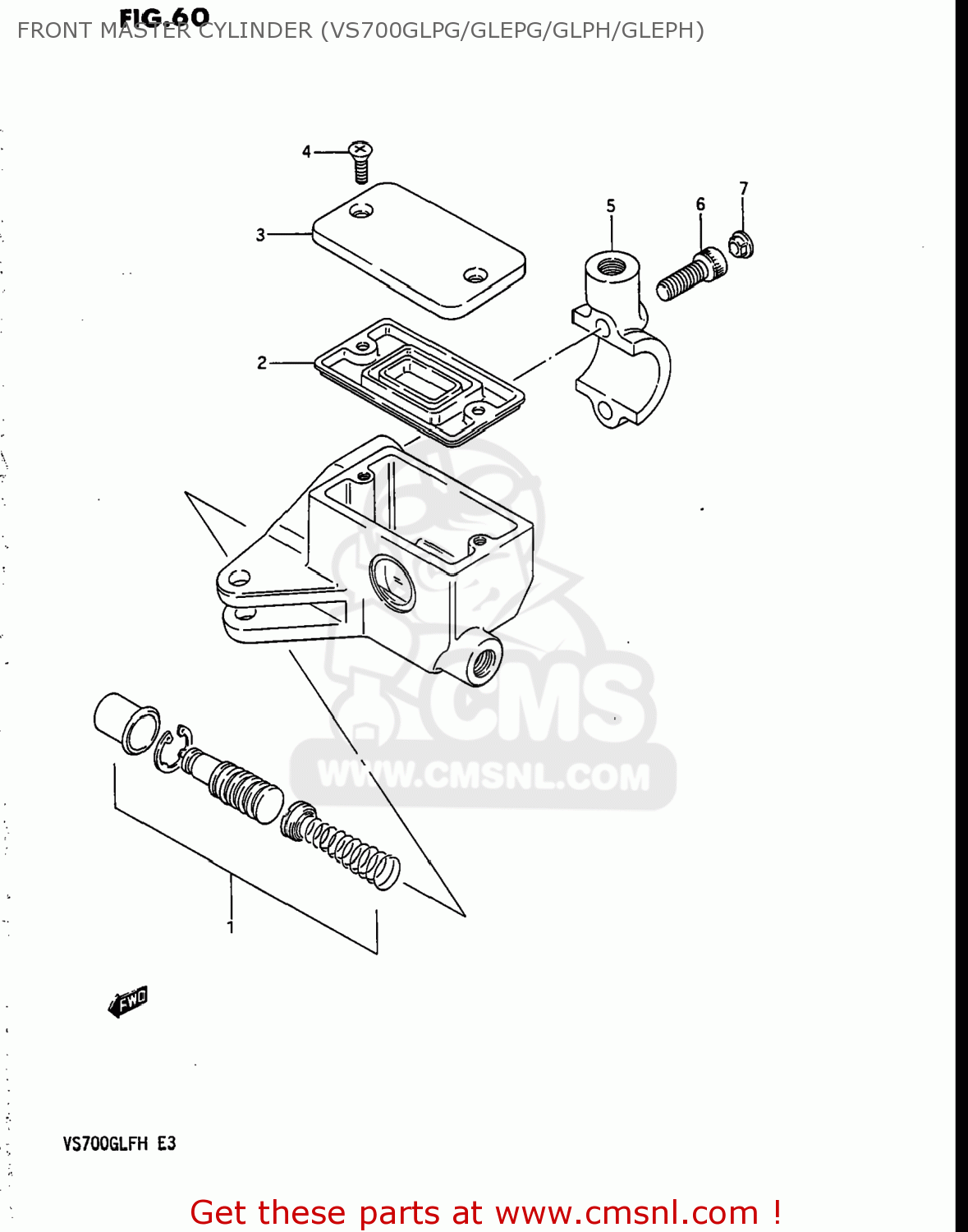

Front master cylinder (vs700glpg/glepg/glph/gleph) diagram VS700GLEF INTRUDER 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

5960038A51
ref:
59600-38X51

CYLINDER ASSEMBLY,FRONT MASTER

€ 328.00

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

5966749460
ref: 2

5966749460

5966938A30
ref: 3

CAP

€ 45.50

5969138A00
ref: 4
02122-04127

SCREW,RESERVOIR CAP

€ 2.00

5967138A00
ref: 5

HOLDER

€ 37.50

0711006208
ref: 6
07130-06207

BOLT ,6X20

€ 3.50

0925005008
ref: 7

CAP(OD:10)

€ 5.00
