STEERING STEM (MODEL H)

VS700GLEF INTRUDER 1986 (G) USA (E03)

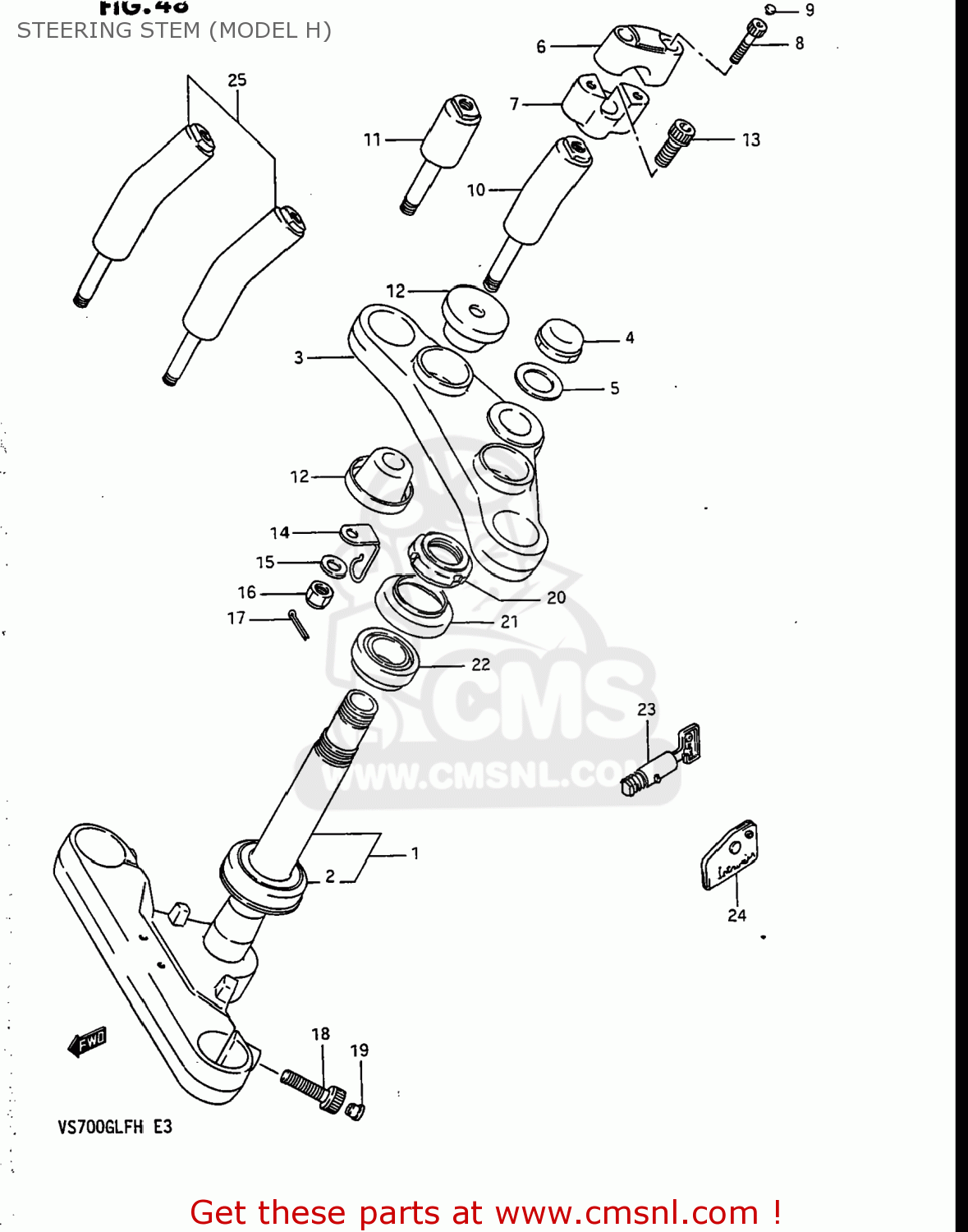

Steering stem (model h) diagram VS700GLEF INTRUDER 1986 (G) USA (E03)

STEERING STEM (MODEL H) VS700GLEF INTRUDER 1986 (G) USA (E03)

STEERING STEM (MODEL H) VS700GLEF INTRUDER 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5141038A01
ref: 1
51410-38A21

STEM,STEERING

€ 706.00

2

0926530005
ref: 2
09265-30009

BEARING

€ 49.50

3

5131138A01
ref: 3

STEM HEAD,STEERING

€ 222.00

4

5135338A01
ref: 4
51353-24B00

NUT,CAP

€ 21.50

5

5135438A01
ref: 5
51356-24B01

WASHER

€ 3.00

6

5621138A01
ref: 6

HOLDER,HANDLE UPR

€ 45.00

7

5622138A01
ref: 7

HOLDER,HANDLE LWR

€ 65.00

8

0711008305
ref: 8
07130-0830A

BOLT, REAR (8X30)

€ 3.00

9

0925006009
ref: 9

CAP(OD:14.5)

€ 3.50

10

5623138A40
ref: 10

STAY,HANDLE

€ 41.50

11

5623138A50
ref: 11

STAY,HANDLE

€ 49.50

12

5624038A40
ref: 12
56240-38A42

CUSHION

€ 31.50

13

0711010258
ref: 13
07130-10257

BOLT

€ 3.00

14

3493838A11
ref: 14

CLAMP,SPEEDOMETER CABLE

€ 23.50

15

5135438A40
ref: 15

WASHER

€ 9.00

16

0915910027
ref: 16

NUT

€ 3.00

17

0411120208
ref: 17
04111-2020A

PIN 20X20

€ 1.50

18

5135238A00
ref: 18
07130-10307

BOLT,STEERING STEM HEAD

€ 4.50

19

0925008014
ref: 19

CAP(OD:12)

€ 3.50

20

5163128000
ref: 20

NUT,STEERING STEM(25X44X10)

€ 12.50

21

5164349001
ref: 21
51643-49002

DUST SEAL,STEERING,UPPER

€ 7.50

22

0926525008
ref: 22
09265-25019

TAPER,ROLLER BEARING

€ 48.50

23

5190038810
ref: 23

LOCK SET,STEERING

€ 168.50

24

5192038A00
ref: 24

CASE,STEERING KEY

€ 10.50

25

5610038820
ref: 25

STAY SET,HANDLE

€ 123.50
