RADIATOR
VS700GLEF INTRUDER 1986 (G) USA (E03)

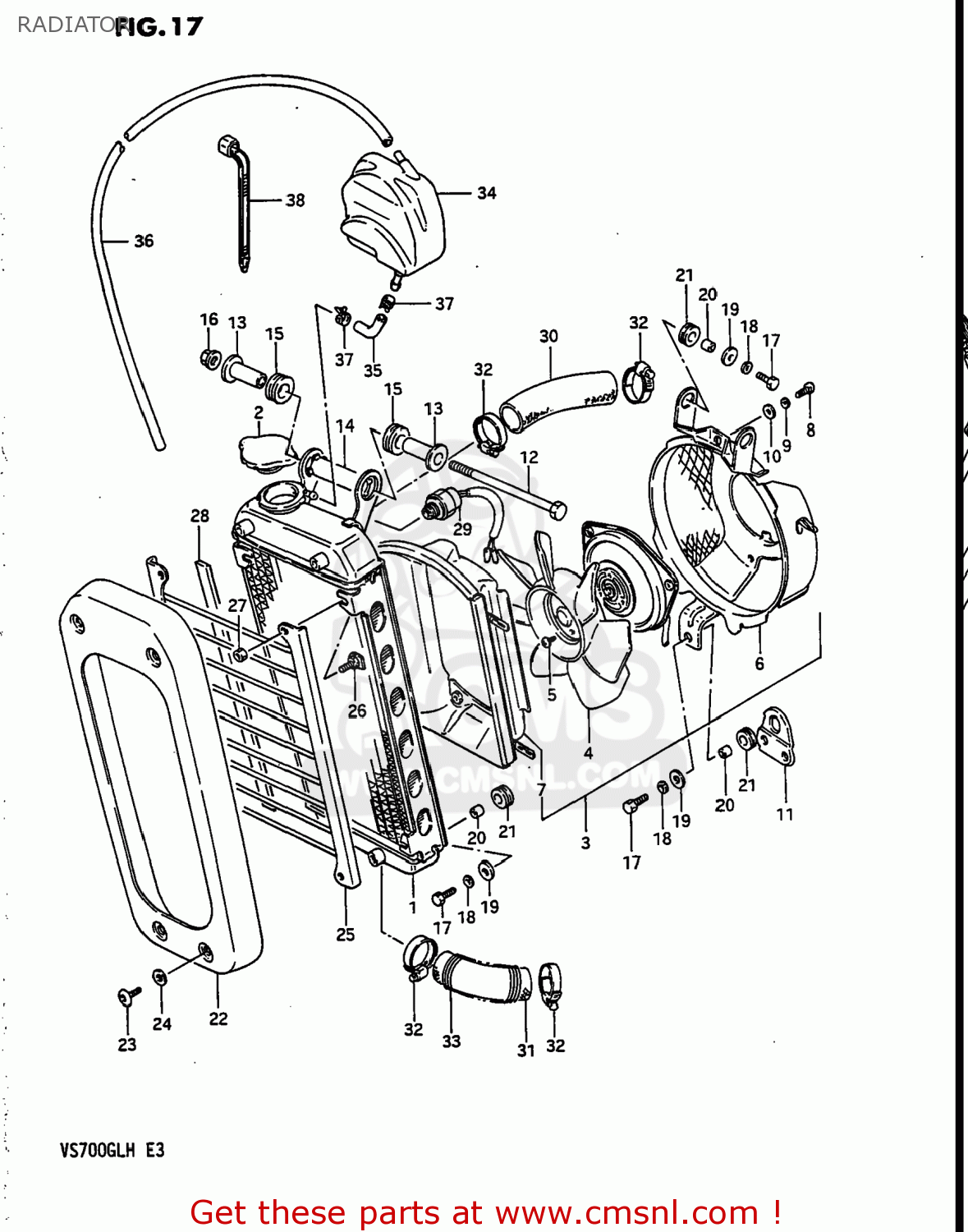

Radiator diagram VS700GLEF INTRUDER 1986 (G) USA (E03)
RADIATOR VS700GLEF INTRUDER 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771038A01
ref: 1
RADIATOR COMP,WATER
€ 681.00
2
1773024A00
ref: 2
17730-08J00
CAP,RADIATOR
€ 40.00
3-1
1780038A01
ref: 3-1
17800-38A03
FAN ASSEMBLY,RADIATOR
€ 496.00
3-2
1780038A02
ref: 3-2
17800-38A03
FAN ASSEMBLY,RADIATOR
€ 496.00
4
1782038A00
ref: 4
FAN
€ 51.00
5
1780105A00
ref: 5
02112-0406B
BOLT
€ 2.00
6
1777038A01
ref: 6
17770-39A00
SHROUD,FAN
€ 78.50
7
1715038A00
ref: 7
DUCT,FAN
€ 82.50
8
0211205106
ref: 8
02112-0510A
SCREW 5X10
€ 2.00
9
0832121056
ref: 9
08321-0105A
LOCK WASHER
€ 3.00
10
0832221056
ref: 10
08322-0105A
WASHER
€ 2.50
11
1780838A00
ref: 11
BRACKET,RADIATOR FAN
€ 4.00
12
0910010198
ref: 12
BOLT 10X135
€ 4.00
13-1
1778238A00
ref: 13-1
17782-38A01
SPACER,RADIATOR CUSHION
€ 12.50
13-2
1778238A01
ref: 13-2
SPACER,RADIATOR CUSHION NO.2
€ 12.50
14
1778338A00
ref: 14
SPACER,RDTR CUSH NO.2 OUTER
€ 2.00
15
0932015008
ref: 15
CUSHION
€ 3.50
16
0831931105
ref: 16
08319-3110A
NUT 10MM
€ 3.00
17
0110706165
ref: 17
01500-0616A
BOLT 6X16
€ 2.00
18
0832121064
ref: 18
08321-0106A
WASHER,LOCK
€ 2.00
19
0916006039
ref: 19
09160-06109
WASHER (6.5X18X1.6)
€ 2.00
20
0918006154
ref: 20
09180-06261
SPACER (6X9X8)
€ 2.00
21
0932008037
ref: 21
CUSHION
€ 4.00
22-1
1776138A01
ref: 22-1
17761-38A01-019
COVER,RADIATOR
€ 74.50
22-2
1776138A4013Z
ref: 22-2
17761-38A50-33J
COVER,RADIATOR
€ 74.50
22-3
1776138A4033D
ref: 22-3
17761-38A50-33J
COVER,RADIATOR
€ 74.50
22-4
1776138A4033H
ref: 22-4
17761-38A50-33J
COVER,RADIATOR
€ 74.50
23
0913906041
ref: 23
09139-06076
SCREW
€ 2.50
24
0916006093
ref: 24
09160-06126
WASHER (6.2X14X2)
€ 2.00
25
1779038A00
ref: 25
BUMPER COMP,RADIATOR
€ 25.50
26
0911905014
ref: 26
BOLT
€ 2.50
27
0831022055
ref: 27
09140-05006
NUT 5MM
€ 2.00
28
1779538A00
ref: 28
CUSHION,RADIATOR BUMPER
€ 3.00
29
1768038A00
ref: 29
17680-24A02
SWITCH
€ 106.50
30
1785138A00
ref: 30
HOSE,RADIATOR INLET
€ 11.50
31
1785238A00
ref: 31
17858-38820
HOSE,RADIATOR
€ 16.50
32-1
0940230501
ref: 32-1
09402-32511
CLAMP
€ 11.50
32-2
0940230502
ref: 32-2
09402-32511
CLAMP
€ 11.50
33
0944035005
ref: 33
SPRING
€ 4.00
34
1791138A00
ref: 34
TANK,RESERVOIR
€ 23.00
35
1798138A01
ref: 35
HOSE,RESERVE TANK INLET
€ 7.00
36
1798238A02
ref: 36
17982-38810
HOSE,RESERVOIR TANK OVERFLOW
€ 16.00
37
0940108407
ref: 37
09401-08411
CLIP
€ 3.00
38
0940714403
ref: 38
CLAMP(L:125)
€ 2.50
39
1770038810
ref: 39
COVER SET,RADIATOR
€ 67.50
39
1770038810
ref: 39
COVER SET,RADIATOR
€ 67.50
