WIRING HARNESS
VS700GLEF INTRUDER 1986 (G) USA (E03)

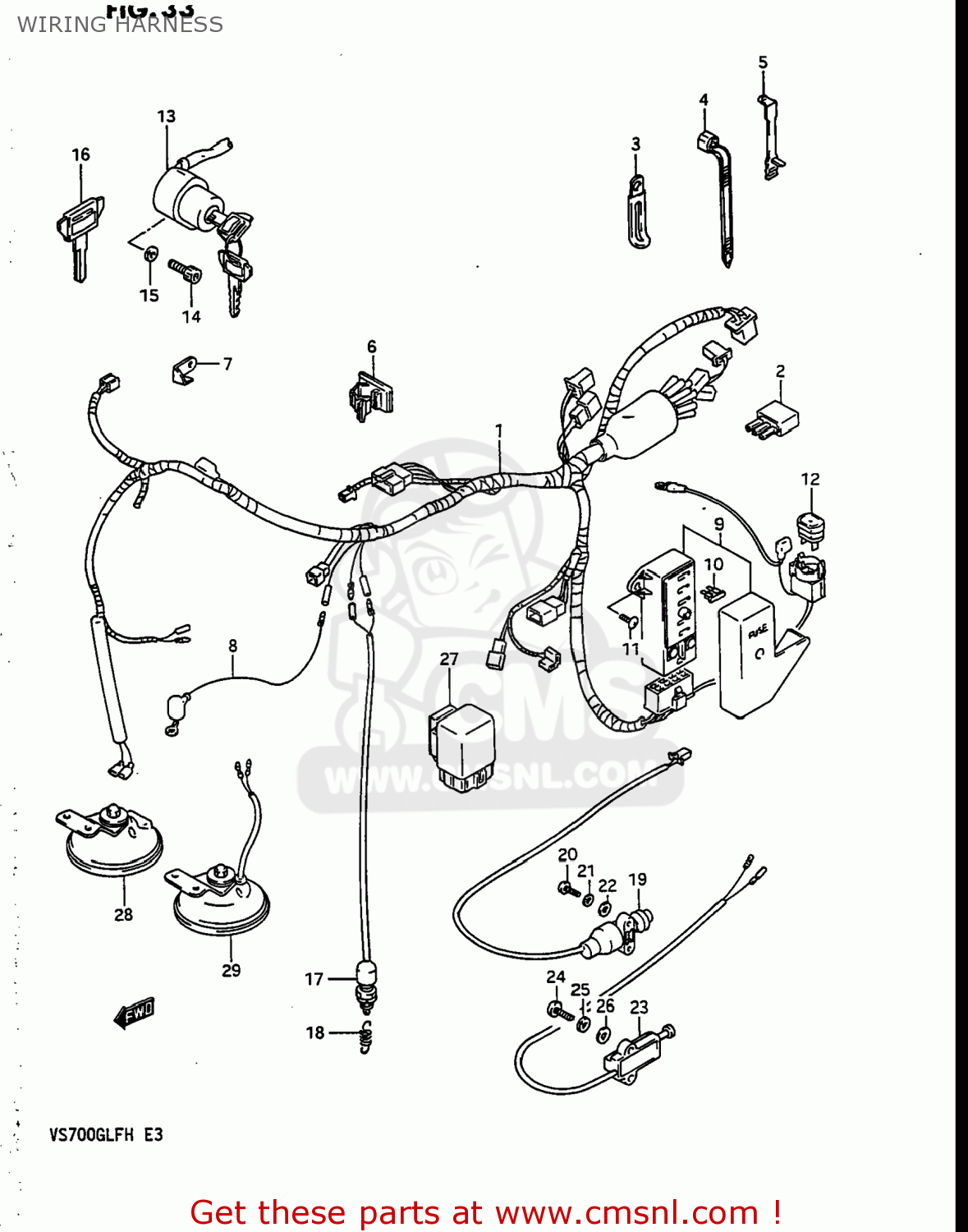

Wiring harness diagram VS700GLEF INTRUDER 1986 (G) USA (E03)
WIRING HARNESS VS700GLEF INTRUDER 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661038A32
ref: 1-1
HARNESS,WIRING
€ 224.50
1-2
3661038A30
ref: 1-2
36610-38A32
HARNESS,WIRING
€ 224.50
1-3
3661039A30
ref: 1-3
HARNESS
€ 214.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3-1
0940405401
ref: 3-1
09404-06429
CLAMP
€ 2.50
3-2
0940406401
ref: 3-2
09404-06432
CLAMP L:35
€ 2.50
3-3
0940406402
ref: 3-3
09404-06432
CLAMP
€ 2.50
3-4
0940406403
ref: 3-4
09404-06432
CLAMP
€ 2.50
3-5
0940406404
ref: 3-5
09404-06433
CLAMP
€ 3.00
4-1
0940711401
ref: 4-1
CLAMP(L:95)
€ 2.50
4-2
0940714403
ref: 4-2
CLAMP(L:125)
€ 2.50
4-3
0940718402
ref: 4-3
CLAMP(L:165)
€ 2.50
5
0940707401
ref: 5
09407-05403
CLAMP(L:55)
€ 1.50
6
0940800074
ref: 6
09408-00098
CLAMP
€ 5.50
7
3668738A00
ref: 7
PLATE,COUPLER HOLDER
€ 2.00
8
3685138401
ref: 8
WIRE,WATER TEMPERATURE GAUGE
€ 4.50
9
3674038A00
ref: 9
BOX ASSY,FUSE
€ 75.00
10
0948110101
ref: 10
FUSE(10A)
€ 2.50
11
0214206206
ref: 11
02142-0620A
SCREW
€ 2.00
12
3675005A00
ref: 12
BREAKER ASSY,CIRCUT
€ 36.50
13
3711038A01
ref: 13
37110-38A04
SWITCH ASSEMBLY,IGNITION
€ 74.50
14-1
0711005128
ref: 14-1
07130-05127
BOLT 5X12
€ 2.00
14-2
0711005168
ref: 14-2
07130-05167
BOLT
€ 2.50
15
0832121057
ref: 15
08321-0105A
LOCK WASHER
€ 2.00
16-1
3714603A00
ref: 16-1
KEY,BLANK(TYPE:C)
€ 6.00
16-2
3714603A10
ref: 16-2
KEY,BLANK(TYPE:D)
€ 6.00
16-3
3714603A20
ref: 16-3
KEY,BLANK(TYPE:E)
€ 6.00
16-4
3714603A30
ref: 16-4
KEY,BLANK(TYPE:F)
€ 6.00
17
3774004A10
ref: 17
SWITCH ASSY,STOP LAMP
€ 22.00
18
0944306046
ref: 18
SPRING
€ 3.50
19
3784038A01
ref: 19
37840-38A10
SWITCH ASSEMBLY,SIDE STAND
€ 83.50
20
0211205165
ref: 20
02112-05164
SCREW
€ 2.00
21
0832121055
ref: 21
08321-0105A
WASHER,LOCK
€ 3.00
22
0832221055
ref: 22
08322-0105A
WASHER,5MM
€ 2.50
23
3784039A10
ref: 23
37840-39A22
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
24
0211206205
ref: 24
02112-0620A
SCREW
€ 2.00
25
0832121064
ref: 25
08321-0106A
WASHER,LOCK
€ 2.00
26
0832221064
ref: 26
08322-0106B
WASHER
€ 2.00
27
3874039A00
ref: 27
38740-24X50
RELAY ASSEMBLY
€ 37.50
28
3850038A00
ref: 28
38500-38A30
HORN ASSEMBLY
€ 126.00
29
3850038A20
ref: 29
38500-38A30
HORN ASSEMBLY
€ 87.50
