FRAME COVER
VS700GLEF INTRUDER 1986 (G) USA (E03)

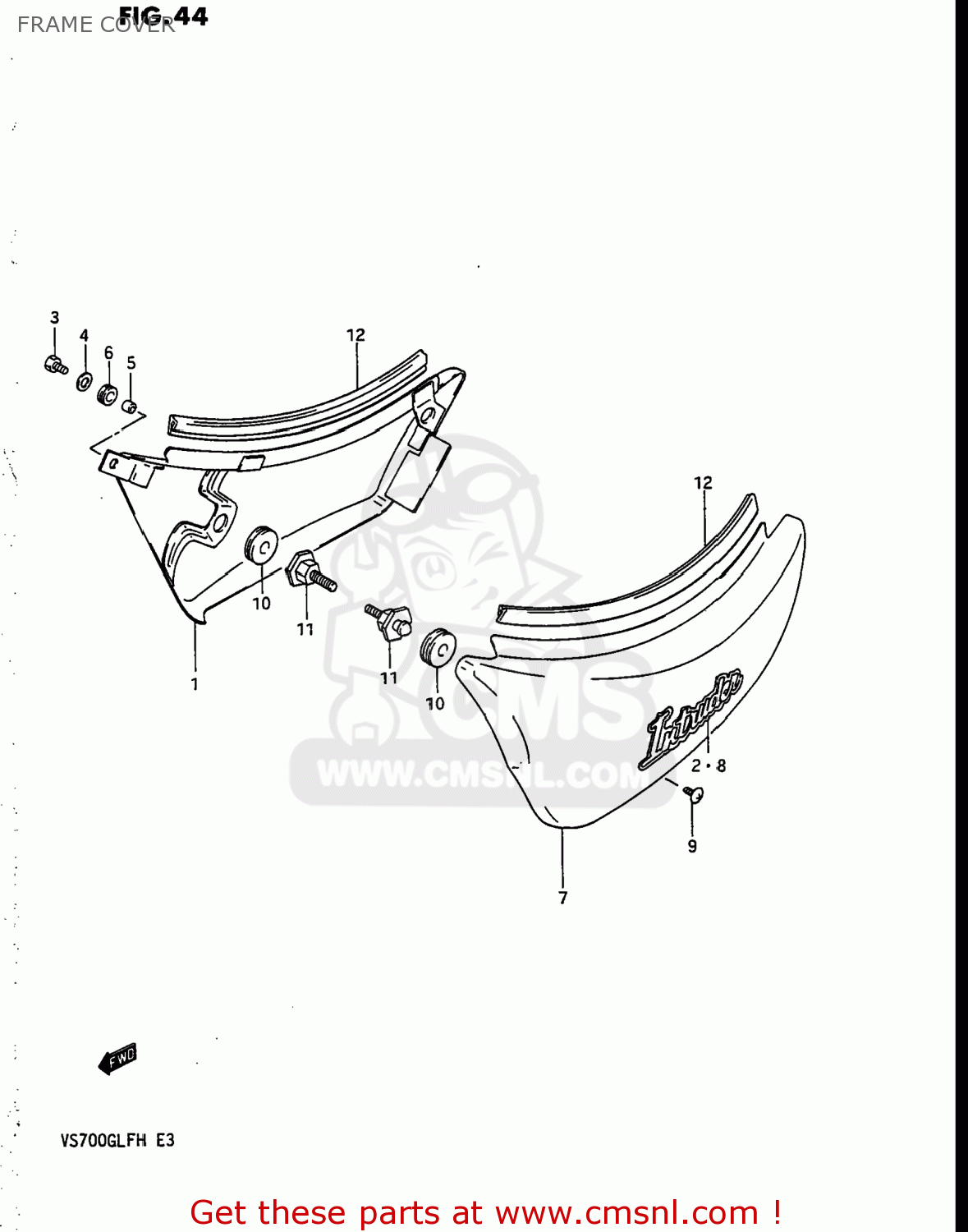

Frame cover diagram VS700GLEF INTRUDER 1986 (G) USA (E03)
FRAME COVER VS700GLEF INTRUDER 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4711038A0024D
ref: 1-1
47110-38A00-13L
COVER,FRAME,RIGHT
€ 245.00
1-2
4711038A00019
ref: 1-2
47110-38A00-13L
COVER,FRAME,RIGHT
€ 245.00
1-3
4711038A0013Z
ref: 1-3
47110-38A00-13L
COVER,FRAME,RIGHT
€ 245.00
1-4
4711038A0024V
ref: 1-4
47110-38A00-13L
COVER,FRAME,RIGHT
€ 245.00
1-5
4711038A0033D
ref: 1-5
47110-38A00-13L
COVER,FRAME,RIGHT
€ 245.00
2-1
6813138A007VG
ref: 2-1
EMBLEM
€ 19.00
2-2
6813138A007VH
ref: 2-2
EMBLEM,FRAME COVER
€ 20.50
2-3
6813138A007VJ
ref: 2-3
EMBLEM
€ 20.50
2-4
6813138A009EY
ref: 2-4
EMBLEM
€ 19.00
3
0120406167
ref: 3
BOLT
€ 2.00
4
0916006084
ref: 4
WASHER(6.5X18X1.6)
€ 2.00
5
0918006032
ref: 5
09180-06246
SPACER (6.1X8X5.2)
€ 2.50
6
0932006017
ref: 6
CUSHION
€ 3.00
7-1
4721038A0024D
ref: 7-1
47210-38A00-13L
COVER,FRAME,LEFT
€ 259.00
7-2
4721038A00019
ref: 7-2
47210-38A00-13L
COVER,FRAME,LEFT
€ 259.00
7-3
4721038A0013Z
ref: 7-3
47210-38A00-13L
COVER,FRAME,LEFT
€ 259.00
7-4
4721038A0024V
ref: 7-4
47210-38A00-13L
COVER,FRAME,LEFT
€ 259.00
7-5
4721038A0033D
ref: 7-5
47210-38A00-13L
COVER,FRAME,LEFT
€ 259.00
8-1
6813138A007VG
ref: 8-1
EMBLEM
€ 19.00
8-2
6813138A007VH
ref: 8-2
EMBLEM,FRAME COVER
€ 20.50
8-3
6813138A007VJ
ref: 8-3
EMBLEM
€ 20.50
8-4
6813138A009EY
ref: 8-4
EMBLEM
€ 19.00
9
0214206104
ref: 9
02142-0610A
SCREW
€ 2.00
10
0932008013
ref: 10
CUSHION
€ 4.00
11
4725038A01
ref: 11
BOSS,FRAME COVER
€ 6.50
12
4721838A00
ref: 12
68241-04X50-300
MOLDING, FRAME COVER
€ 6.00
