CYLINDER
VS700GLEP INTRUDER 1986 (G) USA (E03)

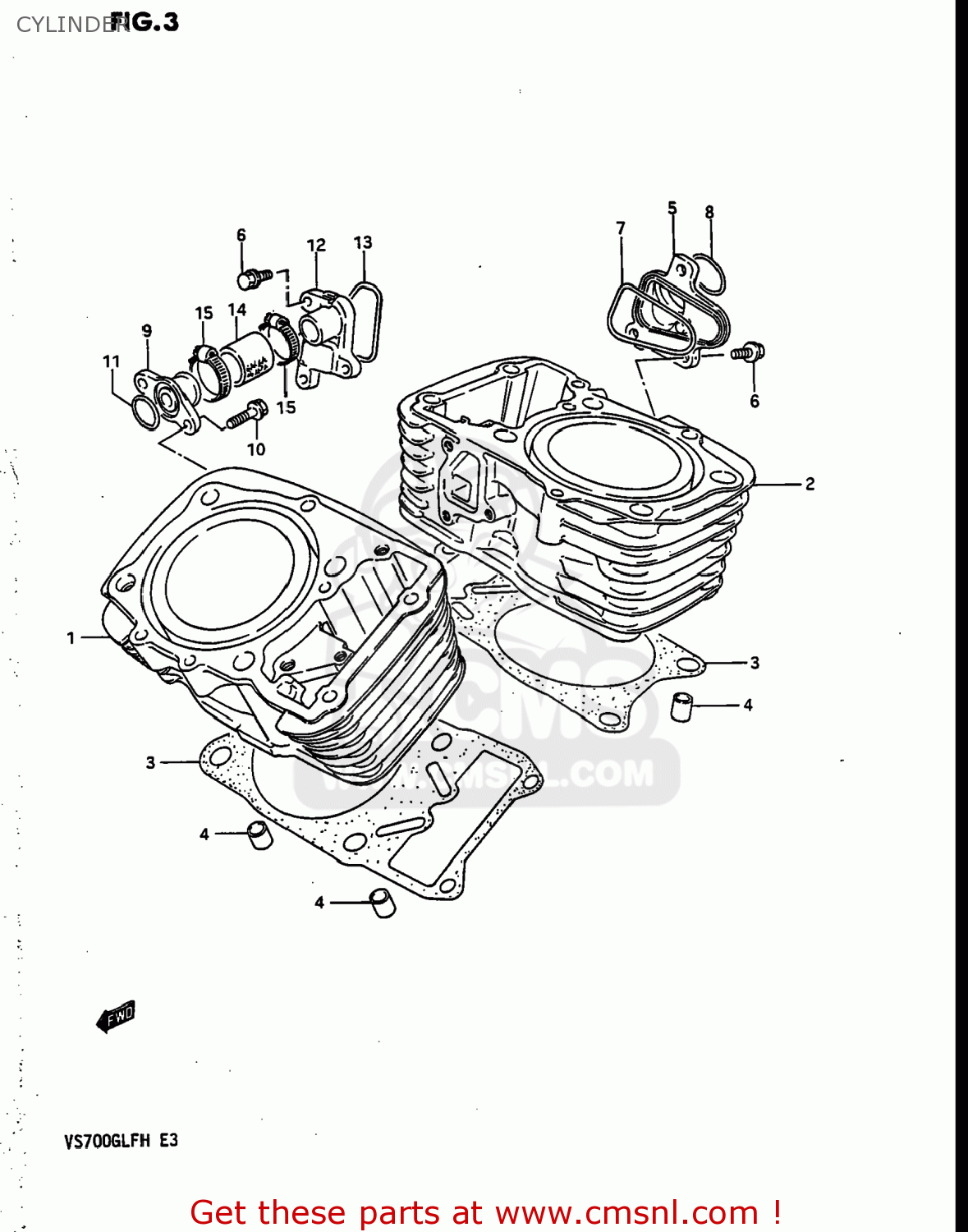

Cylinder diagram VS700GLEP INTRUDER 1986 (G) USA (E03)
CYLINDER VS700GLEP INTRUDER 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121038A02
ref: 1
CYLINDER
€ 220.00
2
1122038A02
ref: 2
CYLINDER,REAR
€ 439.00
3
1124138A10
ref: 3
11241-45C20
GASKET,CYLINDER (MCA)
€ 16.50
4
0920613001
ref: 4
04211-13189
PIN
€ 2.50
5
1123738A00
ref: 5
11237-41F00
CHAMBER,WATER,INLET
€ 28.00
6
0154706208
ref: 6
01547-06207
BOLT (6X20)
€ 2.50
7
1124738A00
ref: 7
O RING,INLET WATER CHAMBER
€ 3.00
8
0928024007
ref: 8
O RING(D:2.3,ID:24.4)
€ 2.00
9
1123538A00
ref: 9
11235-41F00
UNION,WATER INLET
€ 16.00
10
0154706168
ref: 10
01547-06167
M6 BOUTJES
€ 2.00
11
0928016005
ref: 11
O RING(D:2.4,ID:15.8)
€ 1.50
12
1123638A00
ref: 12
11236-45C10
CHAMBER,WATER,OUTLET
€ 26.50
13
1124638A00
ref: 13
O RING,OUTLET WATER CHAMBER
€ 4.50
14
1785338A00
ref: 14
17851-01A00
HOSE,RADIATOR
€ 17.50
15
0940225501
ref: 15
09402-28511
CLAMP
€ 8.50
