WATER PUMP
VS700GLEP INTRUDER 1986 (G) USA (E03)

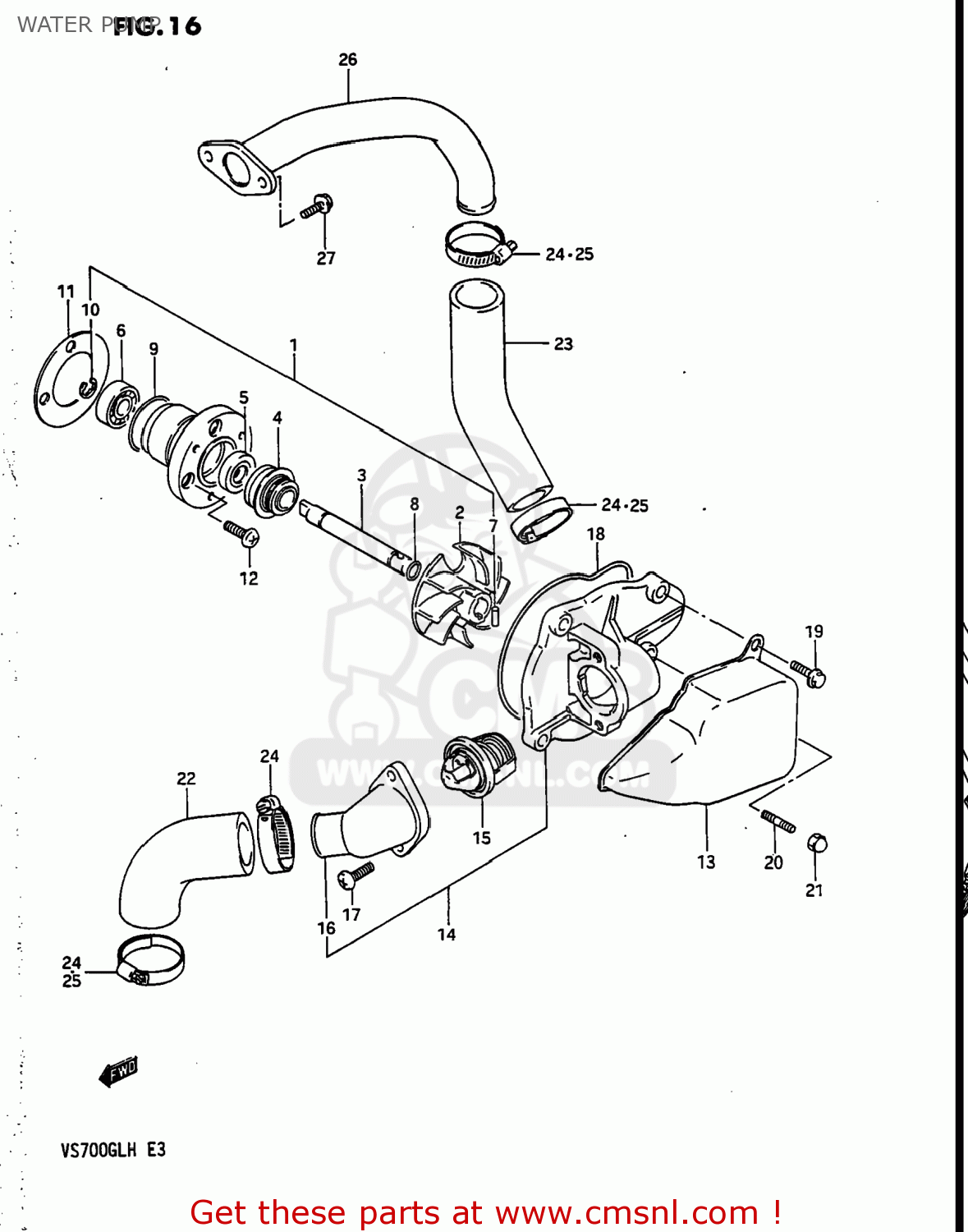

Water pump diagram VS700GLEP INTRUDER 1986 (G) USA (E03)
WATER PUMP VS700GLEP INTRUDER 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740038A01
ref: 1
17400-38A10
PUMP ASSEMBLY,WATER
€ 133.50
2
1749138A00
ref: 2
IMPELLER
€ 12.50
3
1751138A00
ref: 3
SHAFT
€ 30.50
4
1747046A00
ref: 4
17470-02F00
SEAL,MECHANICAL
€ 21.50
5
1746138A00
ref: 5
09283-10004
OILSEAL
€ 4.50
6
1745138A00
ref: 6
09262-10014
BEARING,10X26X8
€ 13.00
7
1751638A00
ref: 7
PIN
€ 4.00
8
1751538A00
ref: 8
O RING
€ 1.50
9
1741738A00
ref: 9
O RING
€ 2.50
10
0833211086
ref: 10
08332-1108A
E RING
€ 2.00
11
1743138A00
ref: 11
17431-38A10
GASKET,WATER PUMP CASE (NAS)
€ 5.00
12
0211206126
ref: 12
02112-0612A
SCREW
€ 1.50
13
1744138A02
ref: 13
COVER,WATER PUMP
€ 19.00
14
1741038A00
ref: 14
CASE ASSY,WATER PUMP
€ 166.50
15
1767033410
ref: 15
THERMOSTAT,WATER
€ 37.00
16
1741238A00
ref: 16
17412-45C00
CONNECTOR
€ 47.00
17
0211206167
ref: 17
SCREW
€ 2.50
18
1743538A00
ref: 18
O RING,WATER PUMP CAP
€ 5.00
19
0154706207
ref: 19
BOLT
€ 2.50
20
0910806046
ref: 20
STUD
€ 4.50
21
0831311067
ref: 21
08313-10067
NUT
€ 2.00
22
1785738A02
ref: 22
HOSE,WATER PUMP IN
€ 16.50
23
1785838A01
ref: 23
17858-38820
HOSE,WATER
€ 16.50
24-1
0940230501
ref: 24-1
09402-32511
CLAMP
€ 11.50
24-2
0940230501
ref: 24-2
09402-32511
CLAMP
€ 11.50
25
0940230502
ref: 25
09402-32511
CLAMP
€ 11.50
26
1789038A00
ref: 26
PIPE,CYLINDER INLET
€ 45.50
27
0154706167
ref: 27
BOLT
€ 2.00
