HEADLAMP HOUSING - FRONT FENDER

VS700GLEP INTRUDER 1986 (G) USA (E03)

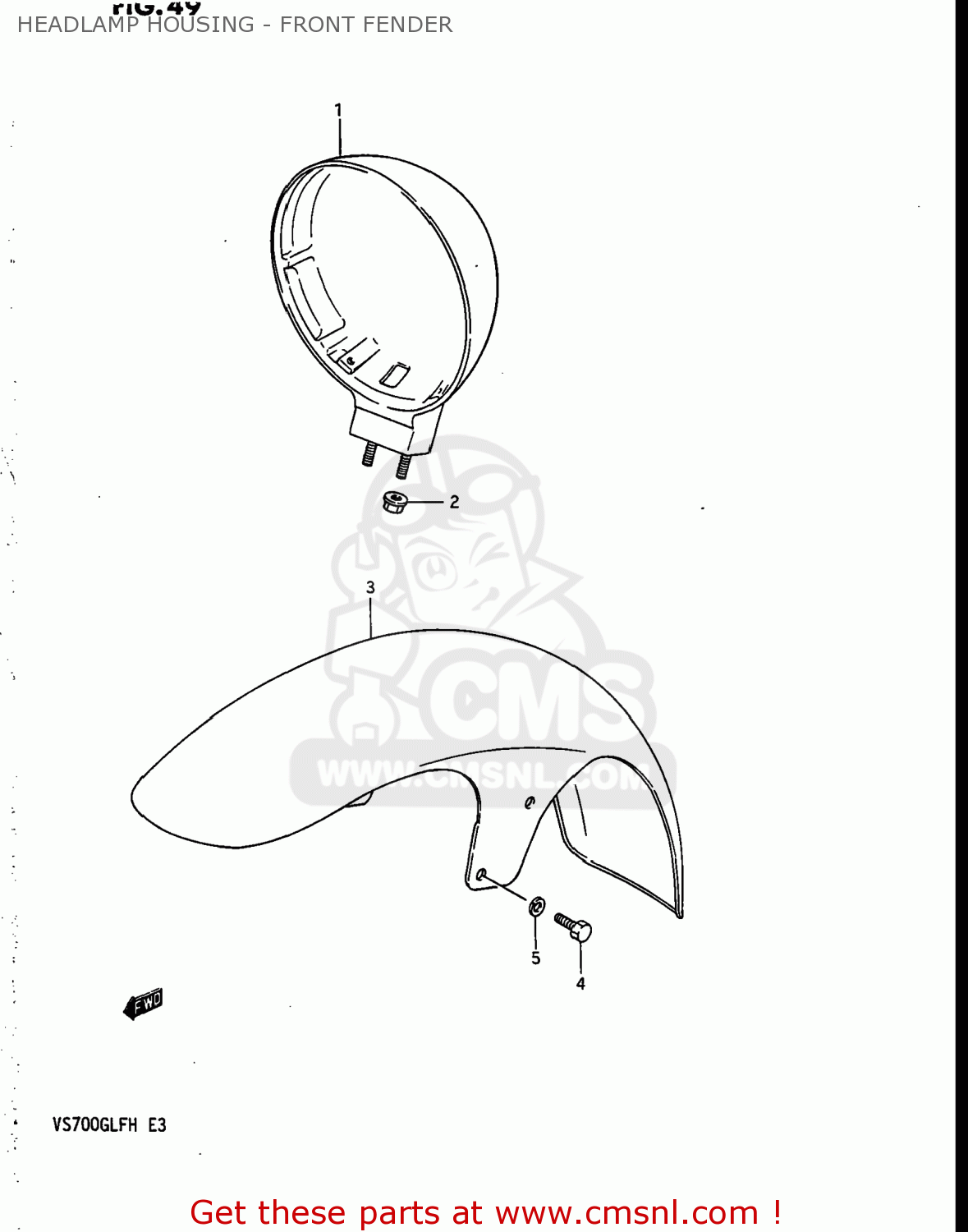

Headlamp housing - front fender diagram VS700GLEP INTRUDER 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

5181038A01
ref: 1
51810-38A03

HOUSING,HEADLAMP

€ 111.00

0831931067
ref: 2

NUT

€ 2.50

3-1

5311038A00019
ref: 3-1
53110-38A10-13L

FENDER,FRONT

€ 325.50

3-2

5311038A0024D
ref: 3-2
53110-38A10-24D

FENDER,FRONT

€ 142.00

3-3

5311038A1013Z
ref: 3-3
53110-38A10-13L

FENDER,FRONT

€ 325.50

3-4

5311038A1024V
ref: 3-4
53110-38A10-13L

FENDER,FRONT

€ 325.50

3-5

5311038A1033D
ref: 3-5
53110-38A10-13L

FENDER,FRONT

€ 325.50

0110706167
ref: 4
01500-06167

BOLT

€ 3.00

0832121067
ref: 5
08321-01067

WASHER,LOCK

€ 2.50
