PROP STAND - REAR BRAKE (VS700GLFG/GLPG ~F.NO.115898)

VS700GLEP INTRUDER 1986 (G) USA (E03)

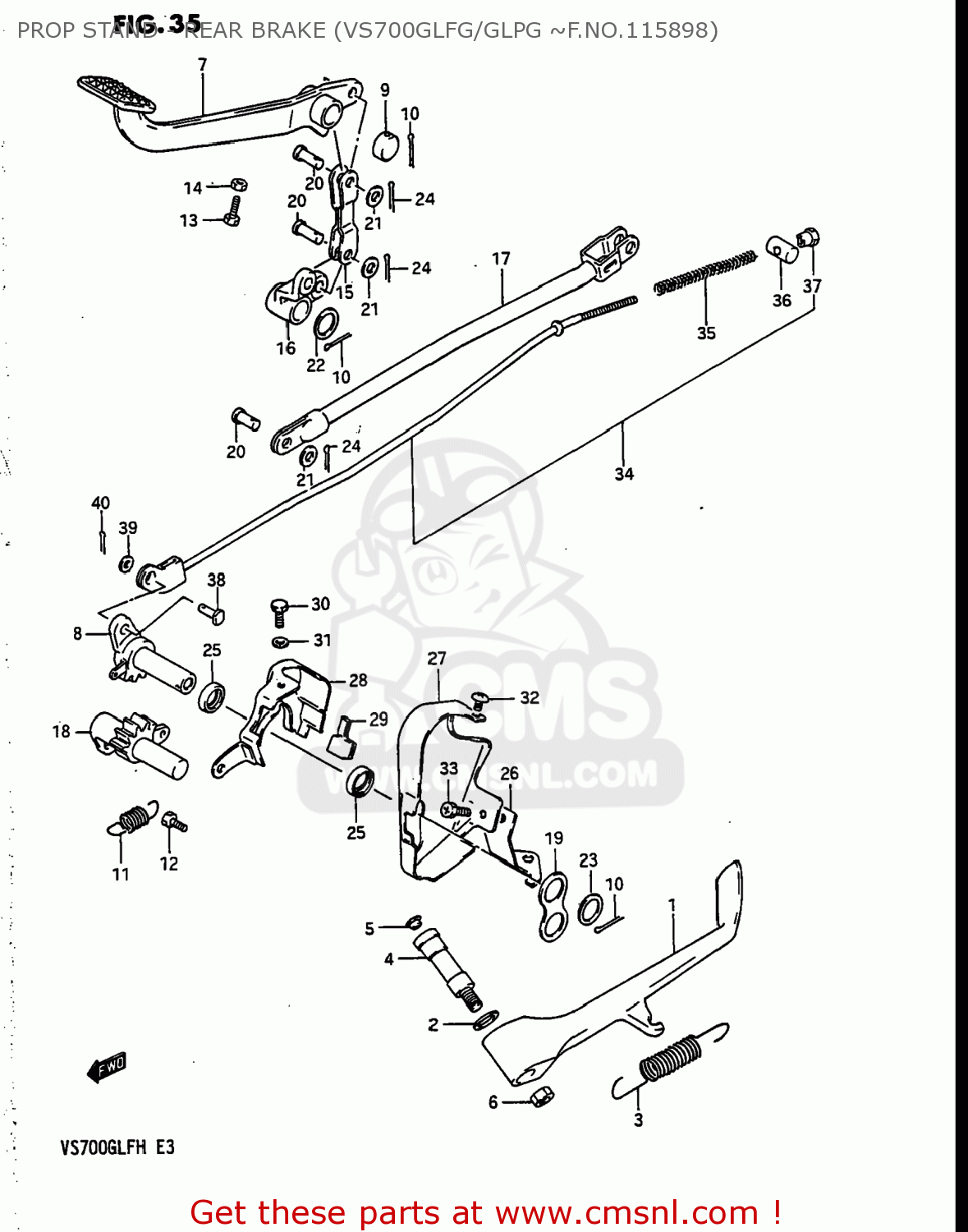

Prop stand - rear brake (vs700glfg/glpg ~f.no.115898) diagram VS700GLEP INTRUDER 1986 (G) USA (E03)

PROP STAND - REAR BRAKE (VS700GLFG/GLPG ~F.NO.115898) VS700GLEP INTRUDER 1986 (G) USA (E03)
PROP STAND - REAR BRAKE (VS700GLFG/GLPG ~F.NO.115898) VS700GLEP INTRUDER 1986 (G) USA (E03)
PROP STAND - REAR BRAKE (VS700GLFG/GLPG ~F.NO.115898) VS700GLEP INTRUDER 1986 (G) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4231038A00
ref: 1-1
STAND,PROP
€ 67.50
1-2
4231038A90
ref: 1-2
ENGRAVED SIDE STAND VS
€ 39.00
2
0822115245
ref: 2
09181-15158
THRUST WASHER
€ 2.50
3
0944315026
ref: 3
09443-15026-XC0
SPRING
0944315026
€ 5.50
4
4234138A00
ref: 4
42341-38B01
BOLT,PROP STAND
€ 9.00
5
4357534500
ref: 5
CAP
4357534500
€ 1.50
6
0831022108
ref: 6
08310-00107
NUT
0831022108
€ 2.50
7
4310038A00
ref: 7
PEDAL ASSEMBLY,BRAKE
4310038A00
€ 70.00
8
4312038A00
ref: 8
ARM COMP,BRAKE ROD
€ 43.50
9
4313507A00
ref: 9
43135-07A02
CAP,BRAKE PEDAL
€ 7.00
10
0411130308
ref: 10
04111-3030A
COTTER PIN
0411130308
€ 1.50
11
0944313018
ref: 11
SPRING
0944313018
€ 4.00
12
4325638A00
ref: 12
ARM,BRAKE PEDAL LINK
€ 2.00
13
0110706208
ref: 13
01500-06207
BOLT
0110706208
€ 2.00
14
0831011068
ref: 14
08310-00067
NUT
0831011068
€ 2.50
15
4323038A00
ref: 15
43230-38A02
LINK COMP,BRAKE ROD NO
4323038A00
€ 18.50
16
4326038A00
ref: 16
ARM,BRAKE PEDAL LINK
€ 0.00
17
4327038A00
ref: 17
LINK COMP,BRAKE NO.2
4327038A00
€ 19.00
18
4328038A00
ref: 18
ARM COMP,BRAKE PEDAL,LEFT
€ 49.00
19
4328538A00
ref: 19
PLATE,BRAKE PEDAL ARM
€ 2.00
20
0920008055
ref: 20
PIN
0920008055
€ 4.00
21
0832211088
ref: 21
08322-01087
WASHER
0832211088
€ 2.00
22
0916016015
ref: 22
09160-16043
WASHER (16.5X42X2.6)
€ 2.00
23
0916017036
ref: 23
WASHER (17.2X30X1.6)
€ 1.50
24
0411120158
ref: 24
04111-2015A
PIN
0411120158
€ 1.50
25
0928417002
ref: 25
SEAL
€ 2.50
26
4329038A00
ref: 26
BRACKET COMP,BRAKE ROD AR
€ 3.50
27
4329538A00
ref: 27
COVER,BRAKE ROD ARM
4329538A00
€ 15.50
28
4325038A00
ref: 28
COVER COMP,BRAKE ROD ARM
€ 9.00
29
4325538A00
ref: 29
GROMMET,BRAKE COVER
€ 3.50
30
0110706108
ref: 30
01500-06107
BOLT
€ 2.00
31
0832121067
ref: 31
08321-01067
WASHER,LOCK
0832121067
€ 2.50
32
0154706107
ref: 32
BOLT
0154706107
€ 1.50
33
0912806004
ref: 33
09128-06044
SCREW(6X10)
0912806004
€ 1.50
33
0912806004
ref: 33
09128-06044
SCREW(6X10)
0912806004
€ 1.50
33
0912806004
ref: 33
09128-06044
SCREW(6X10)
0912806004
€ 1.50
34
4330038A01
ref: 34
ROD ASSEMBLY,REAR BRAKE
€ 31.50
35
0944009004
ref: 35
SPRING
0944009004
€ 2.00
36
0920913005
ref: 36
09209-13018
PIN
0920913005
€ 3.50
37
0915006009
ref: 37
09150-06010
NUT (6MM)
0915006009
€ 3.50
38
0920008056
ref: 38
PIN
€ 2.00
39
0832211088
ref: 39
08322-01087
WASHER
0832211088
€ 2.00
40
0411120208
ref: 40
04111-2020A
PIN 20X20
0411120208
€ 1.50
40
0411120208
ref: 40
04111-2020A
PIN 20X20
0411120208
€ 1.50
40
0411120208
ref: 40
04111-2020A
PIN 20X20
0411120208
€ 1.50
