AIR CLEANER (FRONT)

VS700GLP INTRUDER 1988 (J) USA (E03)

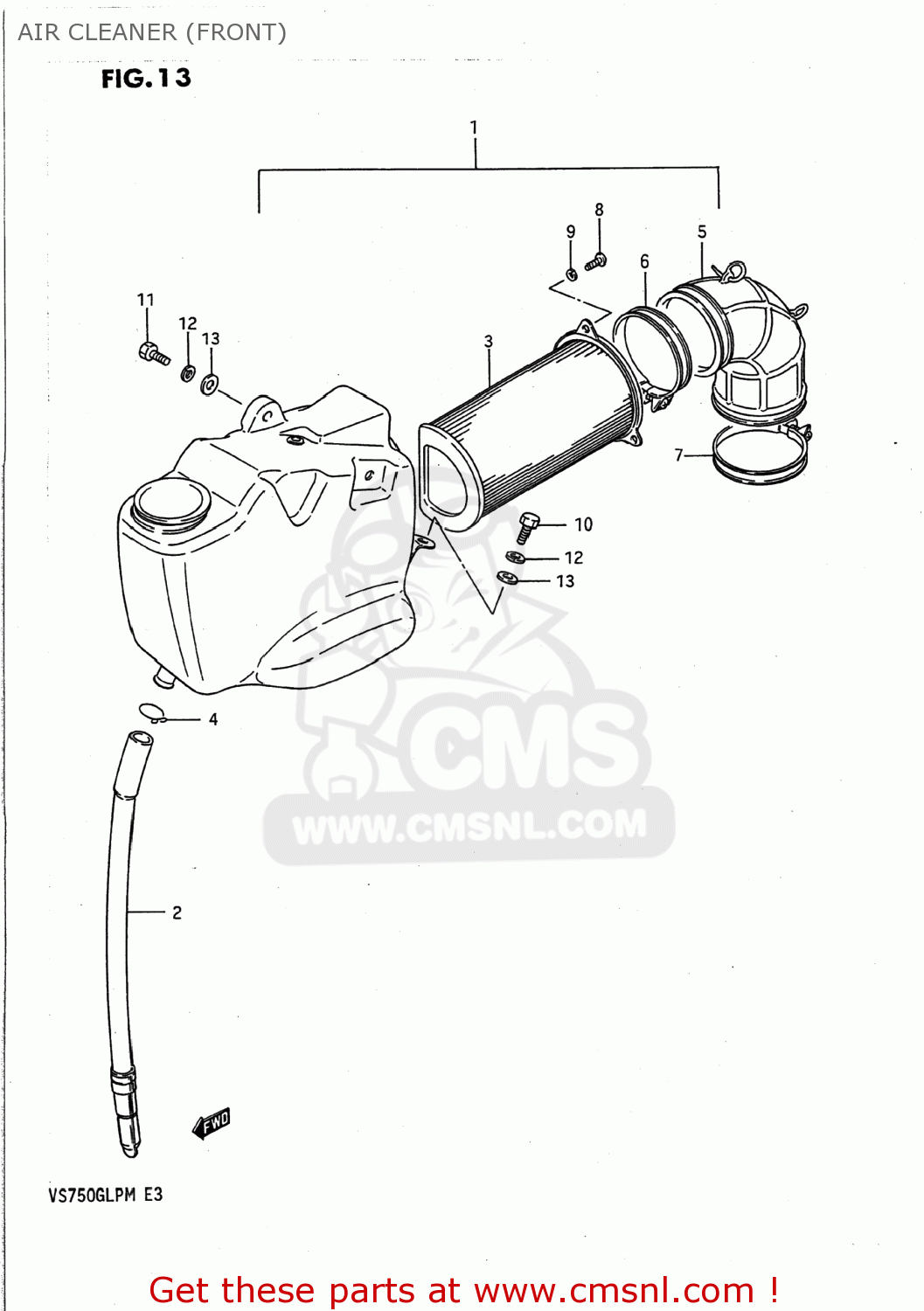

Air cleaner (front) diagram VS700GLP INTRUDER 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1370038A00
ref: 1
13700-38A01

CLEANER ASSEMBLY,AIR

€ 177.50

1387011413
ref: 2
13870-11458

DRAIN TUBE

€ 13.50

1378038A00
ref: 3
13780-38A01

FILTER,AIR CLEANER

€ 25.00

1382400A00
ref: 4
09401-13409

CLIP

€ 2.50

1388138A00
ref: 5

TUBE,AIR CLEANER OUTLET

€ 28.00

0940256208
ref: 6
09402-56901

CLAMP

€ 3.50

0940258208
ref: 7

CLAMP

€ 5.50

0211204085
ref: 8
02112-0408A

SCREW

€ 2.00

0832121045
ref: 9
08321-0104A

LOCK WASHER

€ 2.00

0110706167
ref: 10
01500-06167

BOLT

€ 3.00

0110706207
ref: 11
01500-06207

BOLT

€ 2.00

0832121067
ref: 12
08321-01067

WASHER,LOCK

€ 2.50

0832221067
ref: 13
08322-01067

WASHER

€ 2.00
