VS700GLP INTRUDER 1988 (J) USA (E03)

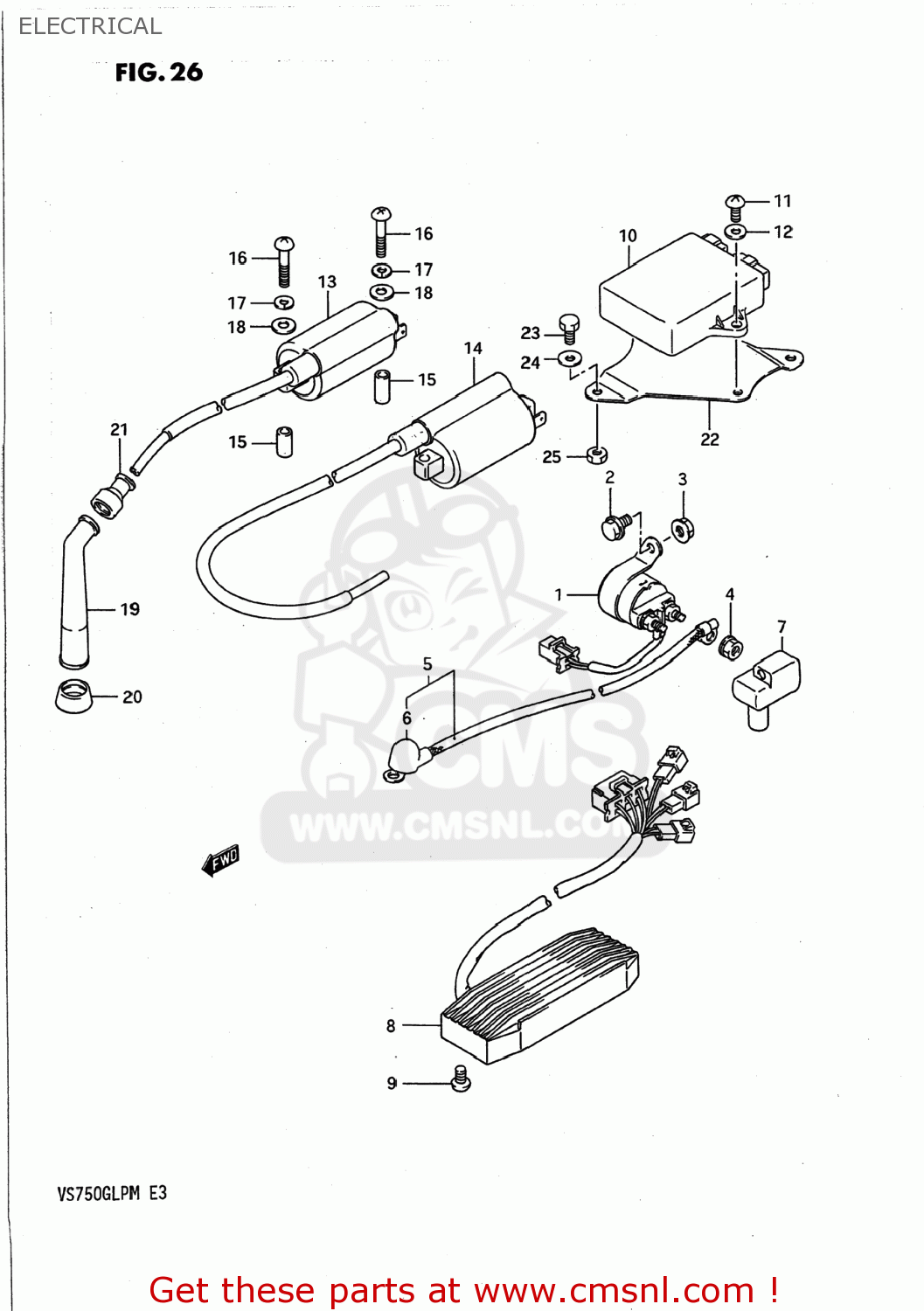

Electrical diagram VS700GLP INTRUDER 1988 (J) USA (E03)
ELECTRICAL VS700GLP INTRUDER 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180015500
ref: 1
31800-15501
RELAY ASSEMBLY,STARTING MOTOR
€ 78.00
2
0151706106
ref: 2
01550-0610A
BOLT
€ 2.50
3
0831616066
ref: 3
08316-1006B
NUT
€ 2.50
4
0836135066
ref: 4
08361-3506A
NUT
€ 2.00
5
3385038A00
ref: 5
WIRE,STARTER MOTOR LEAD
€ 17.50
6
3186105300
ref: 6
31861-48B10
CAP,STARTER MOTOR TERMINAL
€ 4.50
7
3186138A00
ref: 7
CAP,STARTER RELAY
€ 7.50
8
3280038A00
ref: 8
RECTIFIER ASSY
€ 396.50
9
0110706104
ref: 9
01500-0610B
BOLT
€ 2.00
10
3290038A10
ref: 10
IGNITER UNIT ASSEMBLY
€ 611.00
11
0211206126
ref: 11
02112-0612A
SCREW
€ 1.50
12
0832221066
ref: 12
08322-0106B
WASHER, LOWER
€ 2.00
13
3341038A10
ref: 13
33410-38A11
COIL ASSEMBLY,IGNITION
€ 136.00
14
3342038A10
ref: 14
33420-38A11
COIL ASSEMBLY,IGNITION
€ 150.00
15
0918006144
ref: 15
SPACER(6.4X10X19)
€ 5.00
16
0912505053
ref: 16
SCREW (5X38)
€ 1.50
17
0832121056
ref: 17
08321-0105A
LOCK WASHER
€ 3.00
18-1
0832221056
ref: 18-1
08322-0105A
WASHER
€ 2.50
18-2
0832221056
ref: 18-2
08322-0105A
WASHER
€ 2.50
19
3351011410
ref: 19
CAP,SPARK PLUG
€ 24.50
20
3354124510
ref: 20
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
21
3354238B00
ref: 21
SEAL,HIGH TENSION CORD
€ 4.50
22
3291038A10
ref: 22
PLATE,IGNITOR FITING
€ 7.00
23
0110706126
ref: 23
01500-0612A
BOLT
€ 2.00
24
0832121066
ref: 24
08321-0106A
WASHER,LOCK
€ 2.00
25
0831626066
ref: 25
08316-1006B
NUT
€ 2.00
