HANDLEBAR - CONTROL CABLE

VS700GLP INTRUDER 1988 (J) USA (E03)

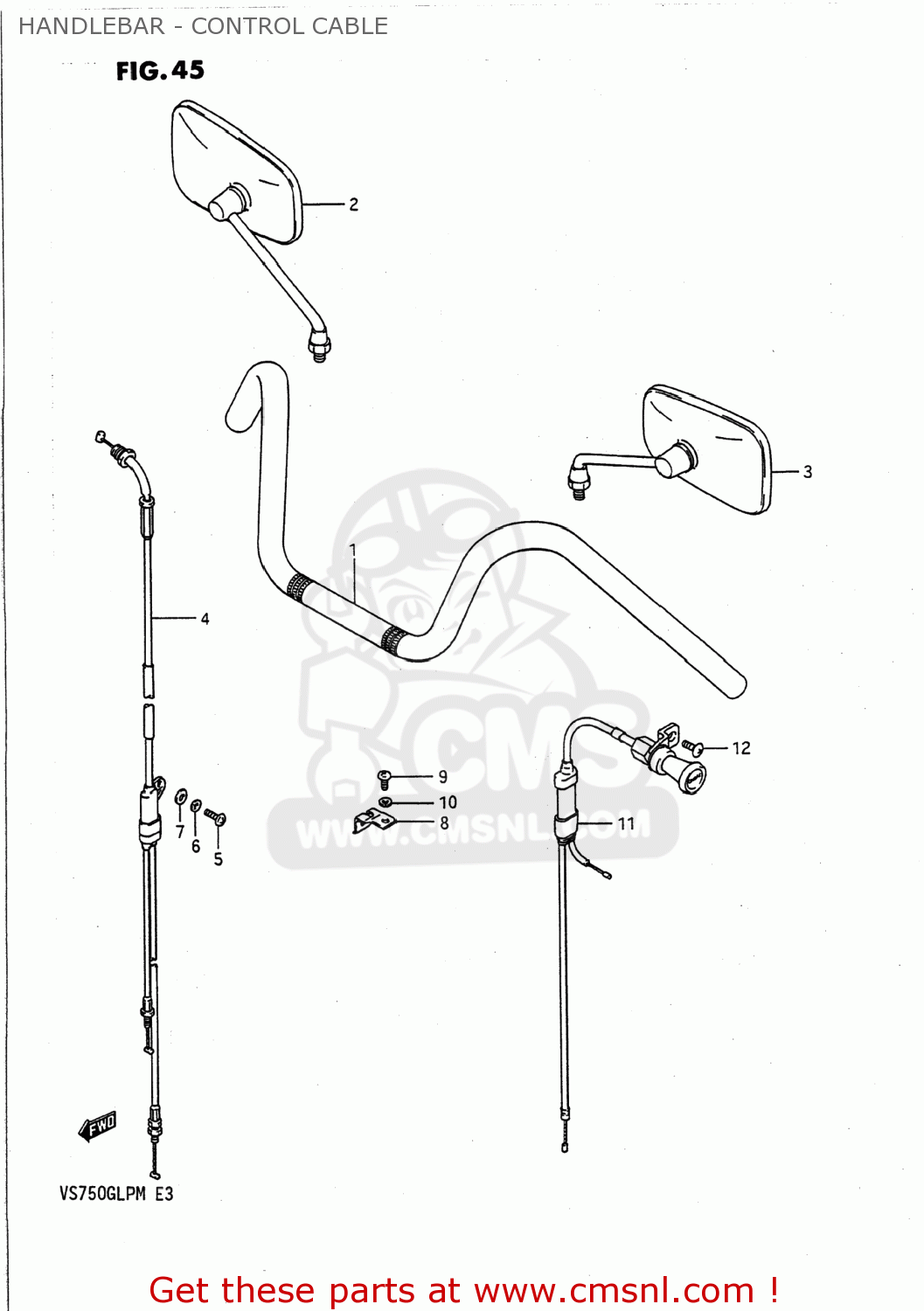

Handlebar - control cable diagram VS700GLP INTRUDER 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

5611138A50
ref: 1

HANDLEBAR

€ 228.00

5650038A00
ref: 2

MIRROR ASSY,RR VIEW,R

€ 75.50

5660038A00
ref: 3

MIRROR ASSY,RR VIEW,L

€ 87.00

5830038A10
ref: 4
58300-38A11

CABLE ASSEMBLY,THROTTLE

€ 93.00

5-1

0211205128
ref: 5-1
02112-05127

SCREW

€ 2.50

5-2

0211275128
ref: 5-2
02112-75127

SCREW,THROTTLE CABLE

€ 2.50

0832121057
ref: 6
08321-0105A

LOCK WASHER

€ 2.00

0832221057
ref: 7
08322-01057

WASHER

€ 2.50

5862138A00
ref: 8

CLAMP,THROTTLE CABLE

€ 6.00

0211205107
ref: 9

SCREW

€ 2.00

0832121057
ref: 10
08321-0105A

LOCK WASHER

€ 2.00

11-1

5840038A00
ref: 11-1
58400-38A02

CABLE ASSEMBLY,STARTER

€ 54.00

11-2

5840038A10
ref: 11-2
58400-38A14

CABLE ASSEMBLY,STARTER

€ 65.50

0214206104
ref: 12
02142-0610A

SCREW

€ 2.00
