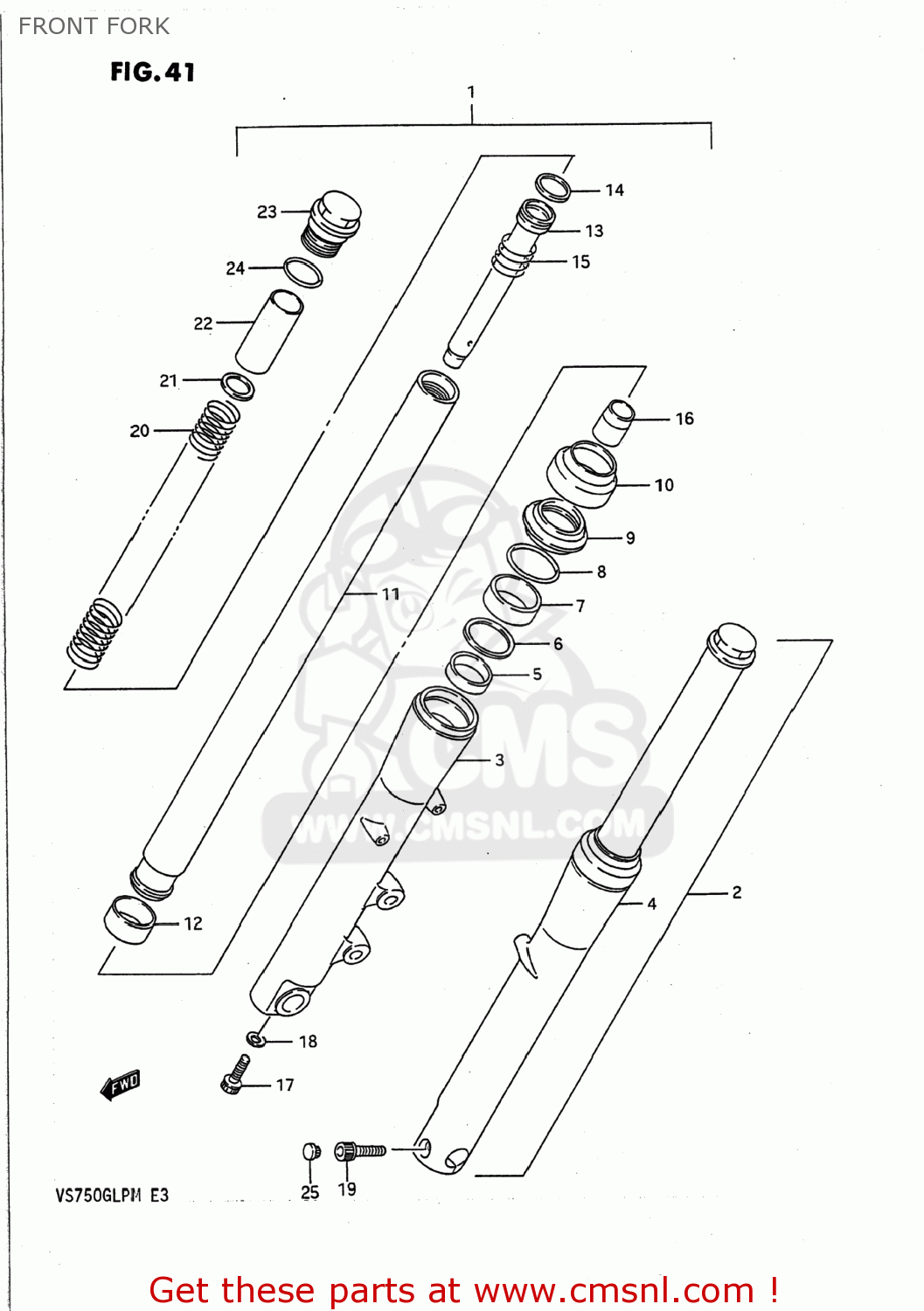

FRONT FORK

ref

part #

description

quantity

1

5110339A00
ref: 1
51103-39A41

DAMPER ASSEMBLY,RIGHT

€ 493.50

2

5110439A00
ref: 2
51104-39A41

DAMPER ASSEMBLY,LEFT

€ 493.50

3

5113139A00
ref: 3

TUBE,OUTER RH

€ 313.00

4

5114139A00
ref: 4

TUBE,OUTER LH

€ 313.00

5

5115239A00
ref: 5
51152-39A40

BUSHING,GUIDE

€ 24.00

6

5116839A00
ref: 6

SPACER,SEAL

€ 7.50

7

5115339A00
ref: 7
51153-19D00

OIL SEAL,FRONT FORK

€ 16.00

8

5155632B00
ref: 8
51156-32B00

CUSHION,HEADLAMP BRACKET

€ 6.50

9

5157139A00
ref: 9
51173-19D00

BOOT

€ 17.50

10

5157239A00
ref: 10
51572-38B00

BAND,FRONT FORK COVER

€ 31.00

11

5111039A00
ref: 11
51110-39A41

TUBE,FORK,INNER

€ 435.50

12

5112139A00
ref: 12
51121-19D00

BUSHING,SLIDE

€ 25.00

13

5114639A00
ref: 13

PIPE,SEAT

€ 66.00

14

5119632B00
ref: 14

RING,PISTON

€ 7.50

15

5117732B00
ref: 15

SPRING,REBOUND

€ 9.50

16

5119538B00
ref: 16

PIECE,OIL LOCK

€ 27.50

17

5114748130
ref: 17

BOLT(8X27)

€ 3.50

18

5114836011
ref: 18

GASKET (NAS)

€ 4.00

19

0711008357
ref: 19
07130-08357

BOLT, FRONT RH

€ 4.50

20

5117139A00
ref: 20

SPRING

€ 73.00

21

5117232B00
ref: 21

WASHER,SPRING

€ 6.00

22

5117639A00
ref: 22

COLLAR,SPRING

€ 12.00

23

5135139A00
ref: 23

BOLT,FORK

€ 77.00

24

5111739A00
ref: 24

O RING

€ 4.00

25

0925006009
ref: 25

CAP(OD:14.5)

€ 3.50

all assemblies
