WIRING HARNESS
VS700GLP INTRUDER 1988 (J) USA (E03)

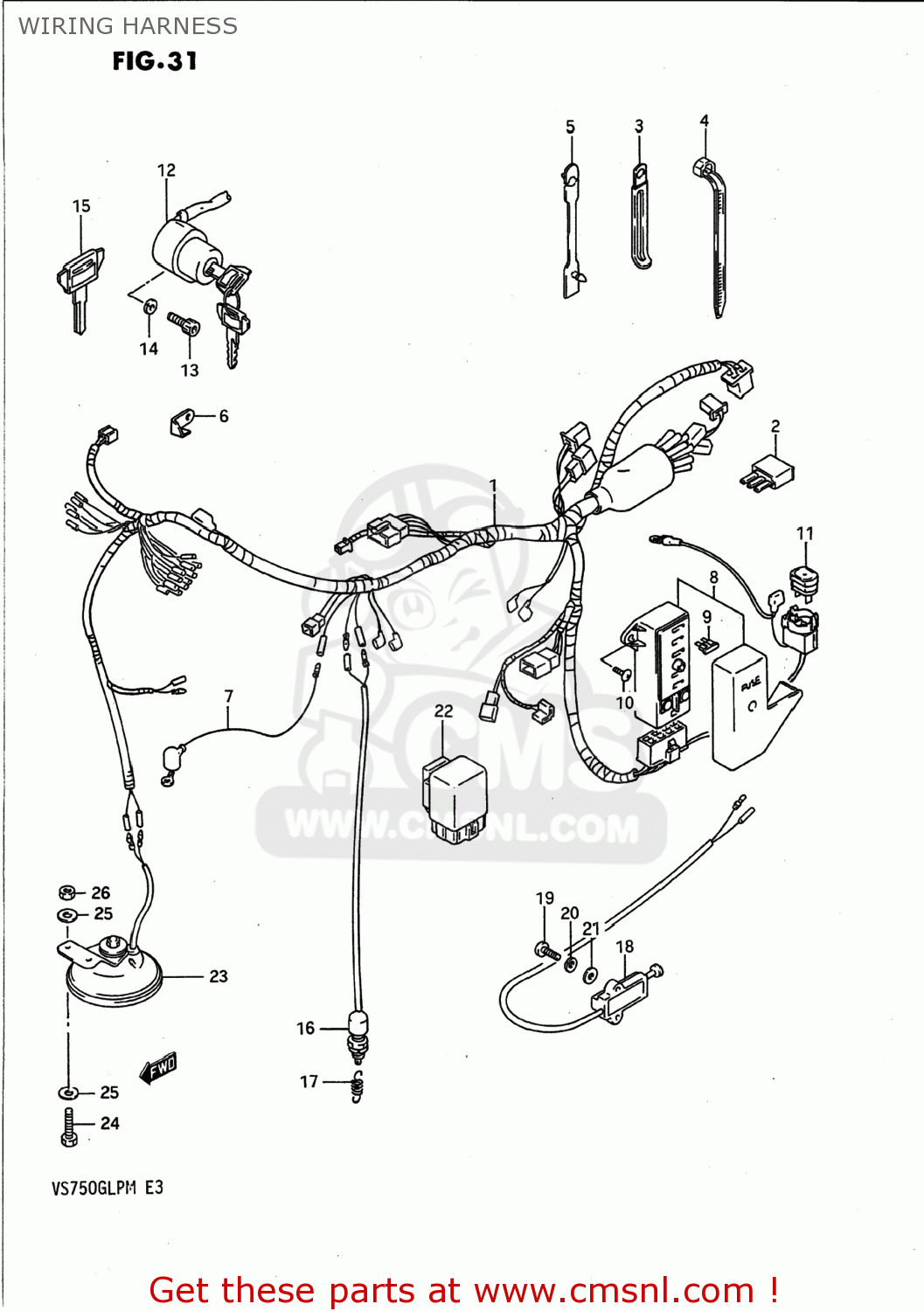

Wiring harness diagram VS700GLP INTRUDER 1988 (J) USA (E03)
WIRING HARNESS VS700GLP INTRUDER 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661039A40
ref: 1
HARNESS,WIRING
€ 119.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3-1
0940405401
ref: 3-1
09404-06429
CLAMP
€ 2.50
3-2
0940406401
ref: 3-2
09404-06432
CLAMP L:35
€ 2.50
3-3
0940406402
ref: 3-3
09404-06432
CLAMP
€ 2.50
3-4
0940406417
ref: 3-4
09404-06433
CLAMP
€ 3.00
3-5
0940406403
ref: 3-5
09404-06432
CLAMP
€ 2.50
3-6
0940406415
ref: 3-6
09404-06433
CLAMP
€ 3.00
4-1
0940714403
ref: 4-1
CLAMP(L:125)
€ 2.50
4-2
0940718402
ref: 4-2
CLAMP(L:165)
€ 2.50
5
0940705403
ref: 5
CLAMP,L:88
€ 1.50
6
3668738A00
ref: 6
PLATE,COUPLER HOLDER
€ 2.00
7
3685138401
ref: 7
WIRE,WATER TEMPERATURE GAUGE
€ 4.50
8
3674038A00
ref: 8
BOX ASSY,FUSE
€ 75.00
9
0948110101
ref: 9
FUSE(10A)
€ 2.50
10
0214206166
ref: 10
02142-0616A
SCREW
€ 2.50
11
3675005A00
ref: 11
BREAKER ASSY,CIRCUT
€ 36.50
12-1
3711038A01
ref: 12-1
37110-38A04
SWITCH ASSEMBLY,IGNITION
€ 74.50
12-2
3711038A02
ref: 12-2
37110-38A04
SWITCH ASSEMBLY,IGNITION
€ 74.50
13
0711005167
ref: 13
07130-05167
BOLT
€ 2.50
14
0832121057
ref: 14
08321-0105A
LOCK WASHER
€ 2.00
15-1
3714603A00
ref: 15-1
KEY,BLANK(TYPE:C)
€ 6.00
15-2
3714603A10
ref: 15-2
KEY,BLANK(TYPE:D)
€ 6.00
15-3
3714603A20
ref: 15-3
KEY,BLANK(TYPE:E)
€ 6.00
15-4
3714603A30
ref: 15-4
KEY,BLANK(TYPE:F)
€ 6.00
16
3774004A10
ref: 16
SWITCH ASSY,STOP LAMP
€ 22.00
17
0944306046
ref: 17
SPRING
€ 3.50
18-1
3784039A20
ref: 18-1
37840-39A22
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
18-2
3784039A21
ref: 18-2
37840-39A22
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
19
0211206205
ref: 19
02112-0620A
SCREW
€ 2.00
20
0832121064
ref: 20
08321-0106A
WASHER,LOCK
€ 2.00
21
0832221064
ref: 21
08322-0106B
WASHER
€ 2.00
22
3874039A00
ref: 22
38740-24X50
RELAY ASSEMBLY
€ 37.50
23
3850038A30
ref: 23
HORN ASSY
€ 87.50
24
0110706307
ref: 24
01500-06307
BOLT 6X30
€ 2.50
25
0832221067
ref: 25
08322-01067
WASHER
€ 2.00
26
0831011067
ref: 26
08310-00067
NUT 6MM
€ 2.50
