CARBURETOR (FRONT)
VS750GLEF 1987 (H) (E02)

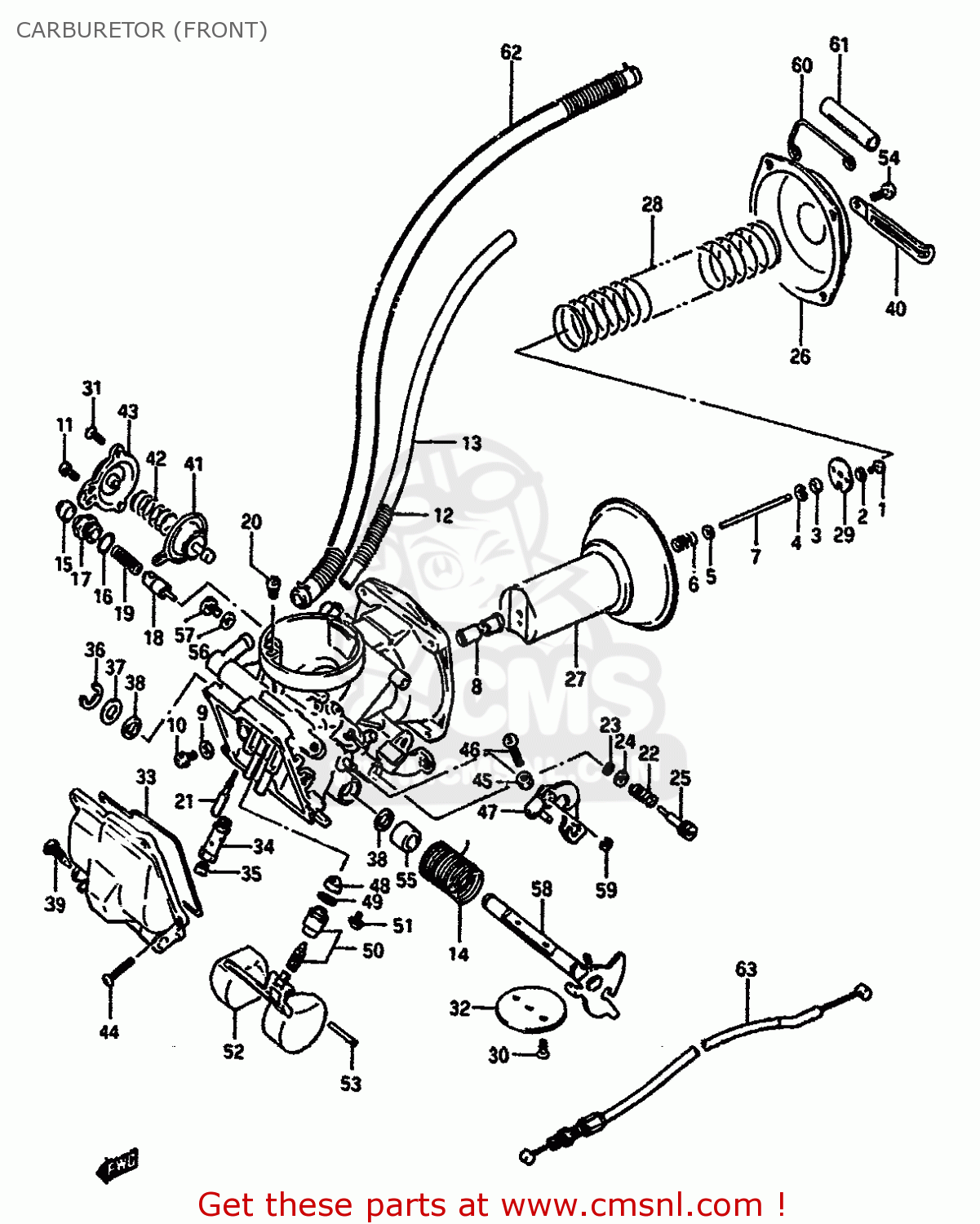

Carburetor (front) diagram VS750GLEF 1987 (H) (E02)
CARBURETOR (FRONT) VS750GLEF 1987 (H) (E02)
×
prices are in EUR
ref
part #
description
quantity
0
1321038A20
ref: 0
MODEL F
CARBURETOR ASSY,FRONT
€ 0.00
0
1321038A30
ref: 0
MODEL G
CARBURETOR ASSY,FRONT
€ 666.00
0
1321038A90
ref: 0
MODEL H/J/K/L/M
CARBURETOR,FR.
€ 666.00
0
1321039A20
ref: 0
MODEL J/K/L E18
CARBURETOR ASSY,FRONT
€ 0.00
0
1321039A30
ref: 0
MODEL L/M E22 MODEL
CARBURETOR ASSY,FRONT
€ 666.00
1
0211203066
ref: 1
SCREW
€ 2.00
2
0832121036
ref: 2
LOCK WASHER
€ 1.50
3
1338747010
ref: 3
RING
€ 7.50
4
1339410010
ref: 4
CLIP
€ 4.50
5
1338244030
ref: 5
WASHER
€ 3.50
6
1338844030
ref: 6
SPRING
€ 6.00
7-1
1338338A20
ref: 7-1
MODEL F
NEEDLE,JET
€ 12.50
7-2
1338338A30
ref: 7-2
MODEL G/H/J/K/L/M
NEEDLE,JET
€ 17.50
7-3
1338339A00
ref: 7-3
MODEL J/K/L E18
NEEDLE,JET (5032-3)
€ 0.00
8-1
0949400503
ref: 8-1
MODEL F
JET,NEEDLE (P-3)
€ 26.00
8-2
0949400516
ref: 8-2
MODEL G/H/J/K/L/M-09
JET,NEEDLE (P-2)
€ 26.50
8-3
0949400588
ref: 8-3
MODEL J/K/L E18
JET,NEEDLE(P-2)
€ 26.50
9
1333244080
ref: 9
WASHER,NEEDLE NOZZLE
€ 2.50
10
1360505A10
ref: 10
SCREW
€ 8.50
11
0211204106
ref: 11
SCREWM4X0.7X10
€ 1.00
12
1368938A00
ref: 12
SPRING
€ 8.50
13
1368438A20
ref: 13
HOSE
€ 13.00
14-1
1357338A00
ref: 14-1
MODEL F/G
SPRING
€ 0.00
14-2
1357338A01
ref: 14-2
MODEL H/J/K/L/M
SPRING,SHAFT RETURN
€ 0.00
15
1368104010
ref: 15
CAP
€ 3.00
16
1327847090
ref: 16
O RING
€ 2.00
17
1341838A00
ref: 17
HOLDER,GUIDE
€ 11.50
18
1341138400
ref: 18
PLUNGER
€ 11.50
19
1341708210
ref: 19
SPRING
€ 4.50
20-1
0949275002
ref: 20-1
MODEL F
JET,PILOT
€ 9.00
20-2
0949265005
ref: 20-2
MODEL G/H/J/K/L/M
JET,AIR(65)
€ 7.50
20-3
0949277002
ref: 20-3
MODEL J/K/L E18
JET,PILOT AIR,7
€ 13.50
21-1
0949232004
ref: 21-1
JET,PILOT(32.5)
€ 13.50
21-2
0949225007
ref: 21-2
MODEL J/K/L E18
JET,PILOT(25)
€ 8.50
22
1326847070
ref: 22
SPRING
€ 5.00
23
1329529900
ref: 23
O RING,PILOT AIR SCREW
€ 4.00
24
1329129900
ref: 24
WASHER
€ 2.00
25-1
1327947080
ref: 25-1
SCREW,PILOT AIR
€ 11.50
25-2
1327947080
ref: 25-2
MODEL L/M E22
SCREW,PILOT AIR
€ 11.50
26
1350238A00
ref: 26
COVER,DIAPHRAGM
€ 34.00
27
1350005A10
ref: 27
DIAPHRAGM,CARBURETOR
€ 178.00
28
1350305A10
ref: 28
SPRING,DIAPHRAGM
€ 12.00
29
1338937400
ref: 29
PLATE
€ 5.50
30
1360444080
ref: 30
SCREW
€ 3.50
31
1360338A00
ref: 31
SCREW
€ 2.50
32
1355138A00
ref: 32
VALVE,THROTTLE
€ 0.00
33
1325138A00
ref: 33
O RING,FLOAT CHAMBER
€ 6.50
34
1338505A11
ref: 34
HOLDER,MAIN JET
€ 14.00
35-1
0949126013
ref: 35-1
MODEL F
JET,MAIN (132.5)
€ 18.50
35-2
0949120010
ref: 35-2
MODEL G/H/J/K/L/M-09
JET
€ 7.50
35-3
0949120022
ref: 35-3
MODEL J/K/L E18
JET,MAIN,100
€ 7.50
36
1361744080
ref: 36
E RING
€ 3.50
37
1355747070
ref: 37
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
38
1355605A10
ref: 38
SEAL,THROTTLE SHAFT
€ 3.50
39
1324702340
ref: 39
PLUG,DRAIN
€ 5.50
40
0940406401
ref: 40
CLAMP L:35
€ 2.50
41
1348005A10
ref: 41
DIAPHRAGM ASSY
€ 54.50
42
1348105A10
ref: 42
SPRING
€ 5.50
43
1348438A00
ref: 43
COVER
€ 20.50
44
1360104148
ref: 44
SCREW
€ 2.50
45
1360705A10
ref: 45
NUT
€ 2.00
46
0211204306
ref: 46
SCREW
€ 2.00
47-1
1355438A00
ref: 47-1
MODEL F/G
LEVER,ASSY
€ 15.00
47-2
1355438B10
ref: 47-2
MODEL H/J/K/L/M
LEVER,ASSEMBLY
€ 38.50
48
1337684110
ref: 48
FILTER
€ 6.50
49
1337444080
ref: 49
O-RING,NEEDLE VALVE
€ 6.00
50
1337001401
ref: 50
VALVE ASSY,NEEDLE
€ 57.50
51
1360205A10
ref: 51
SCREW
€ 4.00
52
1325005A10
ref: 52
FLOAT
€ 34.00
53
1325420010
ref: 53
PIN,FLOAT
€ 3.00
54
0211205106
ref: 54
SCREW 5X10
€ 2.00
55
1357401400
ref: 55
RING,THROTTLE VALVE
€ 0.00
56
1353138A00
ref: 56
WASHER
€ 2.00
57
1360573000
ref: 57
SCREW
€ 10.50
58
1355038A00
ref: 58
SHAFT ASSEMBLY,THROTTLE
€ 0.00
59
1329849000
ref: 59
E-RING
€ 2.00
60
1367138A00
ref: 60
CLIP
€ 10.50
61
1368438A00
ref: 61
HOSE
€ 18.00
62-1
1368338A10
ref: 62-1
MODEL F/G
HOSE
€ 70.00
62-2
1368338A20
ref: 62-2
MODEL H/J/K/L/M
HOSE ASSEMBLY
€ 70.00
63
1364138A00
ref: 63
CABLE,IDLE SYNCRO
€ 16.50
