FOOTREST (MODEL H/J/K/L/M)

VS750GLEF 1987 (H) (E02)

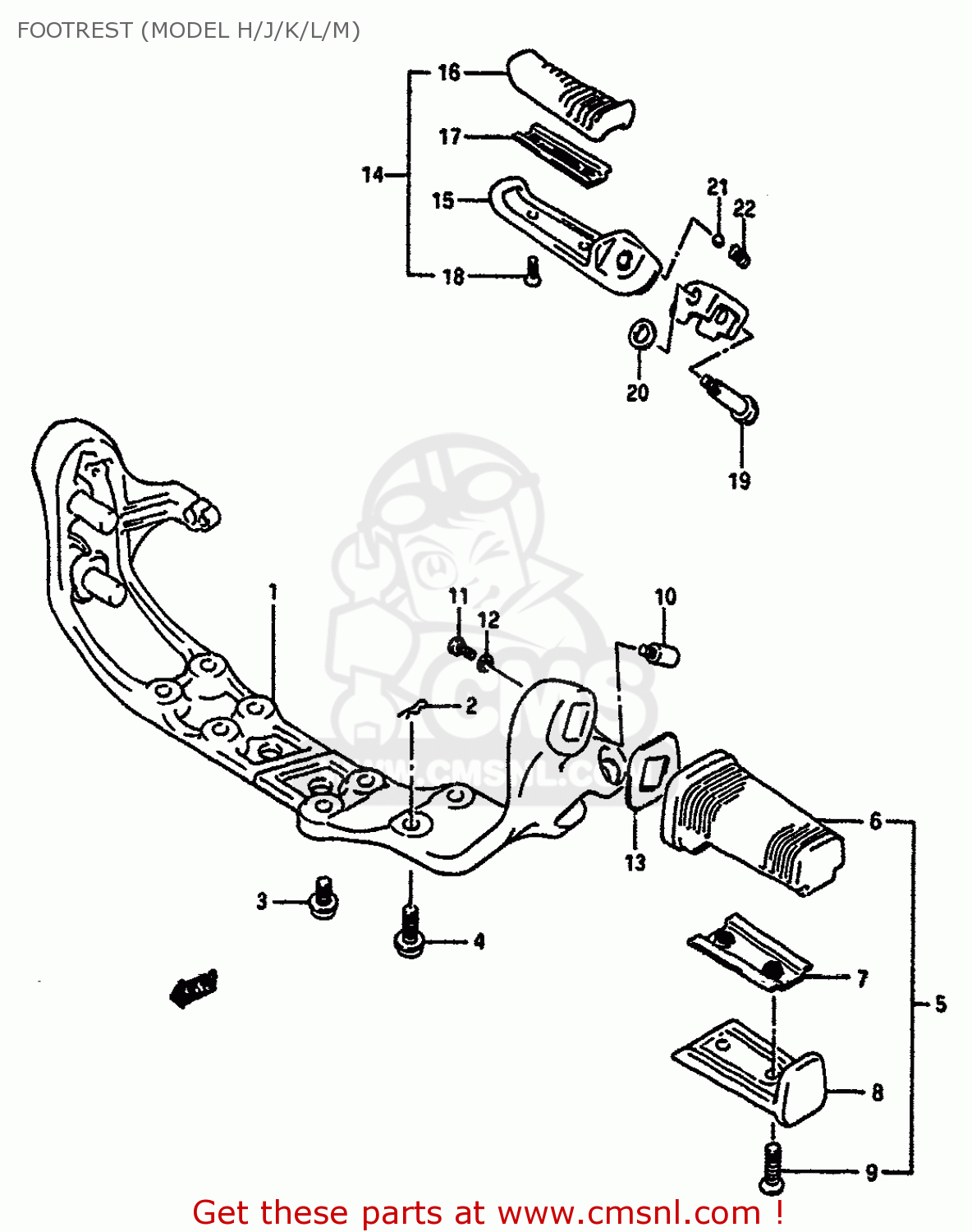

Footrest (model h/j/k/l/m) diagram VS750GLEF 1987 (H) (E02)

FOOTREST (MODEL H/J/K/L/M) VS750GLEF 1987 (H) (E02)
FOOTREST (MODEL H/J/K/L/M) VS750GLEF 1987 (H) (E02)
FOOTREST (MODEL H/J/K/L/M) VS750GLEF 1987 (H) (E02)
prices are in EUR
ref
part #
description
quantity
1-1
4351038A50
ref: 1-1
MODEL H
BRACKET,FRONT FOOTREST
€ 0.00
1-2
4351038A40
ref: 1-2
MODEL H E4,E17,E21,E
BRACKET COMP,FRONT FOOTREST
€ 968.00
1-3
4351038A41
ref: 1-3
MODEL J/K/L/M
BRACKET COMP,FRONT FOOTREST
€ 968.00
2-1
0938508002
ref: 2-1
MODEL H
PIN,SNAP
0938508002
€ 1.50
2-2
0938508005
ref: 2-2
MODEL J/K/L/M
SNAP
0938508005
€ 2.00
3
0712008208
ref: 3
BOLT
€ 3.00
4
0910608064
ref: 4
BOLT(8X25)
0910608064
€ 4.50
5-1
4350138B10
ref: 5-1
FOOTREST ASSEMBLY,FRONT,RIGHT
4350138B10
€ 97.00
5-2
4350238B10
ref: 5-2
FOOTREST ASSEMBLY,FRONT,LEFT
4350238B10
€ 97.00
6
4355138B00
ref: 6
RUBBER,FR FOOTREST
4355138B00
€ 12.50
7
4358038B10
ref: 7
PLATE,RUBBER STOPPER
4358038B10
€ 8.50
8
4358538B10
ref: 8
COVER,FRONT FOOTREST
4358538B10
€ 45.50
9-1
0213205207
ref: 9-1
MODEL H
SCREW
€ 2.00
9-2
0912705018
ref: 9-2
MODEL J/K/L/M
SCREW(5X20)
0912705018
€ 2.50
10
4364138B00
ref: 10
BOLT,FRONT FOOTREST
4364138B00
€ 4.50
11
0110705127
ref: 11
BOLT 5X12
€ 2.00
12
0832121057
ref: 12
LOCK WASHER
0832121057
€ 2.00
13
4354638B00
ref: 13
WASHER,FRONT FOOTREST
4354638B00
€ 5.00
14-1
4360038A00
ref: 14-1
MODEL H
FOOTREST ASSEMBLY,REAR
€ 39.50
14-2
4360038A01
ref: 14-2
MODEL J/K/L/M
FOOTREST ASSY RH
4360038A01
€ 39.50
14-3
4370038A00
ref: 14-3
MODEL H
FOOTREST ASSEMBLY,PILLION
€ 35.50
14-4
4370038A01
ref: 14-4
MODEL J/K/L/M
FOOTREST ASSY PILLION LH
4370038A01
€ 35.50
15-1
4361038A00
ref: 15-1
BAR COMP,PILLION FOOTREST
4361038A00
€ 39.50
15-2
4371038A00
ref: 15-2
BAR COMP,PILLION FOOTREST
4371038A00
€ 35.50
16
4361238A00
ref: 16
RUBBER,PILLION FOOTREST
4361238A00
€ 12.00
17
4363238A00
ref: 17
PLATE,RUBBER STOPPER
4363238A00
€ 4.00
18-1
0213205167
ref: 18-1
MODEL H
SCREW 5X16
0213205167
€ 2.00
18-2
0912705017
ref: 18-2
MODEL J/K/L/M
SCREW(5X16)
0912705017
€ 2.00
19
0911106050
ref: 19
BOLT(6X34.5)
0911106050
€ 5.00
20
0822108164
ref: 20
SHIM
0822108164
€ 1.50
21
0611107004
ref: 21
BALL
0611107004
€ 1.50
22
0944005031
ref: 22
SPRING
0944005031
€ 1.50
