FOOTREST (MODEL F/G)
VS750GLEF 1987 (H) (E02)

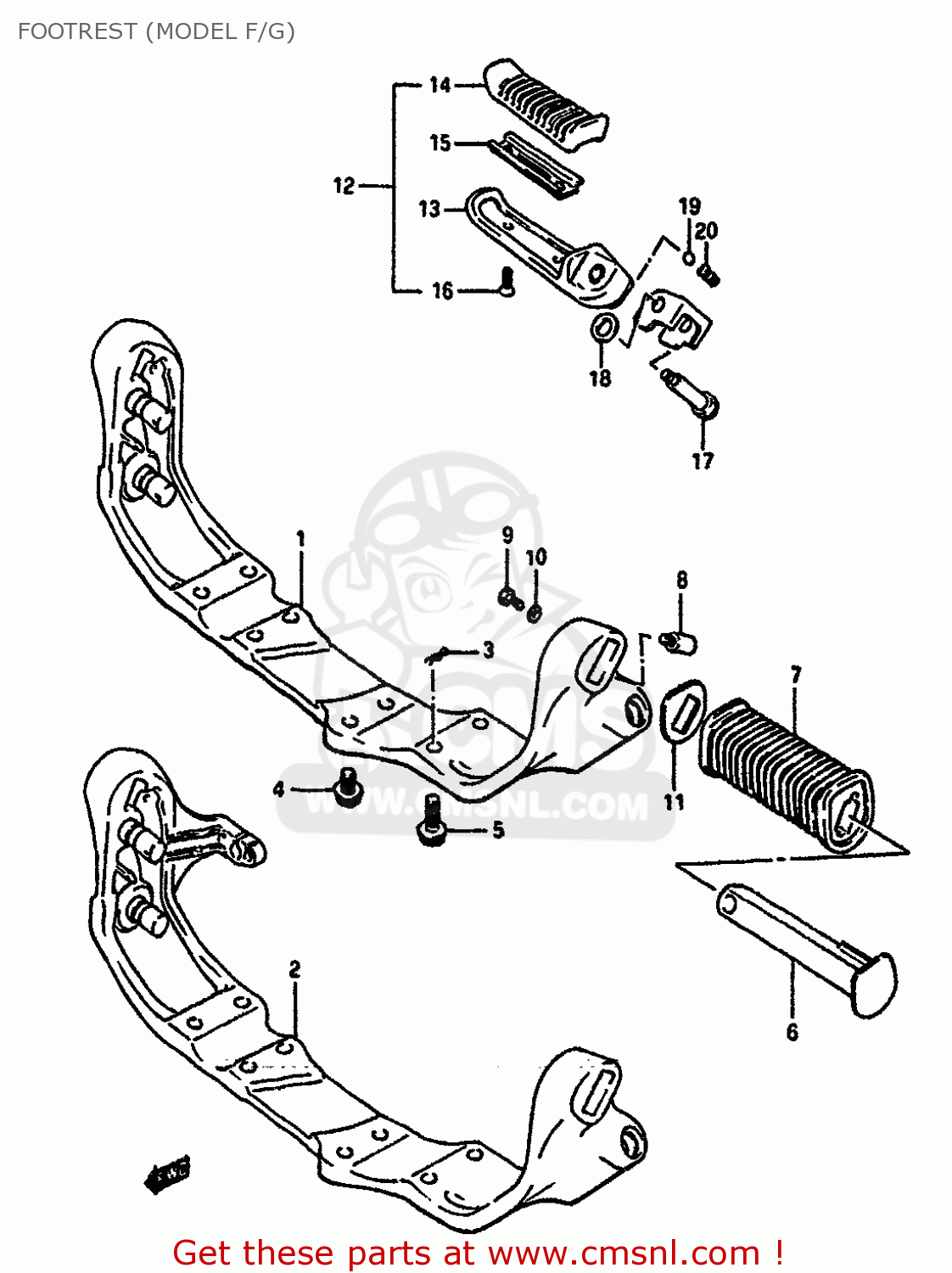

Footrest (model f/g) diagram VS750GLEF 1987 (H) (E02)
FOOTREST (MODEL F/G) VS750GLEF 1987 (H) (E02)
×
prices are in EUR
ref
part #
description
quantity
1
4351038A00
ref: 1
MODEL F/G
BRACKET,FRONT FOOTREST
€ 394.50
2-1
4351038A30
ref: 2-1
MODEL G
BRACKET,FRONT FOOTREST
€ 0.00
2-2
4351038A20
ref: 2-2
MODEL G,FOR E4,E17,E
BRACKET COMP,FRONT FOOTREST
€ 410.50
3
0938508002
ref: 3
PIN,SNAP
€ 1.50
4
0712008208
ref: 4
BOLT
€ 3.00
5
0910608064
ref: 5
BOLT(8X25)
€ 4.50
6-1
4353038A00
ref: 6-1
BAR,FR FOOTREST,R
€ 38.00
6-2
4354038A00
ref: 6-2
BAR,FR FOOTREST,L
€ 30.00
7
4355138A00
ref: 7
RUBBER,FR FOOTREST
€ 9.00
8
4364138A00
ref: 8
BOLT,FRONT FOOTREST RUBBER
€ 5.00
9
0110705127
ref: 9
BOLT 5X12
€ 2.00
10
0832121057
ref: 10
LOCK WASHER
€ 2.00
11-1
4357038A00
ref: 11-1
WASHER,FR FOOTREST,R
€ 5.00
11-2
4358038A00
ref: 11-2
WASHER,FR FOOTREST,L
€ 8.50
12-1
4360038A00
ref: 12-1
FOOTREST ASSEMBLY,REAR
€ 39.50
12-2
4370038A00
ref: 12-2
FOOTREST ASSEMBLY,PILLION
€ 35.50
13-1
4361038A00
ref: 13-1
BAR COMP,PILLION FOOTREST
€ 39.50
13-2
4371038A00
ref: 13-2
BAR COMP,PILLION FOOTREST
€ 35.50
14
4361238A00
ref: 14
RUBBER,PILLION FOOTREST
€ 12.00
15
4363238A00
ref: 15
PLATE,RUBBER STOPPER
€ 4.00
16
0213205167
ref: 16
SCREW 5X16
€ 2.00
17
0911106050
ref: 17
BOLT(6X34.5)
€ 5.00
18
0822108164
ref: 18
SHIM
€ 1.50
19
0611107004
ref: 19
BALL
€ 1.50
20
0944005031
ref: 20
SPRING
€ 1.50
