REAR FENDER
VS750GLEF 1987 (H) (E02)

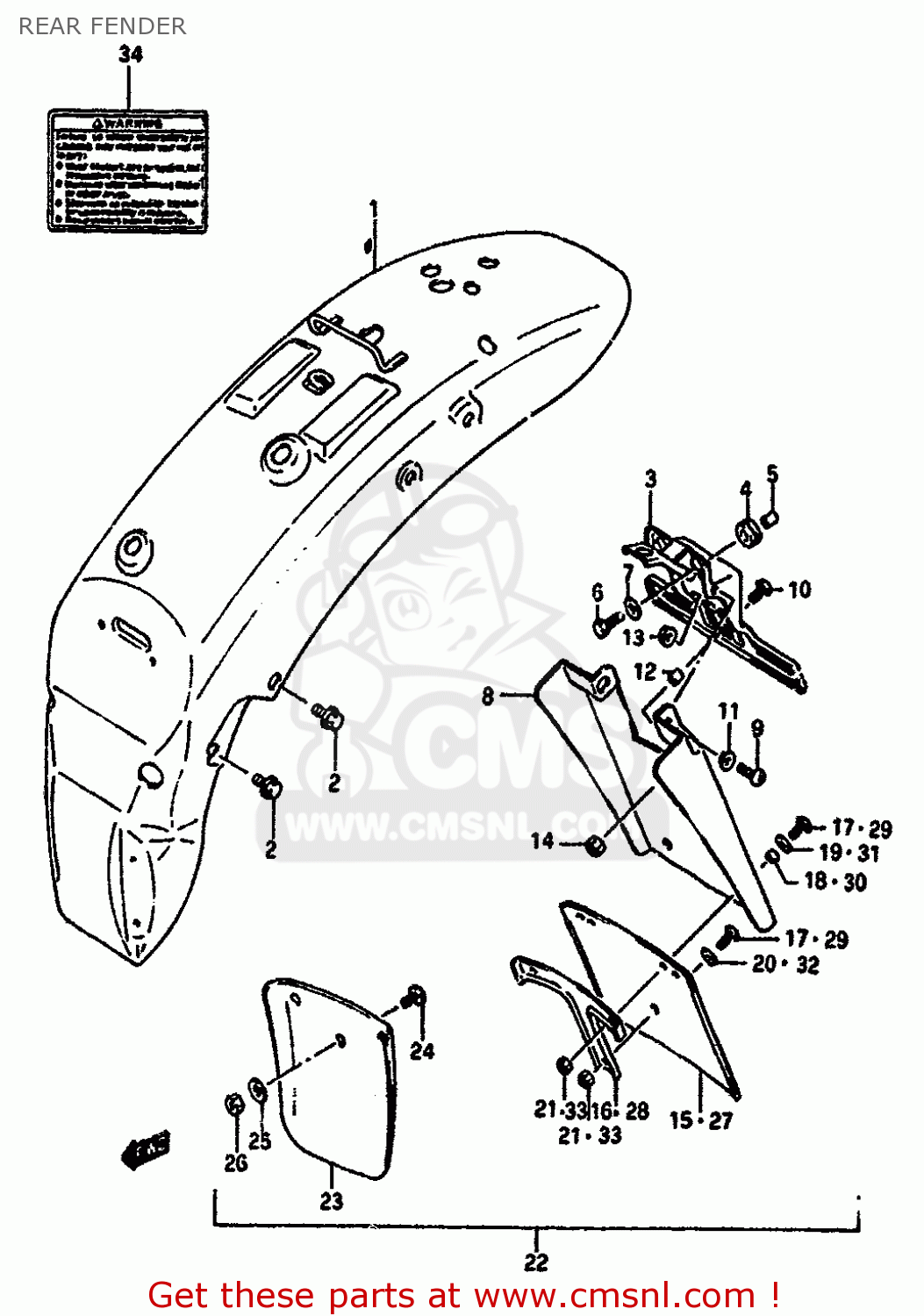

Rear fender diagram VS750GLEF 1987 (H) (E02)
REAR FENDER VS750GLEF 1987 (H) (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311038A0024D
ref: 1-1
MODEL F/G
FENDER,REAR
€ 194.50
1-2
6311038A0013Z
ref: 1-2
MODEL G/H
FENDER,REAR
€ 194.50
1-3
6311038A0024V
ref: 1-3
MODEL G/H
FENDER,REAR
€ 194.50
1-4
6311038A0033D
ref: 1-4
MODEL H
FENDER,REAR
€ 194.50
1-5
6311038A0020U
ref: 1-5
MODEL J/K/L
FENDER COMP,REAR
€ 196.50
1-6
6311038A0033J
ref: 1-6
MODEL J/K/L
FENDER,RR
€ 249.00
1-7
6311038A0014W
ref: 1-7
MODEL M
FENDER COMP,REAR
€ 249.00
1-8
6311038A0019A
ref: 1-8
MODEL M
FENDER,RR
€ 197.50
2
0151706106
ref: 2
BOLT
€ 2.50
3
3592038A00
ref: 3
E2,E4,E15,E16,E17,E1
BRACKET,LICENSE LAMP
€ 46.00
4
3576538A30
ref: 4
E2,E4,E15,E16,E17,E1
CUSHION
€ 4.00
5
3576638A00
ref: 5
E2,E4,E15,E16,E17,E1
SPACER
€ 3.00
6-1
0110706206
ref: 6-1
MODEL G/H/J/K E2,E4,
BOLT,M6X1X20
€ 2.00
6-2
0911606083
ref: 6-2
MODEL L/M E2,E4,E16,
BOLT
€ 2.00
7
0916006020
ref: 7
MODEL G/H/J/K E2,E4,
WASHER
€ 2.00
8-1
6331138A00
ref: 8-1
E16,E17,E22
EXTENSION,REAR
€ 23.50
8-2
6331138A10
ref: 8-2
E15,E18
EXTENSION, REAR FENDER
€ 17.50
9
0214206164
ref: 9
E15,E16,E17,E18,E22
SCREW
€ 2.50
10
0211206167
ref: 10
E15,E16,E17,E18,E22
SCREW
€ 2.50
11
0916906037
ref: 11
E15,E16,E17,E18,E22
WASHER
€ 6.50
12
0918006092
ref: 12
E15,E16,E17,E18,E22
SPACER(6.2X8.3X6.1)
€ 4.00
13
0831626068
ref: 13
E15,E16,E17,E18,E22
NUT 6MM
€ 2.00
14
0831931065
ref: 14
E15,E16,E17,E18,E22
NUT
€ 2.50
15
6333243520
ref: 15
E15,E18
MUD FLAP, REAR FENDER
€ 12.50
16
6331238A00
ref: 16
E15,E18
PLATE, MUD FLAP
€ 0.00
17
0214205124
ref: 17
E15,E18
SCREW, FRONT & REAR
€ 1.50
18
0918005015
ref: 18
E15,E18
SPACER (5.5X8X4)
€ 3.00
19
0832221055
ref: 19
E15,E18
WASHER,5MM
€ 2.50
20
0916005031
ref: 20
E15,E18
WASHER
€ 1.50
21
0831921055
ref: 21
E15,E18
NUT 8MM
€ 1.50
22
5312038A30
ref: 22
E77 OPT
EXTENSION & MUD FLAP SET
€ 0.00
23
5311838A30
ref: 23
E77 OPT
EXTENSION
€ 12.00
24
0214205084
ref: 24
E77 OPT
SCREW
€ 2.00
25
0832221055
ref: 25
E77 OPT
WASHER,5MM
€ 2.50
26
0831022055
ref: 26
E77 OPT
NUT 5MM
€ 2.00
27
6333243520
ref: 27
E77 OPT
MUD FLAP, REAR FENDER
€ 12.50
28
6331238A00
ref: 28
E77 OPT
PLATE, MUD FLAP
€ 0.00
29
0214205124
ref: 29
E77 OPT
SCREW, FRONT & REAR
€ 1.50
30
0918005015
ref: 30
E77 OPT
SPACER (5.5X8X4)
€ 3.00
31
0832221055
ref: 31
E77 OPT
WASHER,5MM
€ 2.50
32
0916005031
ref: 32
E77 OPT
WASHER
€ 1.50
33
0831921055
ref: 33
E77 OPT
NUT 8MM
€ 1.50
34-1
6831940C00
ref: 34-1
LABEL
€ 8.00
34-2
6831940C20
ref: 34-2
E22,E39
LABEL, WARNING SAFETY
€ 8.00
34-3
6831940C30
ref: 34-3
E4,E21
LABEL, WARNING SAFETY
€ 8.50
34-4
6831940C40
ref: 34-4
E34
LABEL, WARNING SAFETY
€ 8.00
