CYLINDER

VS750GLEF 1987 (H) (E02)

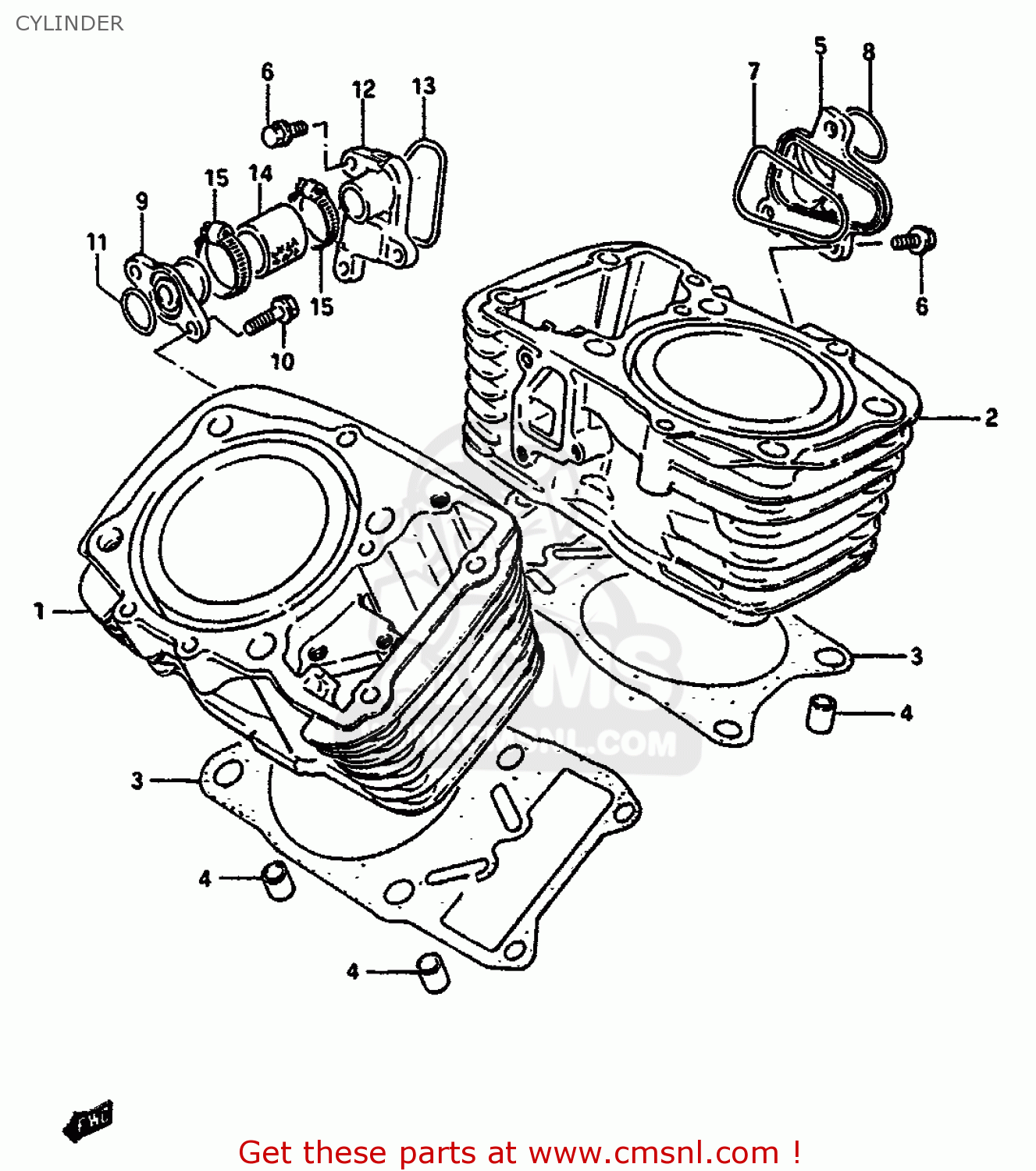

Cylinder diagram VS750GLEF 1987 (H) (E02)

CYLINDER VS750GLEF 1987 (H) (E02)
CYLINDER VS750GLEF 1987 (H) (E02)
CYLINDER VS750GLEF 1987 (H) (E02)
prices are in EUR
ref
part #
description
quantity
1
1121038A12
ref: 1
CYLINDER,FR
€ 503.00
2
1122038A02
ref: 2
CYLINDER,REAR
€ 439.00
3-1
1124138A10
ref: 3-1
GASKET,CYLINDER (MCA)
1124138A10
€ 16.50
3-2
1124138A10H17
ref: 3-2
E17,E77 (SWEDEN), E1
GASKET,CYLINDER (NA)
€ 13.50
4
0920613001
ref: 4
PIN
0920613001
€ 2.50
5
1123738A01
ref: 5
CHAMBER,WATER,INLET
€ 28.00
6
0154706207
ref: 6
BOLT
0154706207
€ 2.50
7
1124738A00
ref: 7
O RING,INLET WATER CHAMBER
1124738A00
€ 3.00
8
0928024007
ref: 8
O RING(D:2.3,ID:24.4)
0928024007
€ 2.00
9
1123538A00
ref: 9
UNION,WATER INLET
€ 16.00
10
0154706167
ref: 10
BOLT
0154706167
€ 2.00
11
0928016005
ref: 11
O RING(D:2.4,ID:15.8)
0928016005
€ 1.50
12
1123638A01
ref: 12
CHAMBER,WATER,OUTLET
€ 26.50
13
1124638A00
ref: 13
O RING,OUTLET WATER CHAMBER
1124638A00
€ 4.50
14
1785338A00
ref: 14
HOSE,RADIATOR
€ 17.50
15
0940225502
ref: 15
CLAMP
0940225502
€ 8.50
