TURN SIGNAL LAMP

VS750GLEF 1987 (H) (E02)

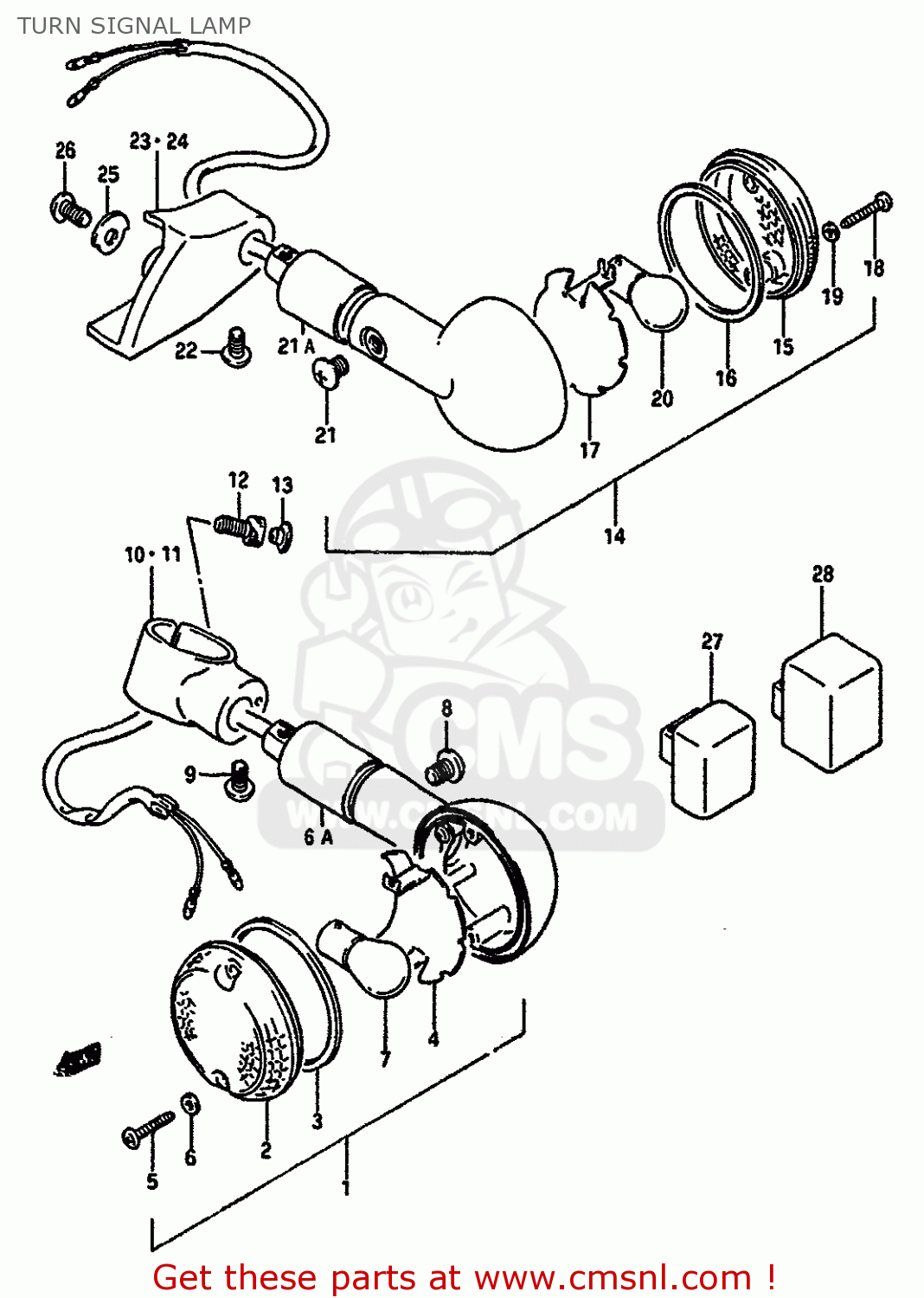

Turn signal lamp diagram VS750GLEF 1987 (H) (E02)

TURN SIGNAL LAMP VS750GLEF 1987 (H) (E02)
TURN SIGNAL LAMP VS750GLEF 1987 (H) (E02)
TURN SIGNAL LAMP VS750GLEF 1987 (H) (E02)
prices are in EUR
ref
part #
description
quantity
1-1
3560138A02
ref: 1-1
MODEL F
LAMP ASSY,FR TURN SIGNAL
3560138A02
€ 91.00
1-2
3560138A22
ref: 1-2
MODEL G/H/J/K/L/M
LAMP ASSY,FR TURN SIGNAL
3560138A22
€ 93.50
2
3561238A00
ref: 2
LENS
3561238A00
€ 10.50
3
3561338A00
ref: 3
GASKET (NAS)
3561338A00
€ 11.50
4-1
3562438A00
ref: 4-1
MODEL F
REFLECTOR
3562438A00
€ 15.00
4-2
3562438A20
ref: 4-2
MODEL G/H/J/K/L/M
REFLECTOR
3562438A20
€ 71.00
5
0321104256
ref: 5
SCREW ,4X25
0321104256
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
6A
3561938A01
ref: 6A
STAY,TURNSIGNAL LAMP
3561938A01
€ 35.50
7-1
0947112006
ref: 7-1
MODEL F
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
7-2
0947112045
ref: 7-2
MODEL G/H/J/K/L/M
BULB(12V21W)
0947112045
€ 5.00
8
3562338A01
ref: 8
SCREW
3562338A01
€ 5.50
9
0214206108
ref: 9
SCREW
0214206108
€ 2.00
10-1
3567138A00
ref: 10-1
MODEL F/G/H
BRACKET,FRONT TURN SIGNAL
3567138A00
€ 65.50
10-2
3567139A00
ref: 10-2
MODEL J/K/L/M
BRACKET,FR TURNSIGNAL LAMP,R
3567139A00
€ 51.50
11-1
3568138A00
ref: 11-1
MODEL F/G/H
BRACKET,FRONT TURN SIGNAL
3568138A00
€ 62.00
11-2
3568138A00
ref: 11-2
MODEL J/K/L/M
BRACKET,FRONT TURN SIGNAL
3568138A00
€ 62.00
12
0711006167
ref: 12
BOLT
€ 3.00
13
0925005008
ref: 13
CAP(OD:10)
0925005008
€ 5.00
14-1
3560338A02
ref: 14-1
MODEL F
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 105.00
14-2
3560338A22
ref: 14-2
MODEL G/H/J/K/L/M
LAMP ASSY,RR TURNSIGNAL,R
3560338A22
€ 98.00
14-3
3560339A00
ref: 14-3
E1,E24
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 105.00
14-4
3560439A00
ref: 14-4
E1,E24
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 105.00
15-1
3561238A00
ref: 15-1
MODEL F
LENS
3561238A00
€ 10.50
15-2
3561238A01
ref: 15-2
E1,E24
LENS
3561238A01
€ 10.50
15-3
3565238A20
ref: 15-3
MODEL G/H/J/K/L/M
LENS
3565238A20
€ 16.50
16
3561338A00
ref: 16
GASKET (NAS)
3561338A00
€ 11.50
17-1
3562438A00
ref: 17-1
MODEL F
REFLECTOR
3562438A00
€ 15.00
17-2
3565438A20
ref: 17-2
MODEL G/H/J/K/L/M
REFLECTOR
3565438A20
€ 83.50
17-3
3562439A00
ref: 17-3
E1,E24
REFRECTOR
€ 0.00
18
0321104256
ref: 18
SCREW ,4X25
0321104256
€ 2.00
19
3562743010
ref: 19
GASKET (NAS)
3562743010
€ 2.00
20-1
0947112006
ref: 20-1
MODEL F
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
20-2
0947112045
ref: 20-2
MODEL G/H/J/K/L/M
BULB(12V21W)
0947112045
€ 5.00
20-3
0947112056
ref: 20-3
E1,E24
BULB 12V 21W
0947112056
€ 5.00
21
3562338A01
ref: 21
SCREW
3562338A01
€ 5.50
21A
3561938A01
ref: 21A
STAY,TURNSIGNAL LAMP
3561938A01
€ 35.50
22
0214206108
ref: 22
SCREW
0214206108
€ 2.00
23
3562138A21
ref: 23
E16,E18,E22,E39,E77
BRACKET,RR TUR
€ 26.00
24
3564138A21
ref: 24
E16,E18,E22,E39,E77
BRACKET,RR TUR
3564138A21
€ 31.00
25
3562938A20
ref: 25
E16,E18,E22,E39,E77
WASHER,RR TURNSIGNAL BRACKET
3562938A20
€ 1.50
26
0214206127
ref: 26
E16,E18,E22,E39,E77
SCREW 6X12
0214206127
€ 1.50
27
3861031310
ref: 27
MODEL F/K/L/M,MODEL
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
28
3861045091
ref: 28
MODEL G/H E2 MODEL G
RELAY ASSY,TUR
€ 67.50
