FRAME HANDLE GRIP

VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

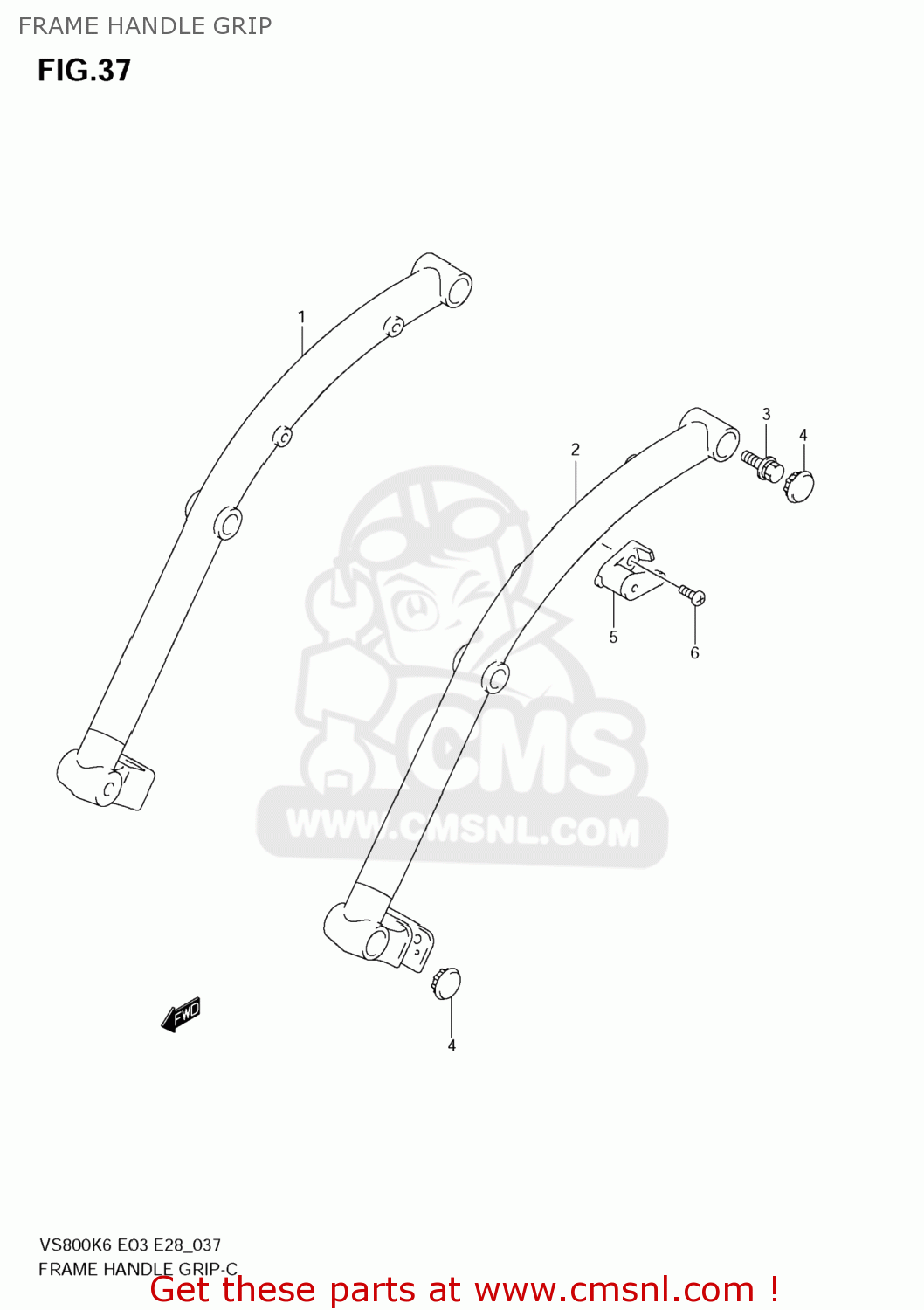

Frame handle grip diagram VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

FRAME HANDLE GRIP VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

FRAME HANDLE GRIP VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

4161038A20
ref: 1

GRIP,FRAME HANDLE RH

€ 243.50

2

4162038A20
ref: 2

GRIP,FRAME HANDLE LH

€ 308.00

3

015800820B
ref: 3

BOLT

€ 2.50

4

9567224A00
ref: 4

CAP,FRAME HANDLE GRIP

€ 5.00

5

9570038821
ref: 5

LOCK SET,HELMET

€ 54.00

6

0211205127
ref: 6

SCREW

€ 2.50
