TURN SIGNAL LAMP

VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

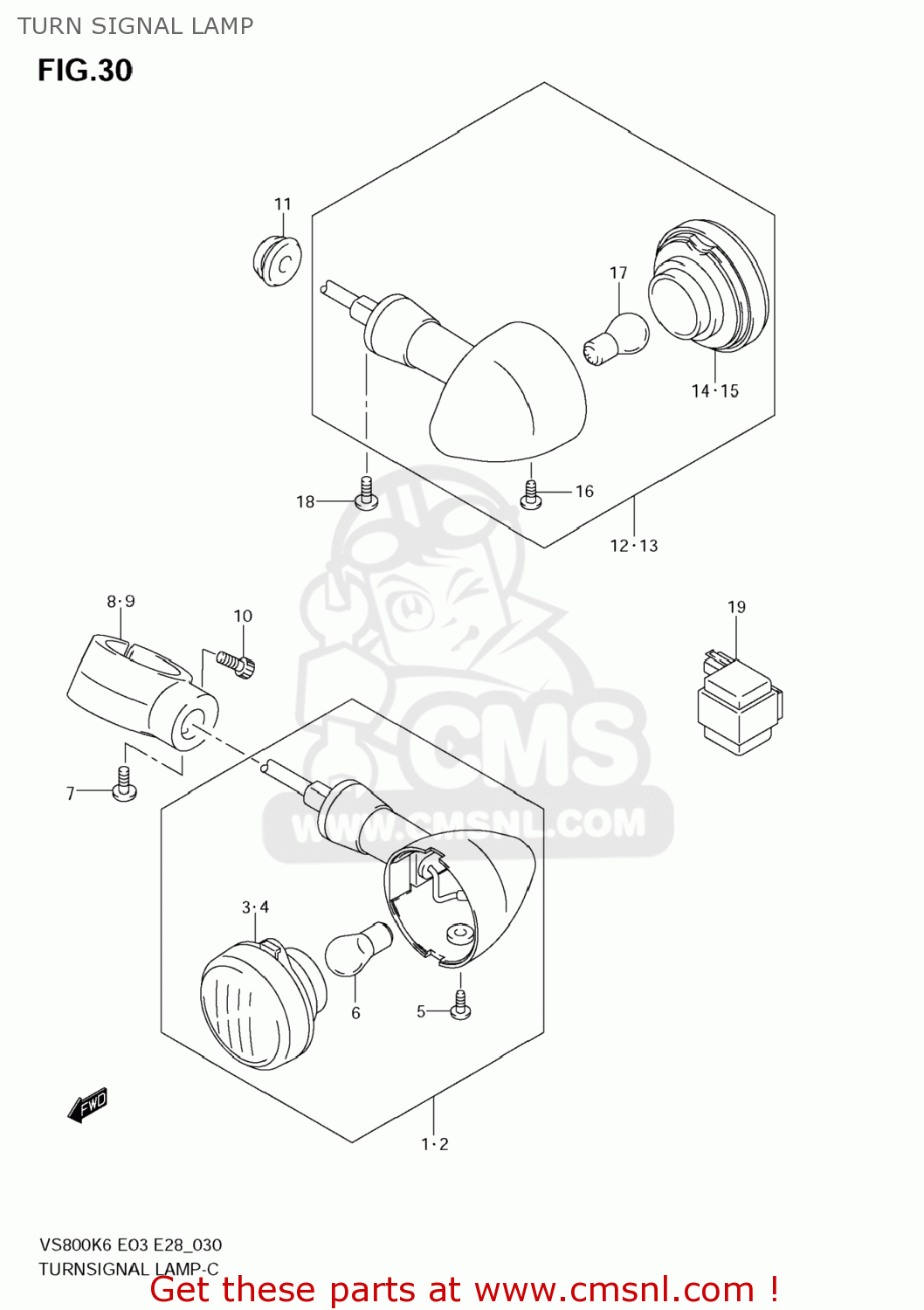

Turn signal lamp diagram VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

3560138AC0
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 50.00

3560238AC0
ref: 2

LAMP ASSY,FR TURN SIGNAL,L

€ 63.50

3561038AA0
ref: 3

LENS

€ 19.50

3563038AA0
ref: 4

LENS

€ 19.50

3562338AA0
ref: 5

SCREW(4X10)

€ 4.00

0947112083
ref: 6
09471-12128

BULB(12V21/5W)

€ 6.00

0214206107
ref: 7

SCREW

€ 2.00

3567139A00
ref: 8

BRACKET,FR TURNSIGNAL LAMP,R

€ 51.50

3568139A00
ref: 9

BRACKET,FR TURNSIGNAL LAMP,L

€ 51.50

0713006167
ref: 10

BOLT

€ 3.00

0930805005
ref: 11

GROMMET

€ 3.00

3560338AA0
ref: 12

LAMP ASSY,RR TURNSIGNAL,R

€ 83.50

3560438AA0
ref: 13

LAMP ASSY,RR TURNSIGNAL,L

€ 75.50

3563038AE1
ref: 14

LENS

€ 19.50

3561038AE1
ref: 15

LENS

€ 19.50

3562338AA0
ref: 16

SCREW(4X10)

€ 4.00

0947112045
ref: 17

BULB(12V21W)

€ 5.00

0214206107
ref: 18

SCREW

€ 2.00

3861026E00
ref: 19

RELAY ASSY

€ 47.00
