STARTER CLUTCH

VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

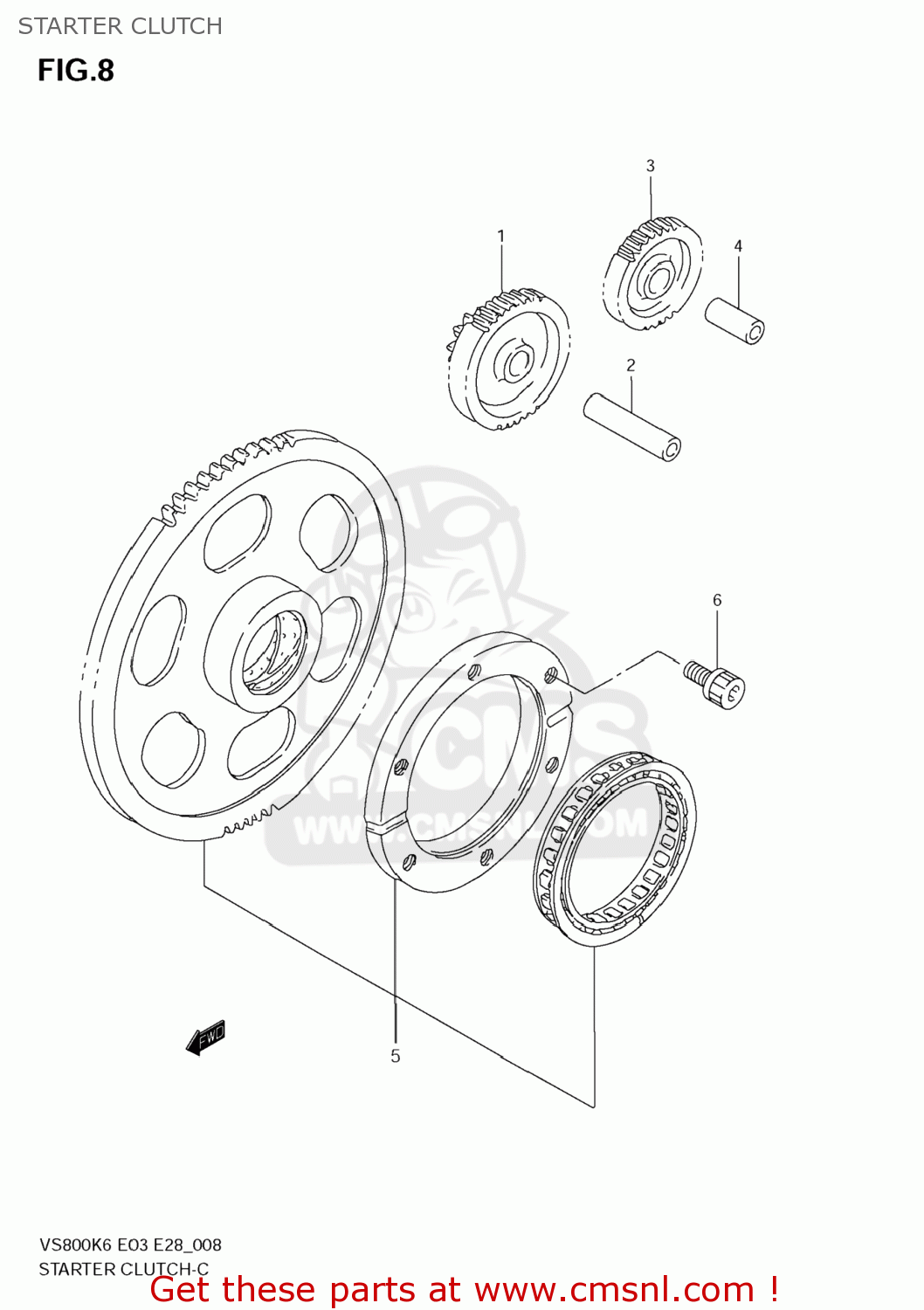

Starter clutch diagram VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

STARTER CLUTCH VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

STARTER CLUTCH VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

1261138A01
ref: 1

GEAR,STARTER IDLE NO.1

€ 57.50

2

0920210008
ref: 2

PIN,10X43

€ 9.00

3

1261138A11
ref: 3

GEAR,STARTER IDLE NO.2

€ 39.50

4

0920210006
ref: 4

PIN

€ 6.50

5

1260038832
ref: 5

CLUTCH SET,STARTER

€ 307.00

6

0910608095
ref: 6

BOLT(8X16)

€ 2.50
