HANDLE LEVER

VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

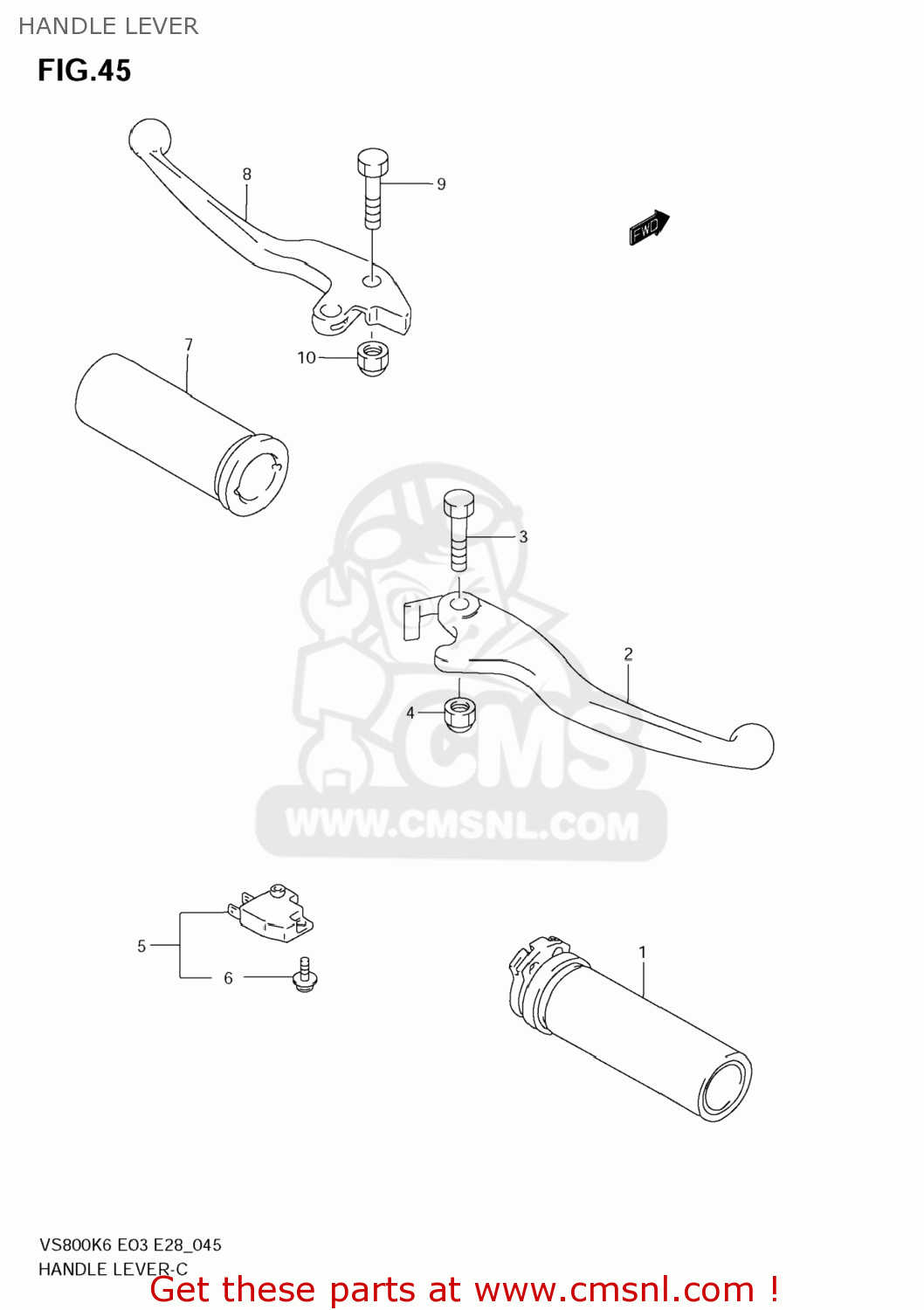

Handle lever diagram VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

HANDLE LEVER VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

HANDLE LEVER VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

5711026D00
ref: 1

GRIP,THROTTLE

€ 45.00

2

5742024B01
ref: 2

LEVER,BRAKE

€ 53.50

3

5743138A10
ref: 3

BOLT,LEVER SET

€ 14.50

4

083192106A
ref: 4

NUT

€ 2.00

5

5746017C11
ref: 5
57460-14J01

SWITCH ASSY,ST

€ 32.50

6

5746517C00
ref: 6

SCREW

€ 1.50

7

5721026D00
ref: 7

GRIP,L

€ 21.50

8

5762138A02
ref: 8

LEVER,CLUTCH (SILVER)

€ 31.50

9

5743138A10
ref: 9

BOLT,LEVER SET

€ 14.50

10

083192106A
ref: 10

NUT

€ 2.00
